CASSIOPEA 50<br>RGB Mix

CASSIOPEA

70.1050/70.1051/70.1052/70.1053

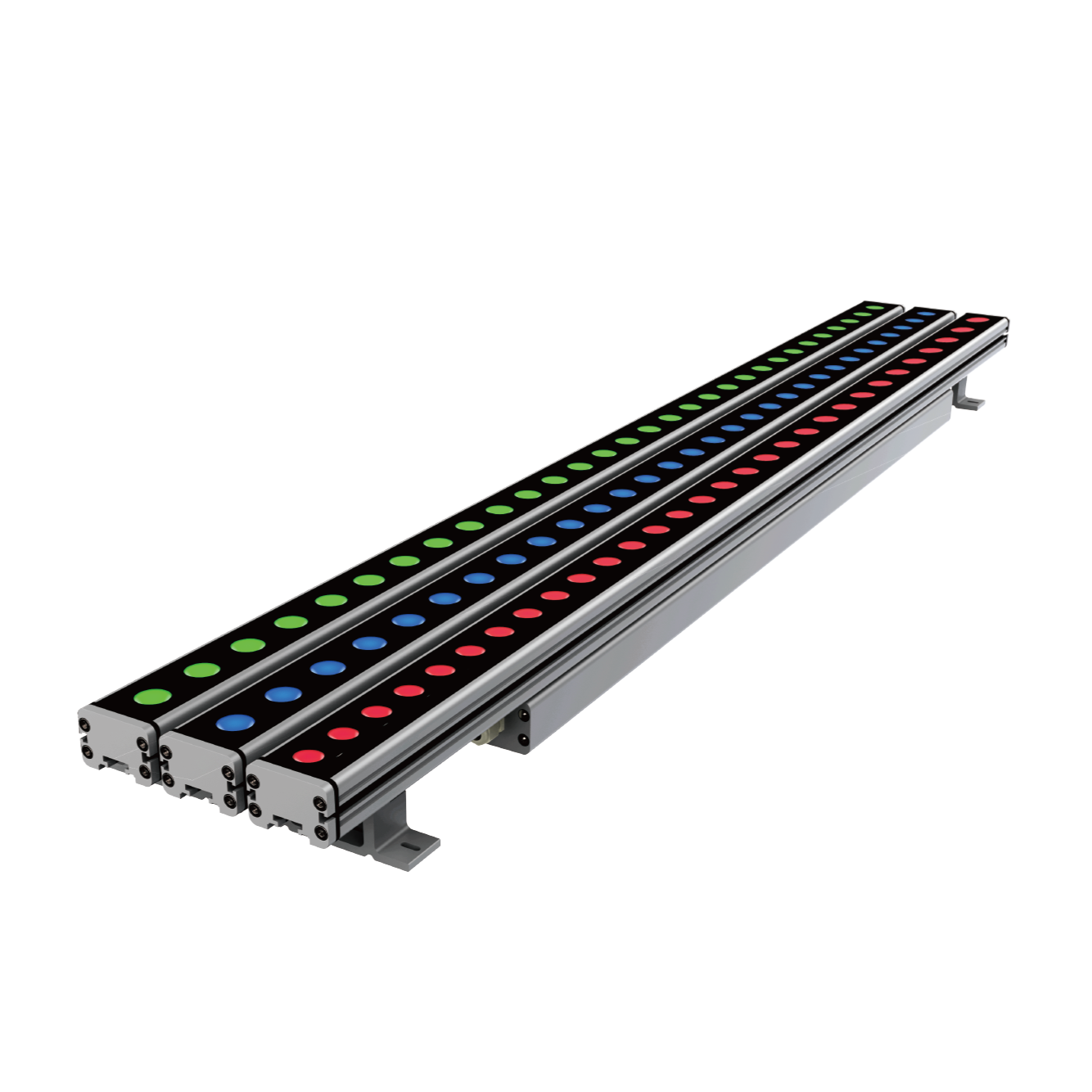

CASSIOPEA 50-RGB Mix

The Cassiopea family includes a group of wall washers for outdoor spaces. They have a body of light aluminum with powder coating and a pre-treatment for outdoor use, clear glass, and a silicon rubber gasket. They have an IP66 rating and employ the newest generation of light sources, thus achieving a low heat resistance and high lighting efficiency. They are available in a variely of color temperatures and different body colors.

Technical Drawing

product data

Fixture Power
15W/30W/45W/60W
Driving Current
/
Lumen Output
555lm/1110lm
1665lm/2220lm
Fixture Efficiency
37.0lm/w
CRI
90
Color Temperature
RGB

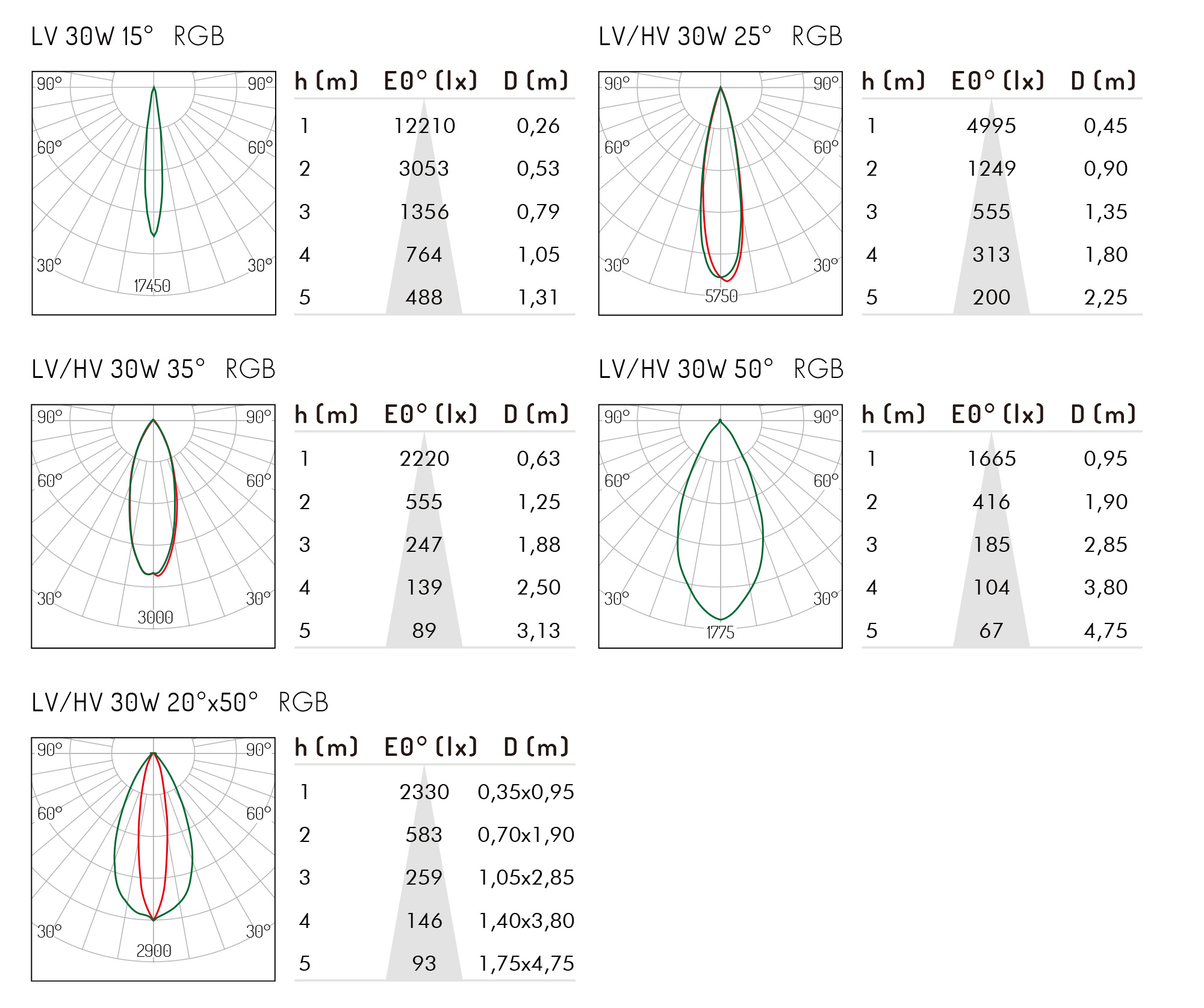

LIGHT DISTRIBUTION

Beam Angle
15°//25°/35°
50°/20°*50°
Source Type
Citizen COB LED
Control Method
DMX512
MacAdam Ellipse
<3 SDCM
Product Dimensions
L313/605/900/1190*
W50*H73mm
Hole Size
/
Weight
/
IP Rating
IP66
IK Rating
IK08
Housing Material
Extruded Aluminium
Housing Color
RAL9001
Cream
RAL9006
White Aluminium
RAL9011
Graphite Black
Anodised Charcoal Grey

Optical Accessories

Mounting Accessories

Filter codes by

No.

All No.

70.1050

70.1051

70.1052

70.1053

Power

All Power

15W

30W

45W

60W

Current

All Current

CCT

All CCT

RGB

Flux

All Flux

1110lm

1665lm

2220lm

555lm

Beam

All Beam

15°

20°*50°

25°

35°

50°

Length

All Length

1190mm

313mm

605mm

900mm

LED Qty.

All LED Qty.

Cut out

All Cut out

Size

All Size

Type

All Type

Voltage

All Voltage

No.

Power

Current

CCT

Flux

Beam

Length

LED Qty.

Cut out

Size

Type

Voltage

70.1050

15W

RGB

555lm

15°

313mm

70.1050

15W

RGB

555lm

25°

313mm

70.1050

15W

RGB

555lm

35°

313mm

70.1050

15W

RGB

555lm

50°

313mm

70.1050

15W

RGB

555lm

20°*50°

313mm

70.1051

30W

RGB

1110lm

15°

605mm

70.1051

30W

RGB

1110lm

25°

605mm

70.1051

30W

RGB

1110lm

35°

605mm

70.1051

30W

RGB

1110lm

50°

605mm

70.1051

30W

RGB

1110lm

20°*50°

605mm

70.1052

45W

RGB

1665lm

15°

900mm

70.1052

45W

RGB

1665lm

25°

900mm

70.1052

45W

RGB

1665lm

35°

900mm

70.1052

45W

RGB

1665lm

50°

900mm

70.1052

45W

RGB

1665lm

20°*50°

900mm

70.1053

60W

RGB

2220lm

15°

1190mm

70.1053

60W

RGB

2220lm

25°

1190mm

70.1053

60W

RGB

2220lm

35°

1190mm

70.1053

60W

RGB

2220lm

50°

1190mm

70.1053

60W

RGB

2220lm

20°*50°

1190mm
