CASSIOPEA 36<br>RGBW Mix

CASSIOPEA

70.0040/70.0041/70.0042/70.0043

CASSIOPEA 36-RGBW Mix

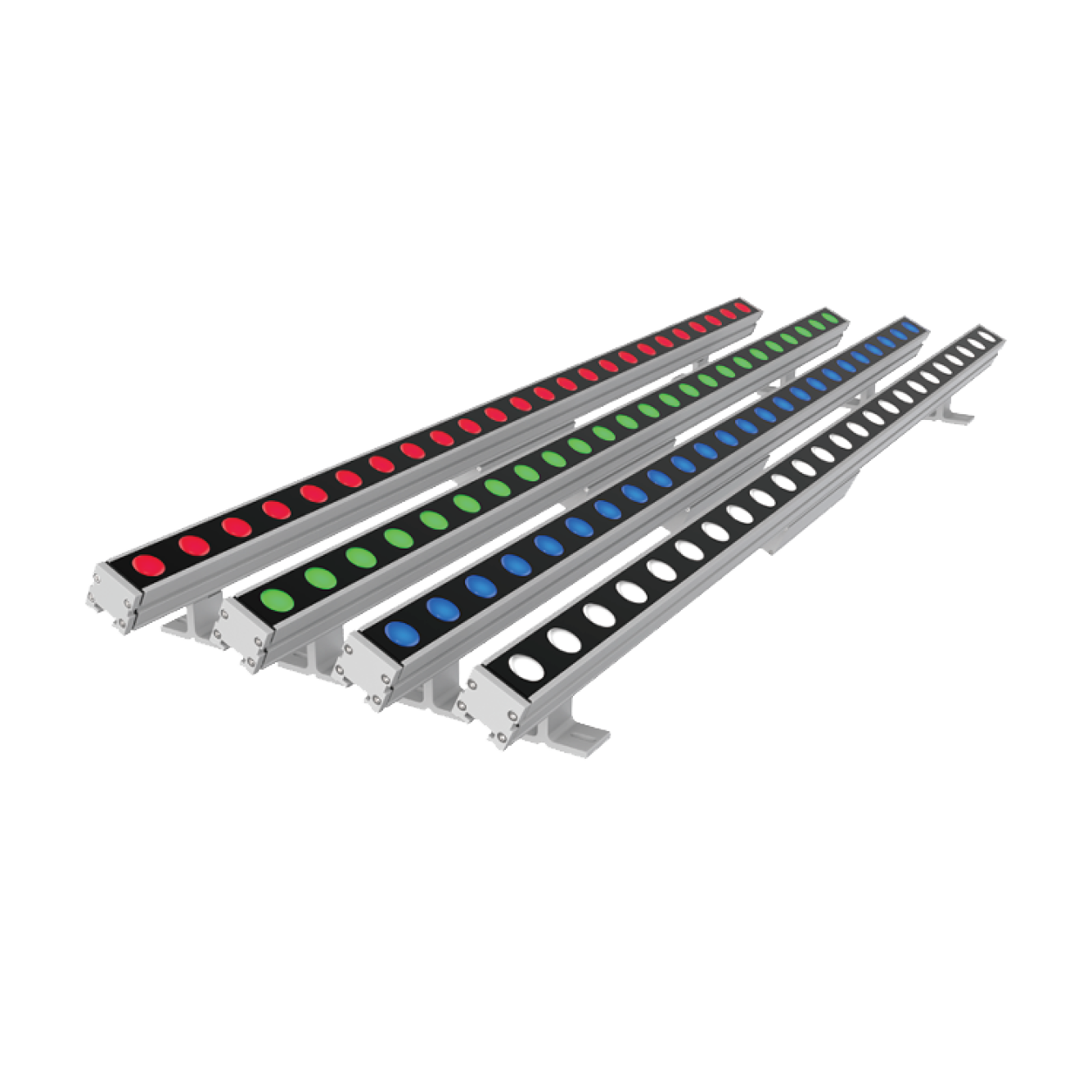

The Cassiopea family includes a group of wall washers for outdoor spaces. They have a body of light aluminum with powder coating and a pre-treatment for outdoor use, clear glass, and a silicon rubber gasket. They have an IP66 rating and employ the newest generation of light sources, thus achieving a low heat resistance and high lighting efficiency. They are available in a variely of color temperatures and different body colors.

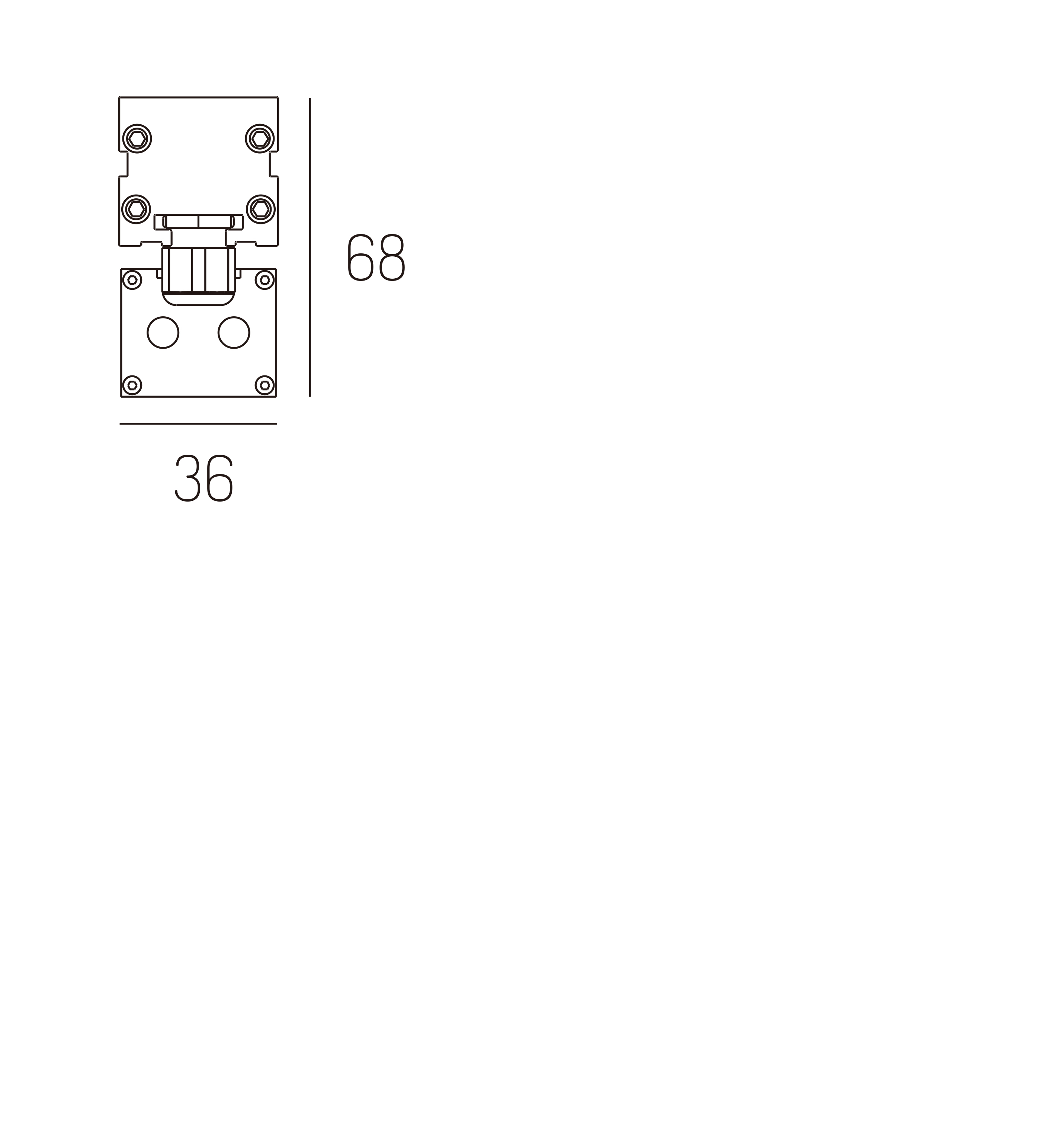

Technical Drawing

product data

Fixture Power
9W/18W/27W/36W
Driving Current
/
Lumen Output
270lm/540lm
810lm/1080lm
Fixture Efficiency
30.0lm/w
CRI
90
Color Temperature
RGBW30/RGBW35/RGBW40

LIGHT DISTRIBUTION

Beam Angle
10°/25°/35°
20°*50°
Source Type
Citizen COB LED
Control Method
DMX512
MacAdam Ellipse
<3 SDCM
Product Dimensions
L300/600/900/1200x
W36*H68mm
Hole Size
/
Weight
/
IP Rating
IP66
IK Rating
IK08
Housing Material
Extruded Aluminium
Housing Color
RAL9001
Cream
RAL9006
White Aluminium
RAL9011
Graphite Black
Anodised Charcoal Grey

Optical Accessories

Mounting Accessories

Filter codes by

No.

All No.

70.0040

70.0041

70.0042

70.0043

Power

All Power

18W

27W

36W

9W

Current

All Current

CCT

All CCT

RGBW30

RGBW35

RGBW40

Flux

All Flux

1080lm

270lm

540lm

810lm

Beam

All Beam

10°

20°*50°

25°

35°

Length

All Length

1200mm

300mm

600mm

900mm

LED Qty.

All LED Qty.

Cut out

All Cut out

Size

All Size

Type

All Type

Voltage

All Voltage

No.

Power

Current

CCT

Flux

Beam

Length

LED Qty.

Cut out

Size

Type

Voltage

70.0040

9W

RGBW30

270lm

10°

300mm

70.0040

9W

RGBW35

270lm

10°

300mm

70.0040

9W

RGBW40

270lm

10°

300mm

70.0040

9W

RGBW30

270lm

25°

300mm

70.0040

9W

RGBW35

270lm

25°

300mm

70.0040

9W

RGBW40

270lm

25°

300mm

70.0040

9W

RGBW30

270lm

35°

300mm

70.0040

9W

RGBW35

270lm

35°

300mm

70.0040

9W

RGBW40

270lm

35°

300mm

70.0040

9W

RGBW30

270lm

20°*50°

300mm

70.0040

9W

RGBW35

270lm

20°*50°

300mm

70.0040

9W

RGBW40

270lm

20°*50°

300mm

70.0041

18W

RGBW30

540lm

10°

600mm

70.0041

18W

RGBW35

540lm

10°

600mm

70.0041

18W

RGBW40

540lm

10°

600mm

70.0041

18W

RGBW30

540lm

25°

600mm

70.0041

18W

RGBW35

540lm

25°

600mm

70.0041

18W

RGBW40

540lm

25°

600mm

70.0041

18W

RGBW30

540lm

35°

600mm

70.0041

18W

RGBW35

540lm

35°

600mm

70.0041

18W

RGBW40

540lm

35°

600mm

70.0041

18W

RGBW30

540lm

20°*50°

600mm

70.0041

18W

RGBW35

540lm

20°*50°

600mm

70.0041

18W

RGBW40

540lm

20°*50°

600mm

70.0042

27W

RGBW30

810lm

10°

900mm

70.0042

27W

RGBW35

810lm

10°

900mm

70.0042

27W

RGBW40

810lm

10°

900mm

70.0042

27W

RGBW30

810lm

25°

900mm

70.0042

27W

RGBW35

810lm

25°

900mm

70.0042

27W

RGBW40

810lm

25°

900mm

70.0042

27W

RGBW30

810lm

35°

900mm

70.0042

27W

RGBW35

810lm

35°

900mm

70.0042

27W

RGBW40

810lm

35°

900mm

70.0042

27W

RGBW30

810lm

20°*50°

900mm

70.0042

27W

RGBW35

810lm

20°*50°

900mm

70.0042

27W

RGBW40

810lm

20°*50°

900mm

70.0043

36W

RGBW30

1080lm

10°

1200mm

70.0043

36W

RGBW35

1080lm

10°

1200mm

70.0043

36W

RGBW40

1080lm

10°

1200mm

70.0043

36W

RGBW30

1080lm

25°

1200mm

70.0043

36W

RGBW35

1080lm

25°

1200mm

70.0043

36W

RGBW40

1080lm

25°

1200mm

70.0043

36W

RGBW30

1080lm

35°

1200mm

70.0043

36W

RGBW35

1080lm

35°

1200mm

70.0043

36W

RGBW40

1080lm

35°

1200mm

70.0043

36W

RGBW30

1080lm

20°*50°

1200mm

70.0043

36W

RGBW35

1080lm

20°*50°

1200mm

70.0043

36W

RGBW40

1080lm

20°*50°

1200mm

Reset all filters

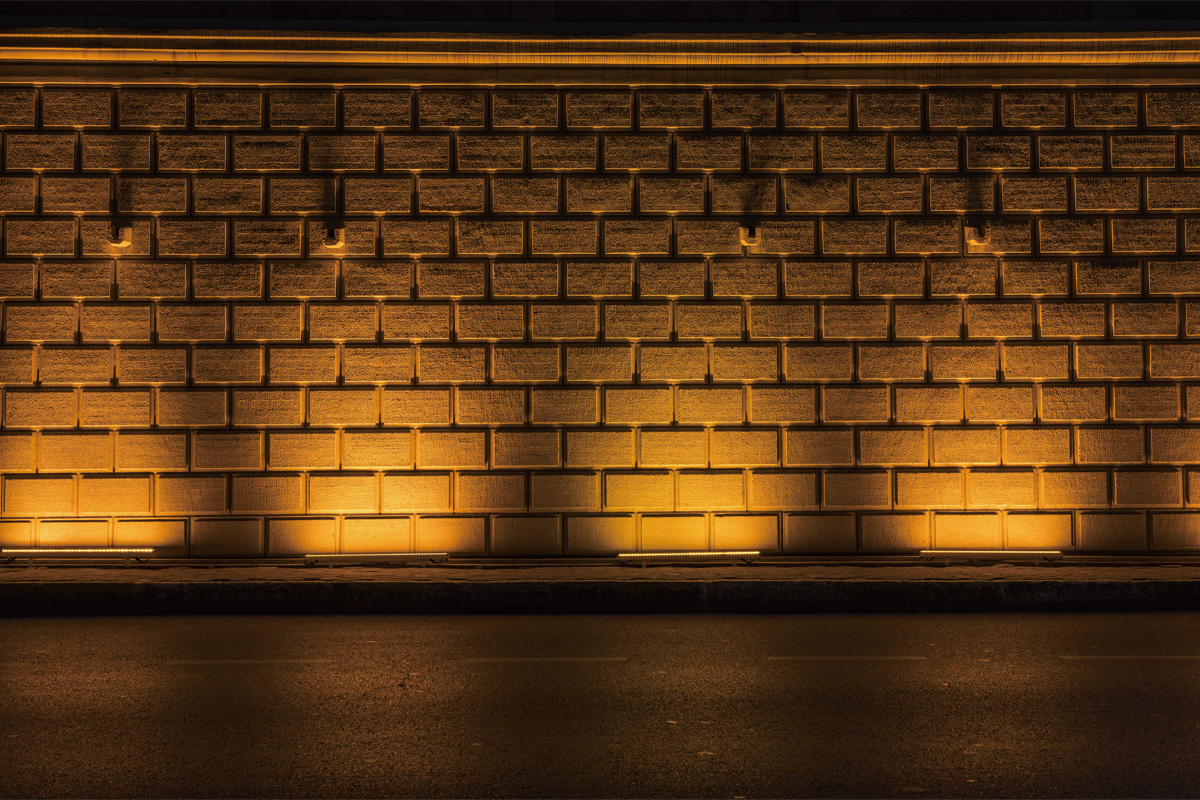

Inspiration
