CASSIOPEA 36<br>White

CASSIOPEA

70.0020/70.0021/70.0022/70.0023

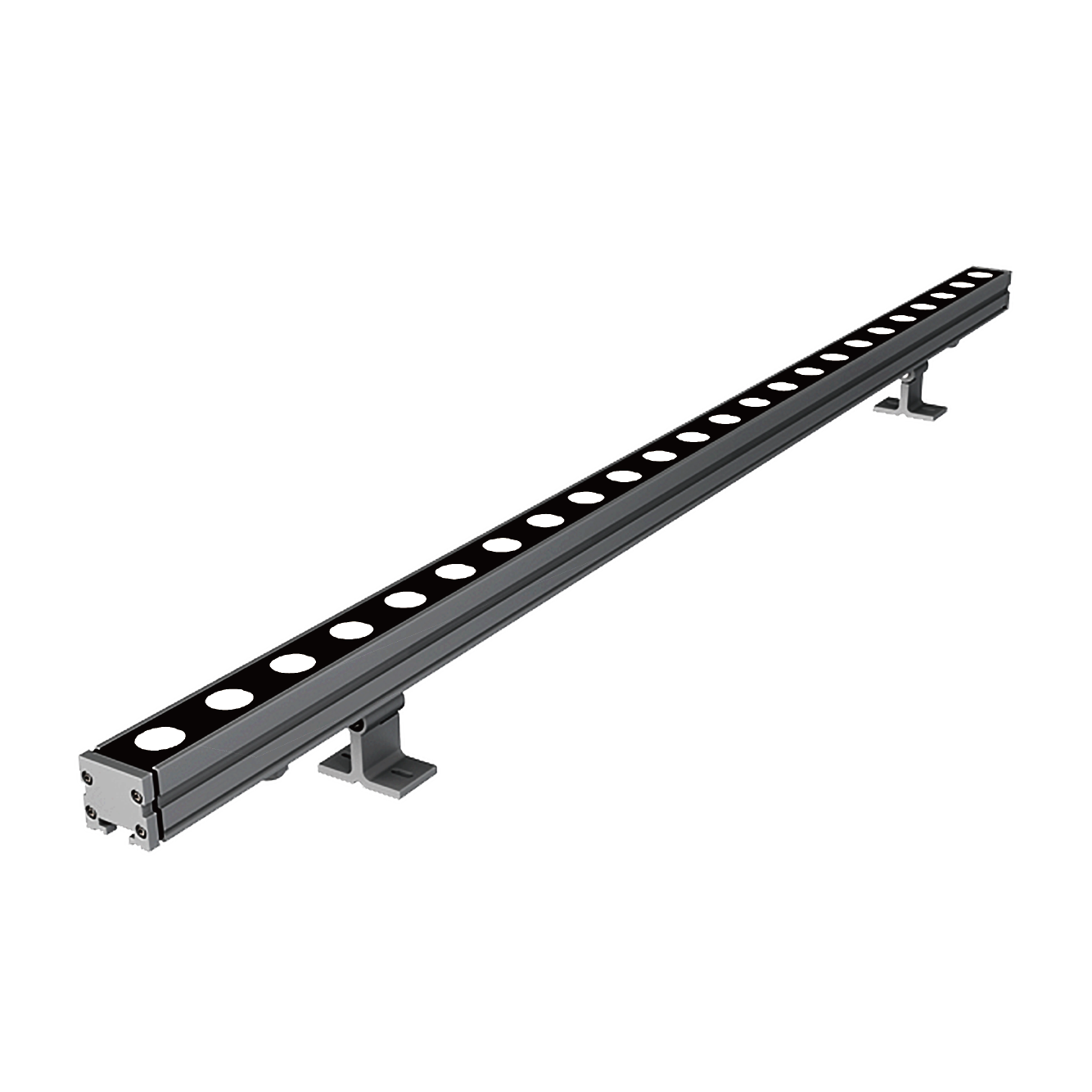

CASSIOPEA 36-White

The Cassiopea family includes a group of wall washers for outdoor spaces. They have a body of light aluminum with powder coating and a pre-treatment for outdoor use, clear glass, and a silicon rubber gasket. They have an IP66 rating and employ the newest generation of light sources, thus achieving a low heat resistance and high lighting efficiency. They are available in a variely of color temperatures and different body colors.

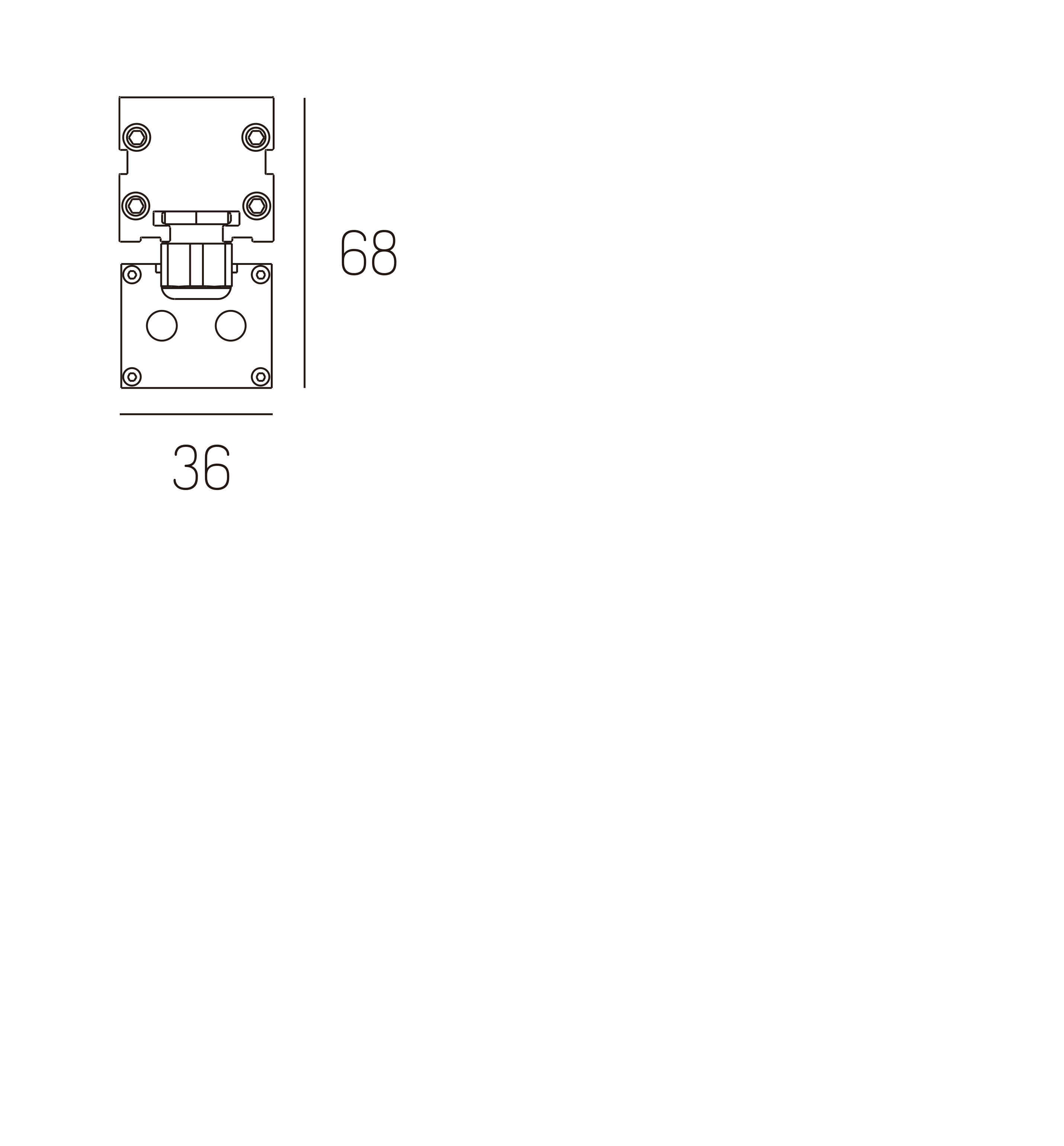

Technical Drawing

product data

Fixture Power
9W/18W/27W/36W
Driving Current
/
lumen Output
810lm/1620lm
2430lm/3240lm
Fixture Efficiency
90.0lm/w
CRI
90
Color Temperature
2700K/3000K/4000K

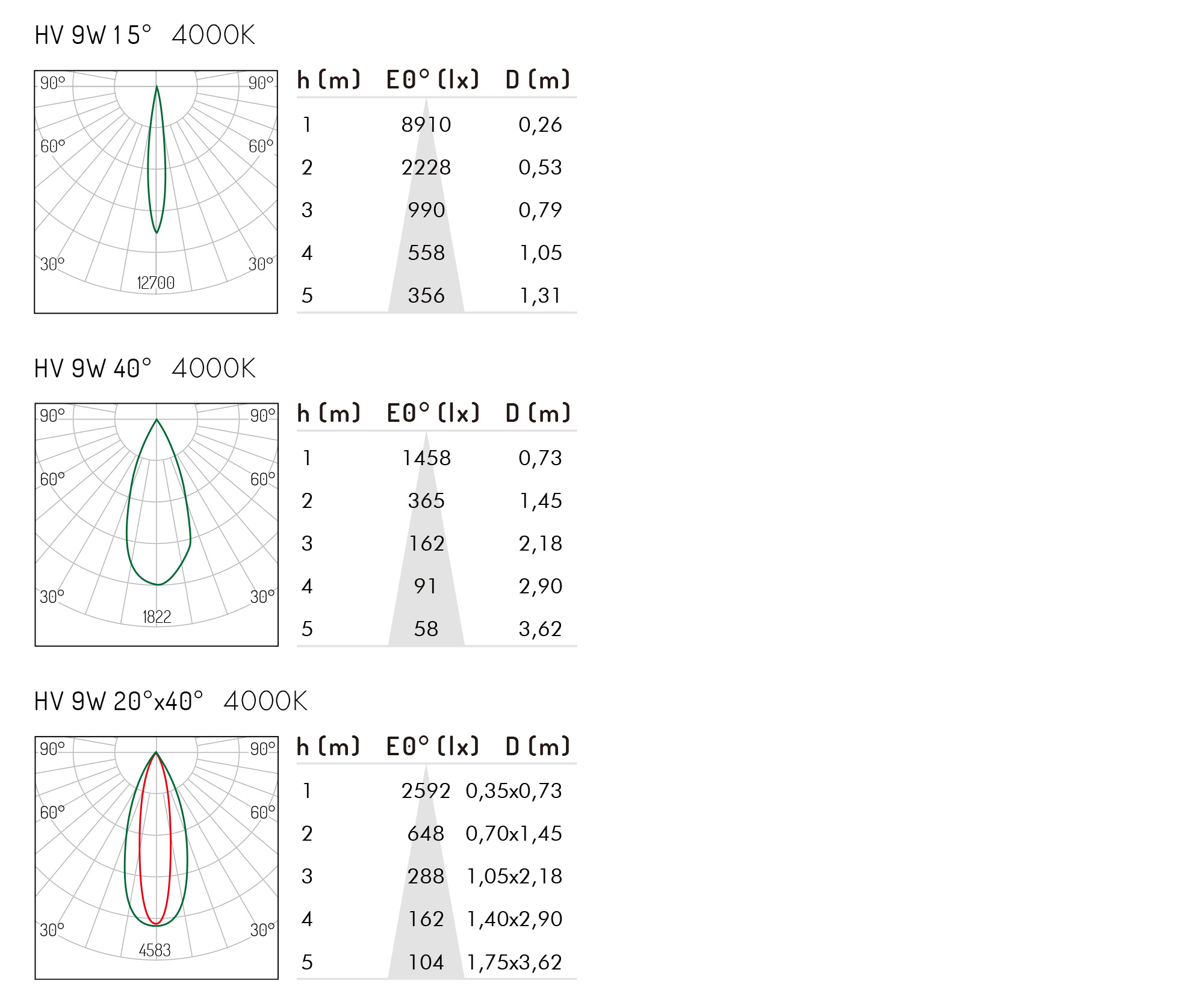

LIGHT DISTRIBUTION

Beam Angle
15°/40°/20°*40°
Source Type
Citizen COB LED
Control Method
Not dimmable
DMX512
MacAdam Ellipse
<3 SDCM
Product Dimensions
L300/600/900/1200*
W36*H68mm
Hole Size
/
Weight
/
IP Rating
IP66
IK Rating
IK08
Housing Material
Extruded Aluminium
Housing Color
RAL9001
Cream
RAL9006
White Aluminium
RAL9011
Graphite Black
Anodised Charcoal Grey

Optical Accessories

Mounting Accessories

Filter codes by

No.

All No.

70.0020

70.0021

70.0022

70.0023

Power

All Power

18W

27W

36W

9W

Current

All Current

CCT

All CCT

2700K

3000K

4000K

Flux

All Flux

1620lm

2430lm

3240lm

810lm

Beam

All Beam

15°

20°*40°

40°

Length

All Length

1200mm

300mm

600mm

900mm

LED Qty.

All LED Qty.

Cut out

All Cut out

Size

All Size

Type

All Type

Voltage

All Voltage

No.

Power

Current

CCT

Flux

Beam

Length

LED Qty.

Cut out

Size

Type

Voltage

70.0020

9W

2700K

810lm

15°

300mm

70.0020

9W

3000K

810lm

15°

300mm

70.0020

9W

4000K

810lm

15°

300mm

70.0020

9W

2700K

810lm

40°

300mm

70.0020

9W

3000K

810lm

40°

300mm

70.0020

9W

4000K

810lm

40°

300mm

70.0020

9W

2700K

810lm

20°*40°

300mm

70.0020

9W

3000K

810lm

20°*40°

300mm

70.0020

9W

4000K

810lm

20°*40°

300mm

70.0021

18W

2700K

1620lm

15°

600mm

70.0021

18W

3000K

1620lm

15°

600mm

70.0021

18W

4000K

1620lm

15°

600mm

70.0021

18W

2700K

1620lm

40°

600mm

70.0021

18W

3000K

1620lm

40°

600mm

70.0021

18W

4000K

1620lm

40°

600mm

70.0021

18W

2700K

1620lm

20°*40°

600mm

70.0021

18W

3000K

1620lm

20°*40°

600mm

70.0021

18W

4000K

1620lm

20°*40°

600mm

70.0022

27W

2700K

2430lm

15°

900mm

70.0022

27W

3000K

2430lm

15°

900mm

70.0022

27W

4000K

2430lm

15°

900mm

70.0022

27W

2700K

2430lm

40°

900mm

70.0022

27W

3000K

2430lm

40°

900mm

70.0022

27W

4000K

2430lm

40°

900mm

70.0022

27W

2700K

2430lm

20°*40°

900mm

70.0022

27W

3000K

2430lm

20°*40°

900mm

70.0022

27W

4000K

2430lm

20°*40°

900mm

70.0023

36W

2700K

3240lm

15°

1200mm

70.0023

36W

3000K

3240lm

15°

1200mm

70.0023

36W

4000K

3240lm

15°

1200mm

70.0023

36W

2700K

3240lm

40°

1200mm

70.0023

36W

3000K

3240lm

40°

1200mm

70.0023

36W

4000K

3240lm

40°

1200mm

70.0023

36W

2700K

3240lm

20°*40°

1200mm

70.0023

36W

3000K

3240lm

20°*40°

1200mm

70.0023

36W

4000K

3240lm

20°*40°

1200mm

Reset all filters

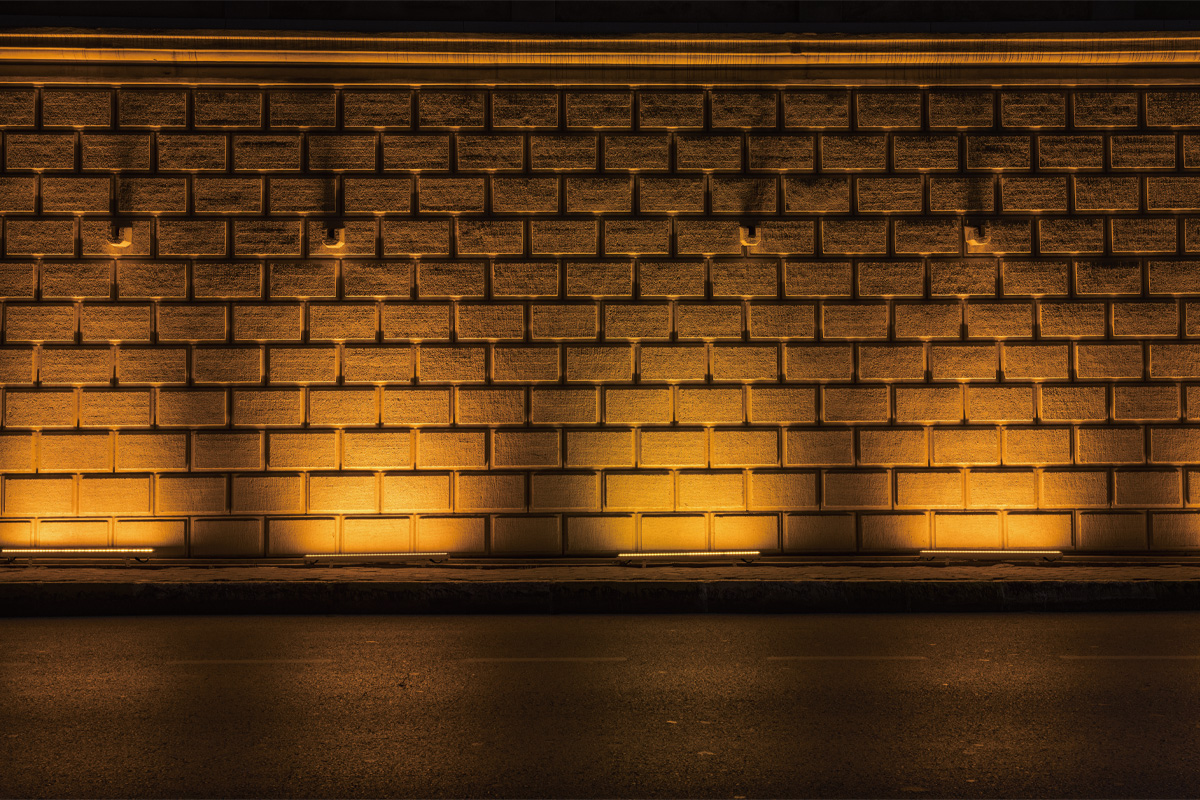

Inspiration
