Quarzo
74.0301

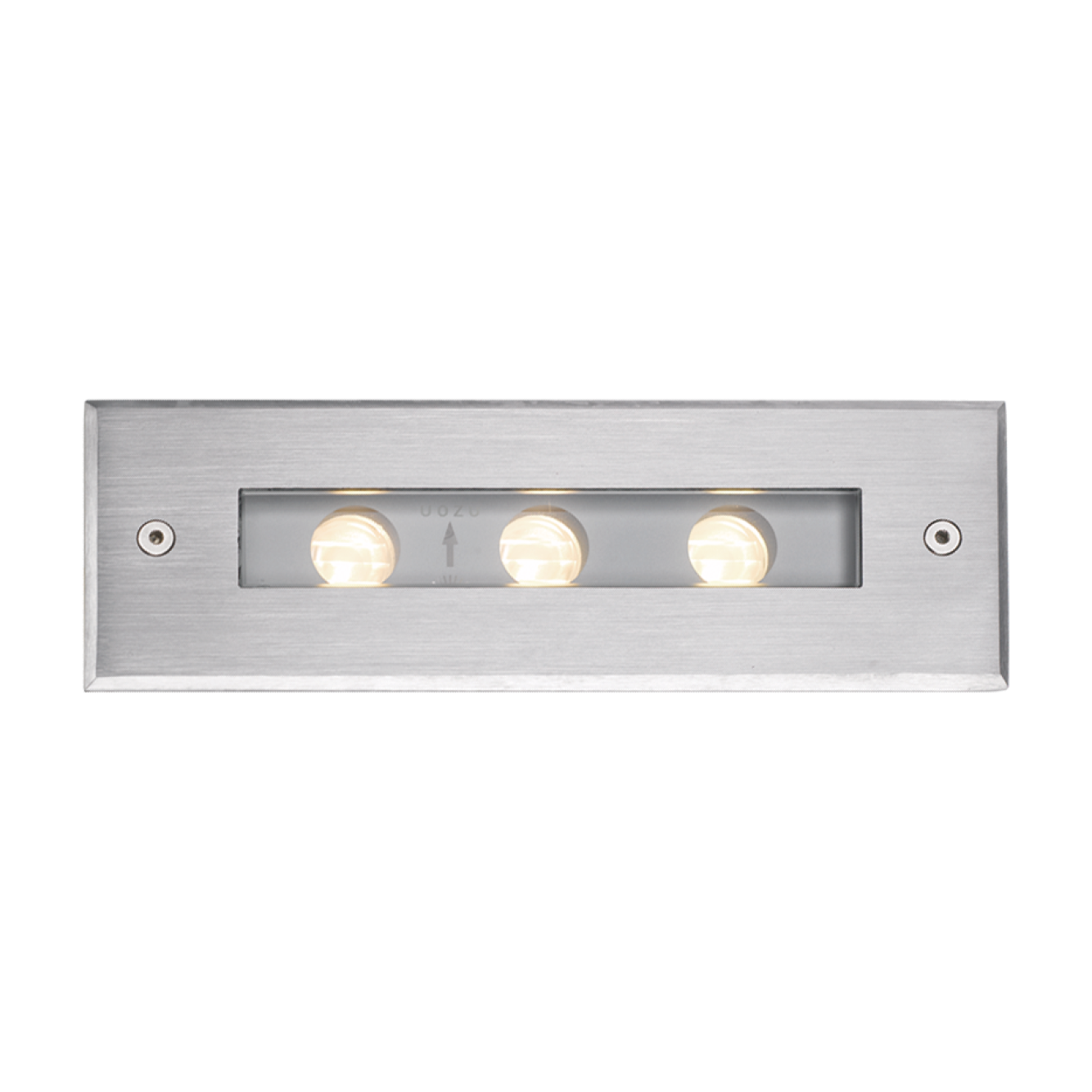

QUARZO Deep

The Quarzo family includes a group of recessed wall lights for outdoor spaces. They have a body and bracket in die-cast aluminum with powder-coating and a pre-treatment for outdoor use. They have an IP65 rating and employ high-efficacy light sources.

Technical Drawing
product data
  • Fixture Power
    6W
  • Driving Current
    /
  • Lumen Output
    240lm
  • Fixture Efficiency
    40.0lm/w
  • CRI
    90
  • Color Temperature
    2200K/2700K/3000K
LIGHT DISTRIBUTION

  • Beam Angle
    35°/45°
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    L195*W64*H57mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP65
  • Housing Material
    Die-cast Aluminium
  • Housing Color
    RAL9005
    Jet Black
    Stainless Steel Cover
Filter codes by
No.
All No.
Power
All Power
6W
Current
All Current
CCT
All CCT
2200K
2700K
3000K
Flux
All Flux
240lm
Beam
All Beam
35°
45°
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
L195*W64*H57mm
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
6W
2200K
240lm
35°
L195*W64*H57mm
Specifications Installation instructions IES
6W
2700K
240lm
35°
L195*W64*H57mm
Specifications Installation instructions IES
6W
3000K
240lm
35°
L195*W64*H57mm
Specifications Installation instructions IES
6W
2200K
240lm
45°
L195*W64*H57mm
Specifications Installation instructions IES
6W
2700K
240lm
45°
L195*W64*H57mm
Specifications Installation instructions IES
6W
3000K
240lm
45°
L195*W64*H57mm
Specifications Installation instructions IES
