Quarzo
74.0201

Quarzo

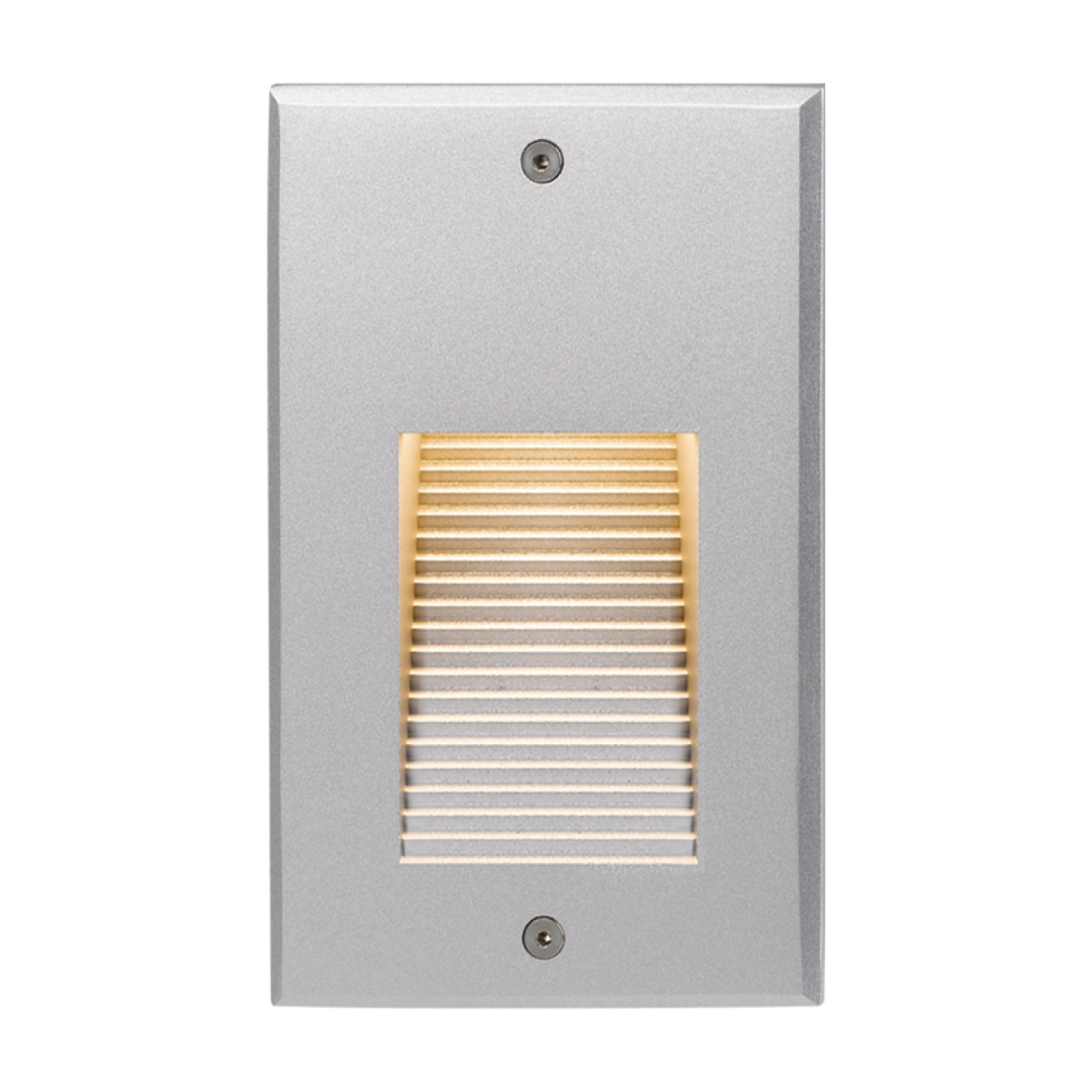

The Quarzo family includes a group of recessed wall lights for outdoor spaces. They have a body and bracket in die-cast aluminum with powder- coating and a pre-treatment for outdoor use, clear glass, and a silicon rubber gasket. They have an IP65 rating and employ the newest generation of light sources, thus achieving a low heat resistance and high lighting efficiency.

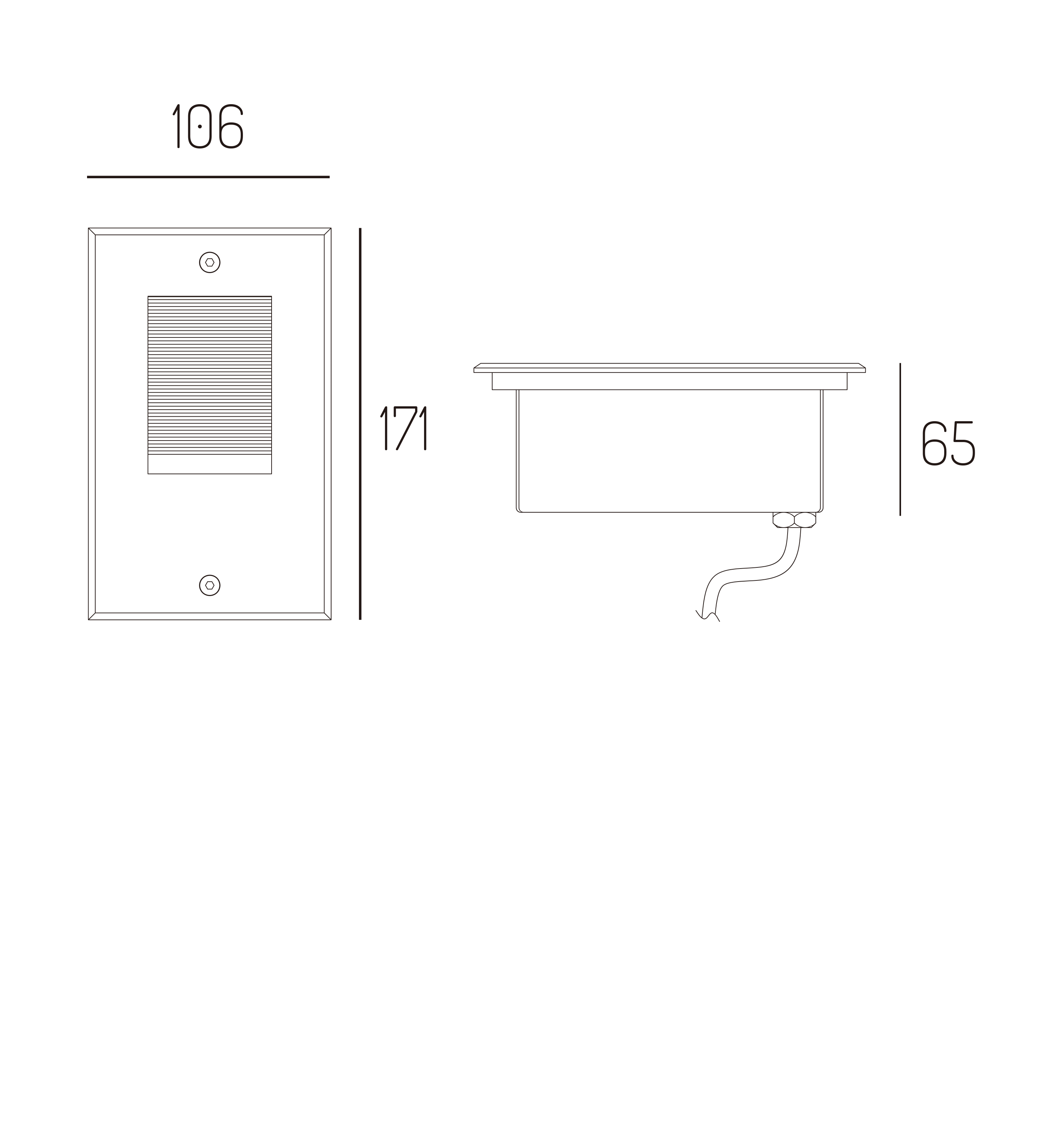

Technical Drawing
product data
  • Fixture Power
    1.5W
  • Driving Current
    /
  • Lumen Output
    25lm
  • Fixture Efficiency
    16.6lm/w
  • CRI
    90
  • Color Temperature
    2200K/2700K/3000K
LIGHT DISTRIBUTION

  • Beam Angle
    120°
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    L106*W171*H65mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP65
  • Housing Material
    Die-cast Aluminium
  • Housing Color
    RAL9005
    Jet Black
    Stainless Steel Cover
Filter codes by
No.
All No.
Power
All Power
1.5W
Current
All Current
CCT
All CCT
2200K
2700K
3000K
Flux
All Flux
25lm
Beam
All Beam
120°
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
L106*W171*H65mm
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
1.5W
2200K
25lm
120°
L106*W171*H65mm
Specifications Installation instructions IES
1.5W
2700K
25lm
120°
L106*W171*H65mm
Specifications Installation instructions IES
1.5W
3000K
25lm
120°
L106*W171*H65mm
Specifications Installation instructions IES
