ASTRO
07.0110

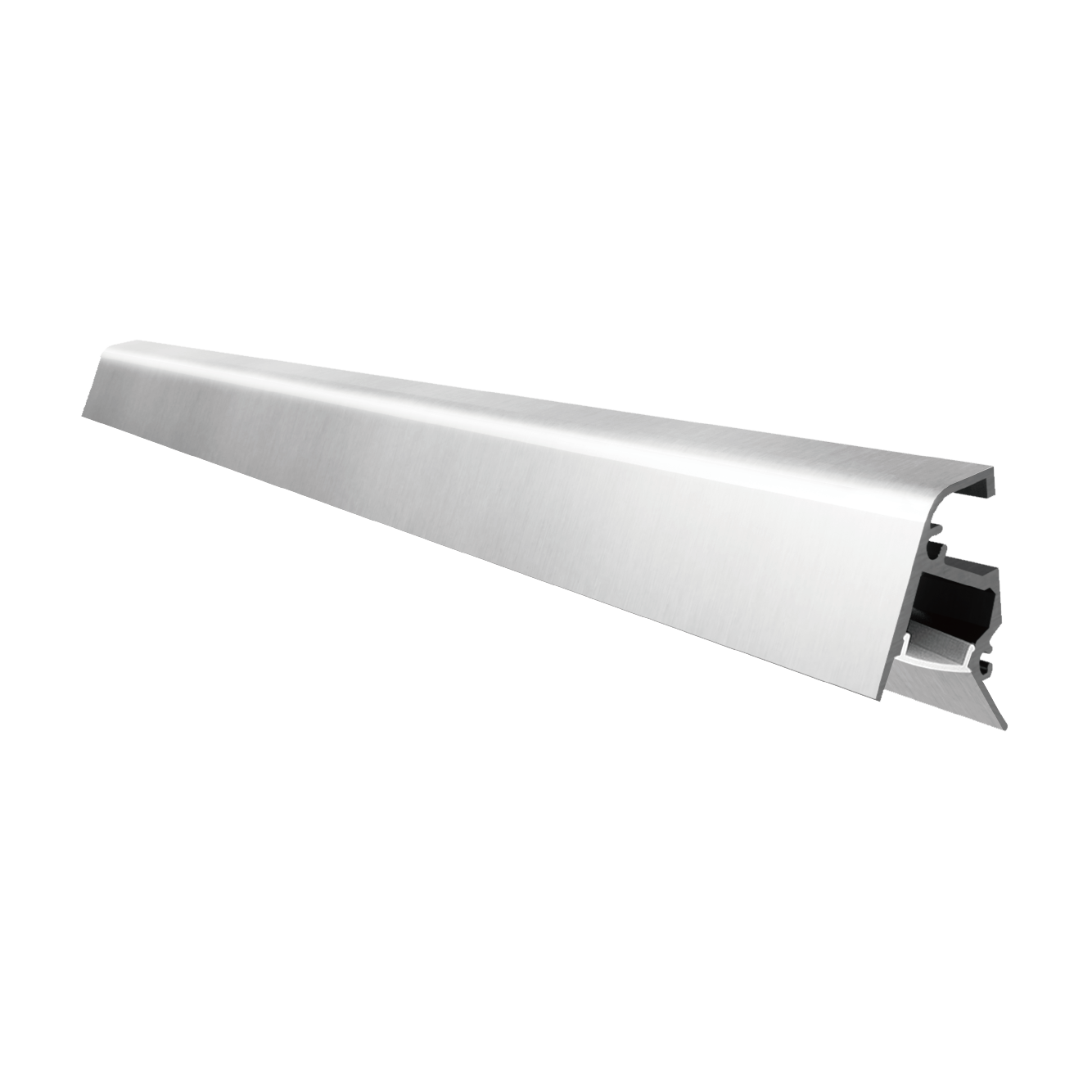

Linear Rigid Lights

This is an innovative design of a rigid strip that can be turned in three directions to install, it is flexible and can be applied in difficult installation space. It is the best choice to deal with shaped spaces thanks to its flexible and adaptable body. Based on this, it is also very simple to install, a screw can be fixed and can ensure that it has a long life and high quality. A High-quality and stable light source also makes its light has a good performance of soft bright and not dazzling. Easy in usage, simple in maintenance, flexible on-site customization.

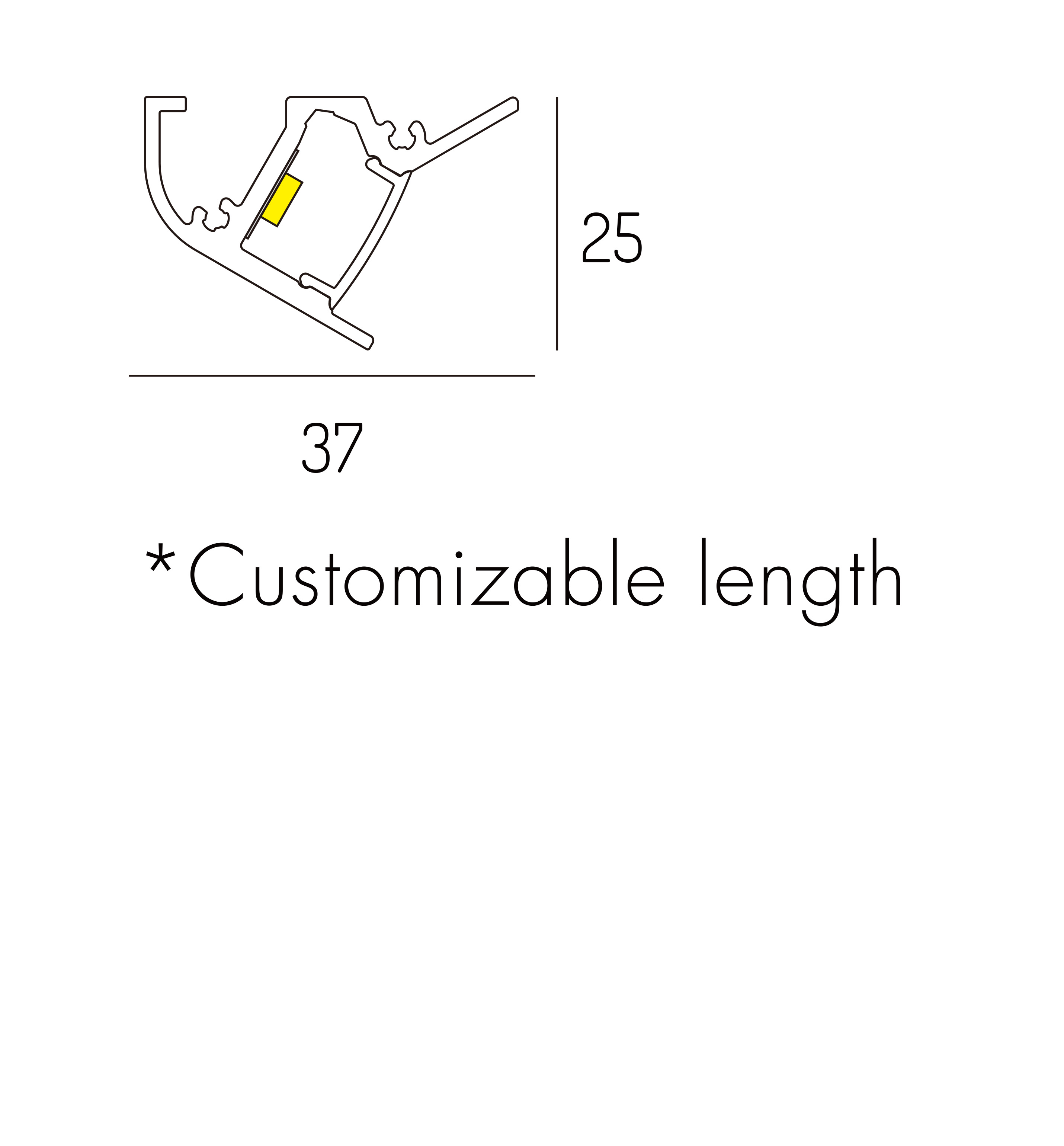

Technical Drawing
product data
  • Fixture Power
    19.2W/m
  • Driving Current
    /
  • lumen Output
    1250lm/m
  • Fixture Efficiency
    65.1lm/w
  • CRI
    90
  • Color Temperature
    2700K/3000K/4000K

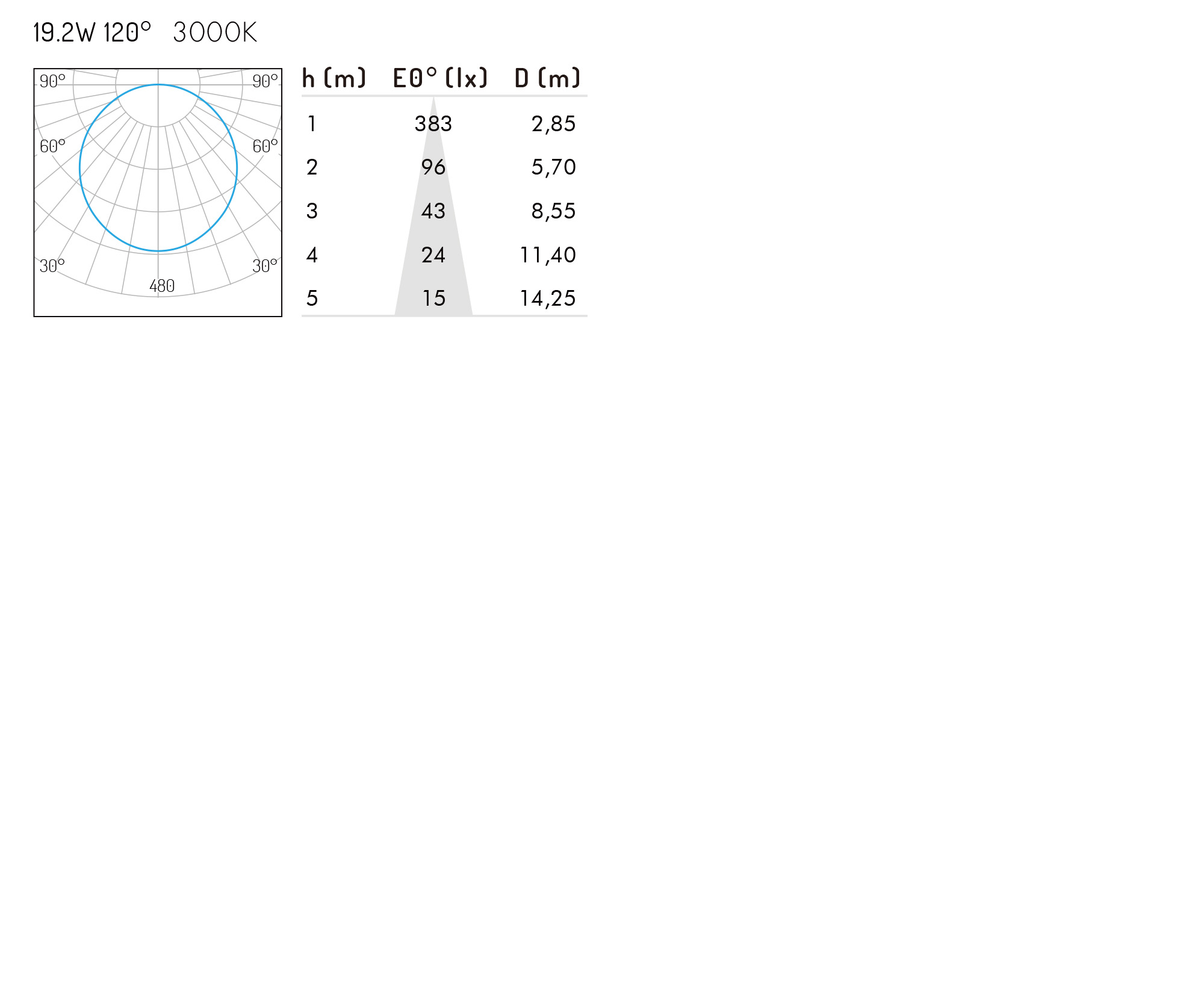

LIGHT DISTRIBUTION
  • Beam Angle
    120°
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
    Phase-cut Dimming
    0-10V Dimming
    DALI Dimming
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    W37*H25mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP20
  • Housing Material
    Anodised Extruded Aluminium
  • Housing Color
    /
Filter codes by
No.
All No.
07.0110
Power
All Power
19.2W/m
Current
All Current
CCT
All CCT
2700 K
3000 K
4000 K
Flux
All Flux
1250lm/m
Beam
All Beam
120°
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
W37*H25mm
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
07.0110
19.2W/m
2700 K
1250lm/m
120°
W37*H25mm
Specifications Installation instructions IES
19.2W/m
3000 K
1250lm/m
120°
W37*H25mm
Specifications Installation instructions IES
19.2W/m
4000 K
1250lm/m
120°
W37*H25mm
Specifications Installation instructions IES
