ASTRO
07.0104

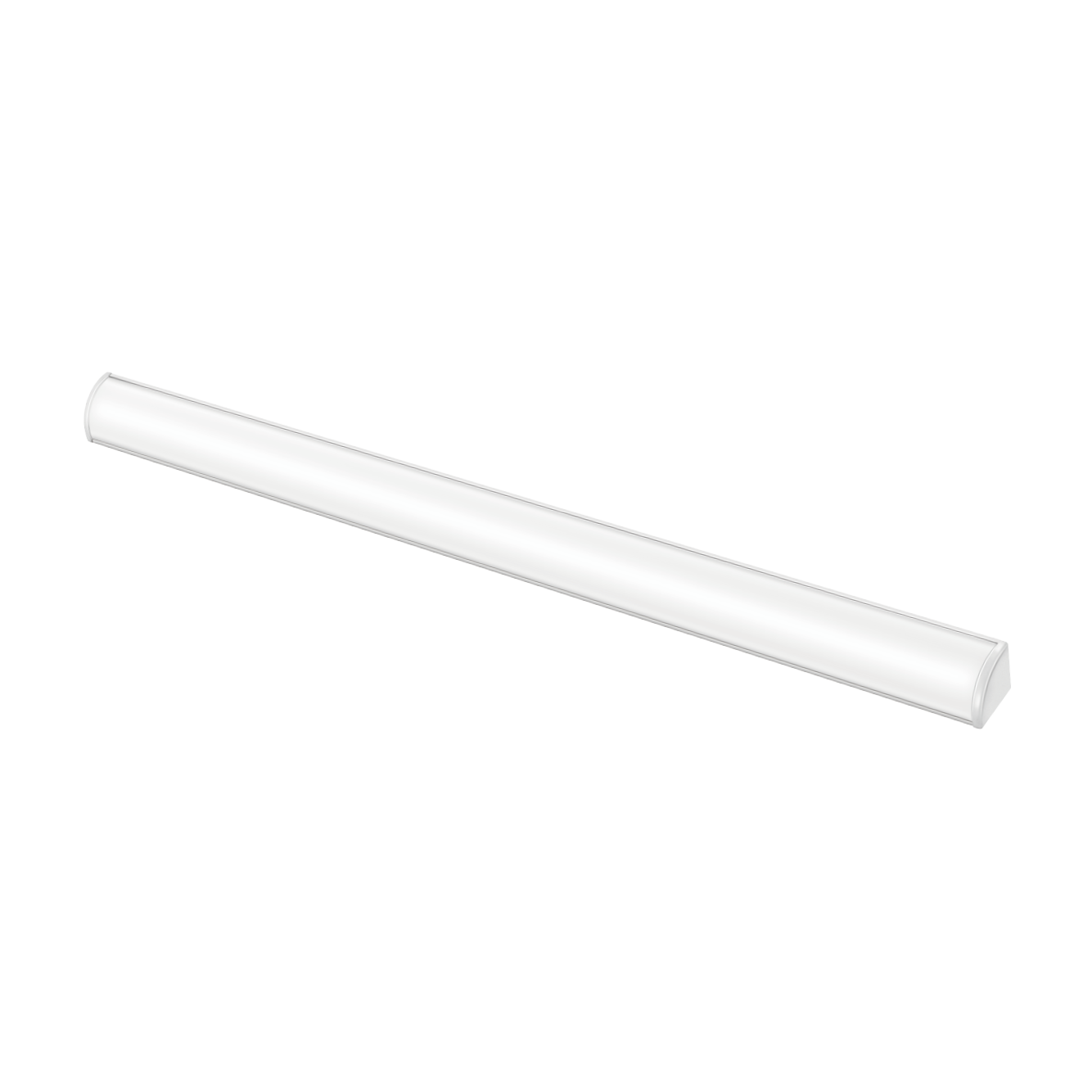

Linear Rigid Lights

This Rigid LED strip light is a specially designed for corners to make the most of the space in the corners of walls and cabinets and are aesthetically pleasing and practical. They are also made of Anodised extruded aluminium and PMMA, which is durable and has a long service life. Smooth and wide-range (less ineffective area) dimming performance with patent circuit design, compatible with dimmers in the market. Environmentally-friendly silicone with high grade appearance, soft bend flexibility, strong impact resistant and high weather resistance.

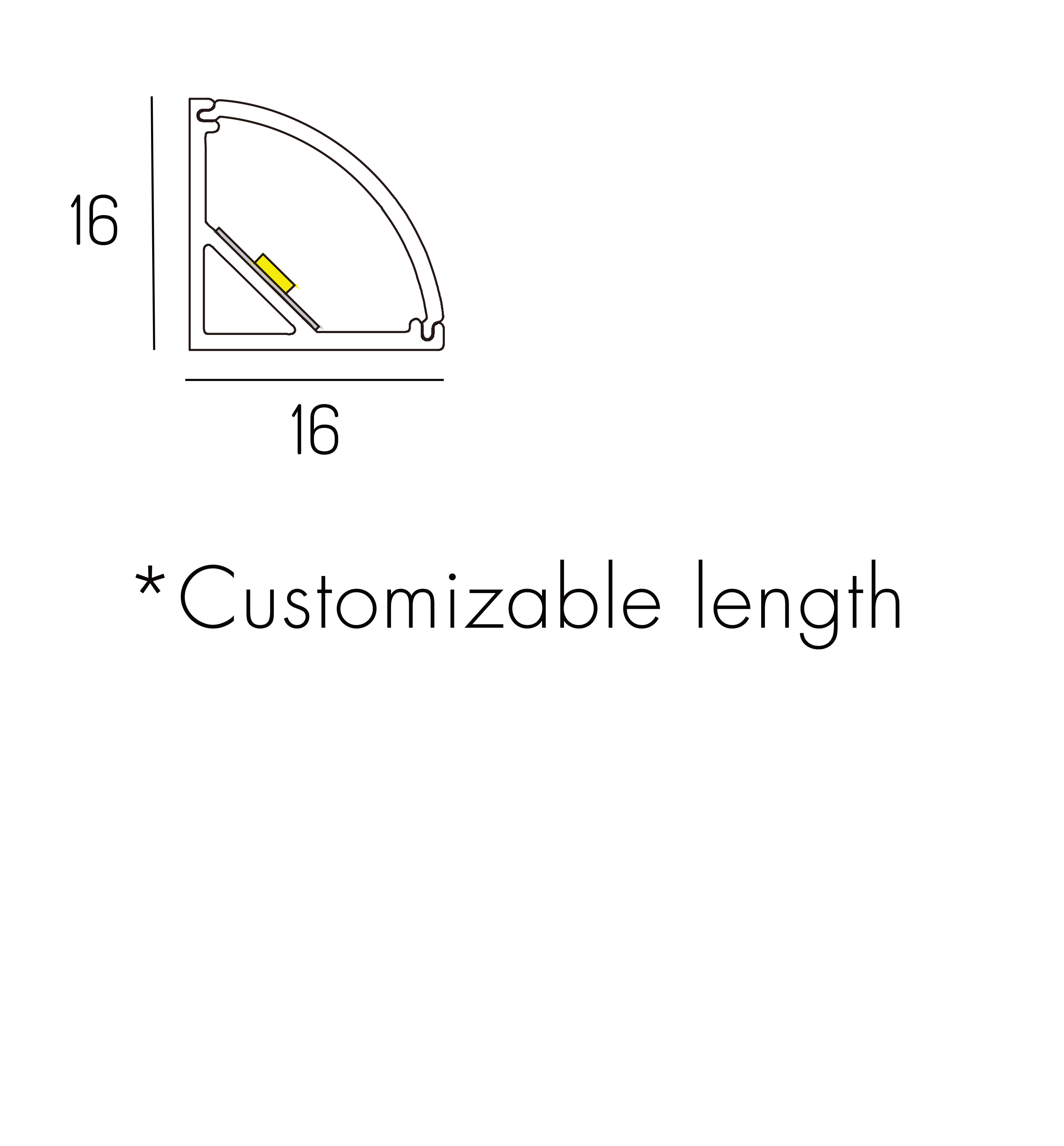

Technical Drawing
product data
  • Fixture Power
    14.4W/m
  • Driving Current
    /
  • Lumen Output
    1050lm/m
  • Fixture Efficiency
    72.9lm/w
  • CRI
    90
  • Color Temperature
    2700K/3000K/4000K

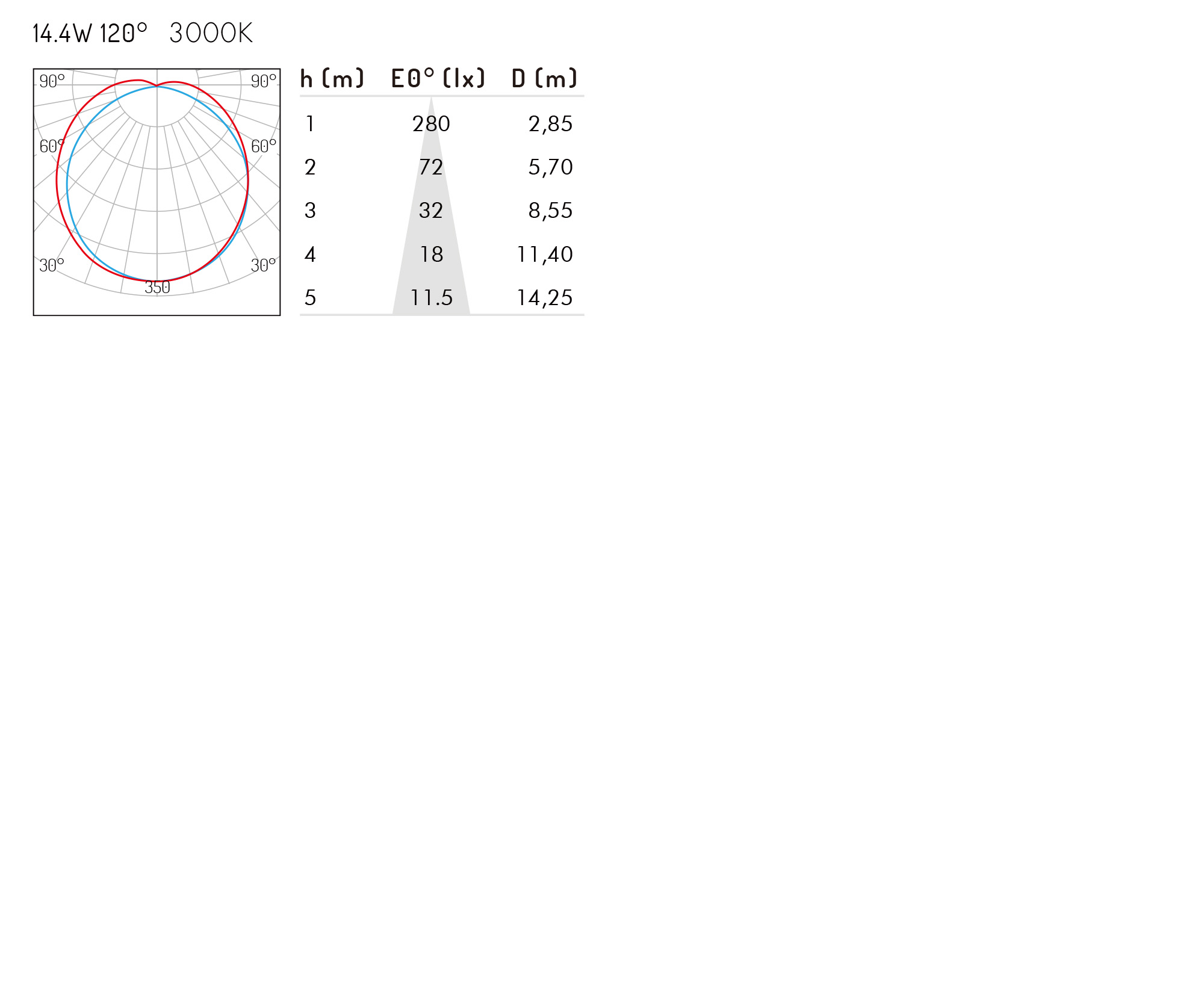

LIGHT DISTRIBUTION
  • Beam Angle
    120°
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
    Phase-cut Dimming
    0-10V Dimming
    DALI Dimming
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    W16*H16mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP20
  • Housing Material
    Anodised Extruded Aluminium
  • Housing Color
    /
Filter codes by
No.
All No.
07.0104
Power
All Power
14.4W/m
Current
All Current
CCT
All CCT
2700 K
3000 K
4000 K
Flux
All Flux
1050lm/m
Beam
All Beam
120°
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
W16*H16mm
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
07.0104
14.4W/m
2700 K
1050lm/m
120°
W16*H16mm
Specifications Installation instructions IES
14.4W/m
3000 K
1050lm/m
120°
W16*H16mm
Specifications Installation instructions IES
14.4W/m
4000 K
1050lm/m
120°
W16*H16mm
Specifications Installation instructions IES
Reset all filters
