ASTRO
07.0107

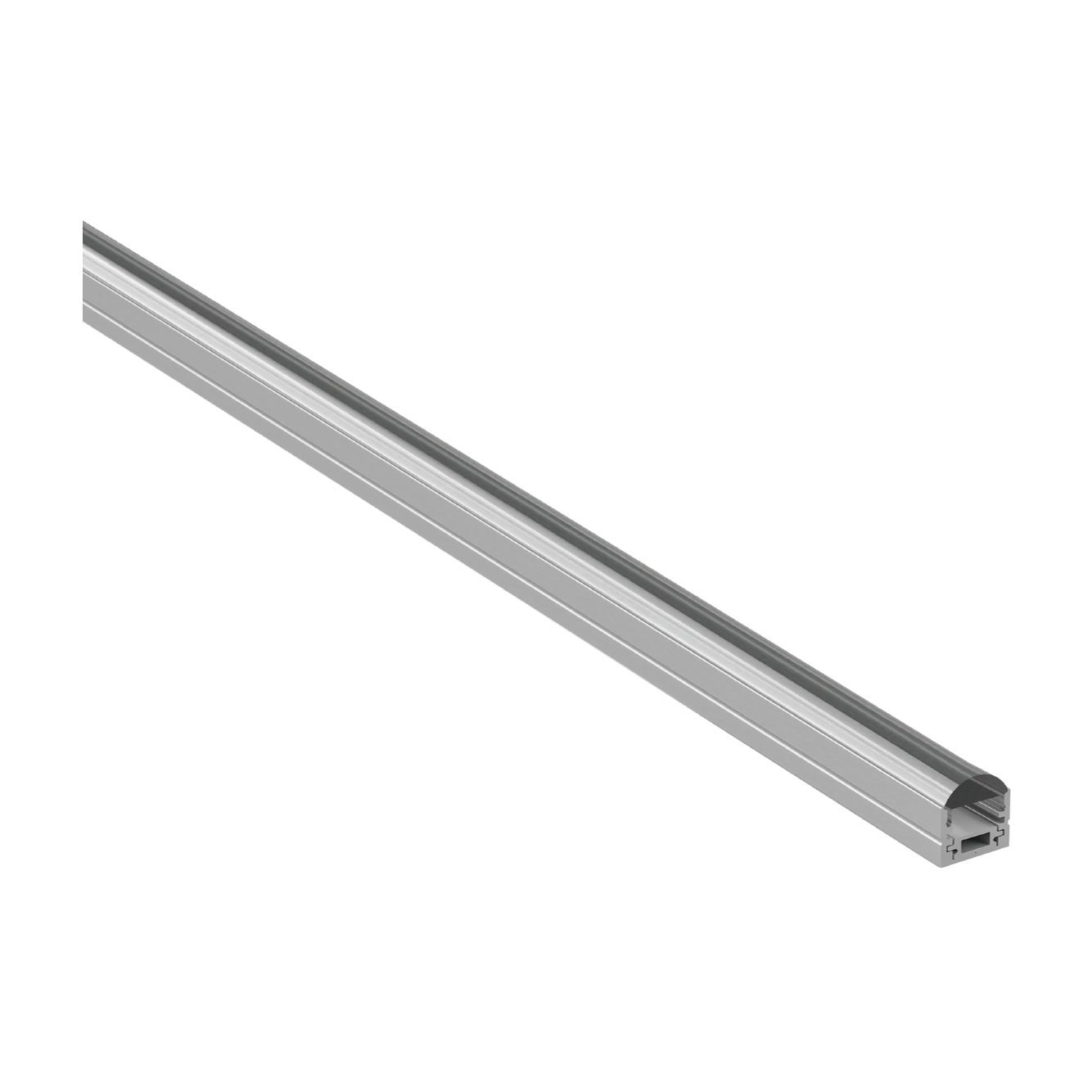

Linear Rigid Lights

This is a rigid strip with 15°and 80°adjustment, which can adapt to different space requirements, small angle to large angle switch to make the designer's work easier and enhance the ability to customize the project. Innovative ceiling light solution, fully and seamlessly integrate or retrofit in the ceiling. It can replace selected cross tee of the grid ceiling suspension systems where light is desired. Fantastic design reliable to be various lengths and shapes, with random combination following the element of ceiling grid, through a parallel connection to the supply power. It owns Dot-free linear lighting performance, compact structure, and nice appearance. Clean looking benefiting from the hidden wiring method abovethe suspended gypsum ceiling. Customized lengths can be realized base on the multiple of increment.

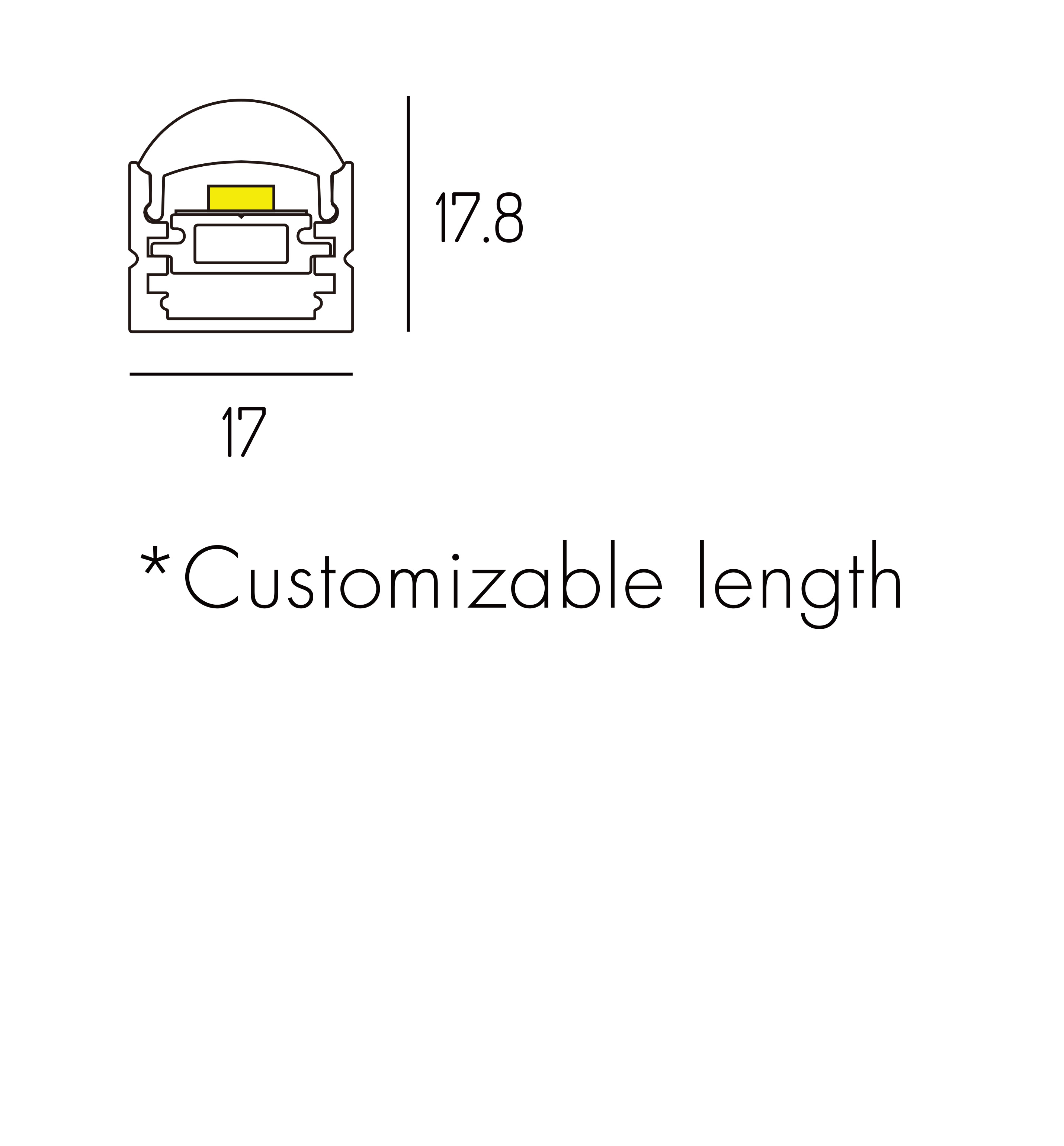

Technical Drawing
product data
  • Fixture Power
    19.2W/m
  • Driving Current
    /
  • Lumen Output
    1050lm/m
  • Fixture Efficiency
    54.6lm/w
  • CRI
    90
  • Color Temperature
    2700K/3000K/4000K
LIGHT DISTRIBUTION
  • Beam Angle
    15°/80°
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
    Phase-cut Dimming
    0-10V Dimming
    DALI Dimming
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    W17*H17.8mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP20
  • Housing Material
    Anodised Extruded Aluminium
  • Housing Color
    /
Filter codes by
No.
All No.
07.0107
Power
All Power
19.2W/m
Current
All Current
CCT
All CCT
2700 K
3000 K
4000 K
Flux
All Flux
1050lm/m
Beam
All Beam
15°
80°
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
W17*H17.8mm
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
07.0107
19.2W/m
2700 K
1050lm/m
15°
W17*H17.8mm
19.2W/m
2700 K
1050lm/m
80°
W17*H17.8mm
19.2W/m
3000 K
1050lm/m
15°
W17*H17.8mm
19.2W/m
3000 K
1050lm/m
80°
W17*H17.8mm
19.2W/m
4000 K
1050lm/m
15°
W17*H17.8mm
19.2W/m
4000 K
1050lm/m
80°
W17*H17.8mm
