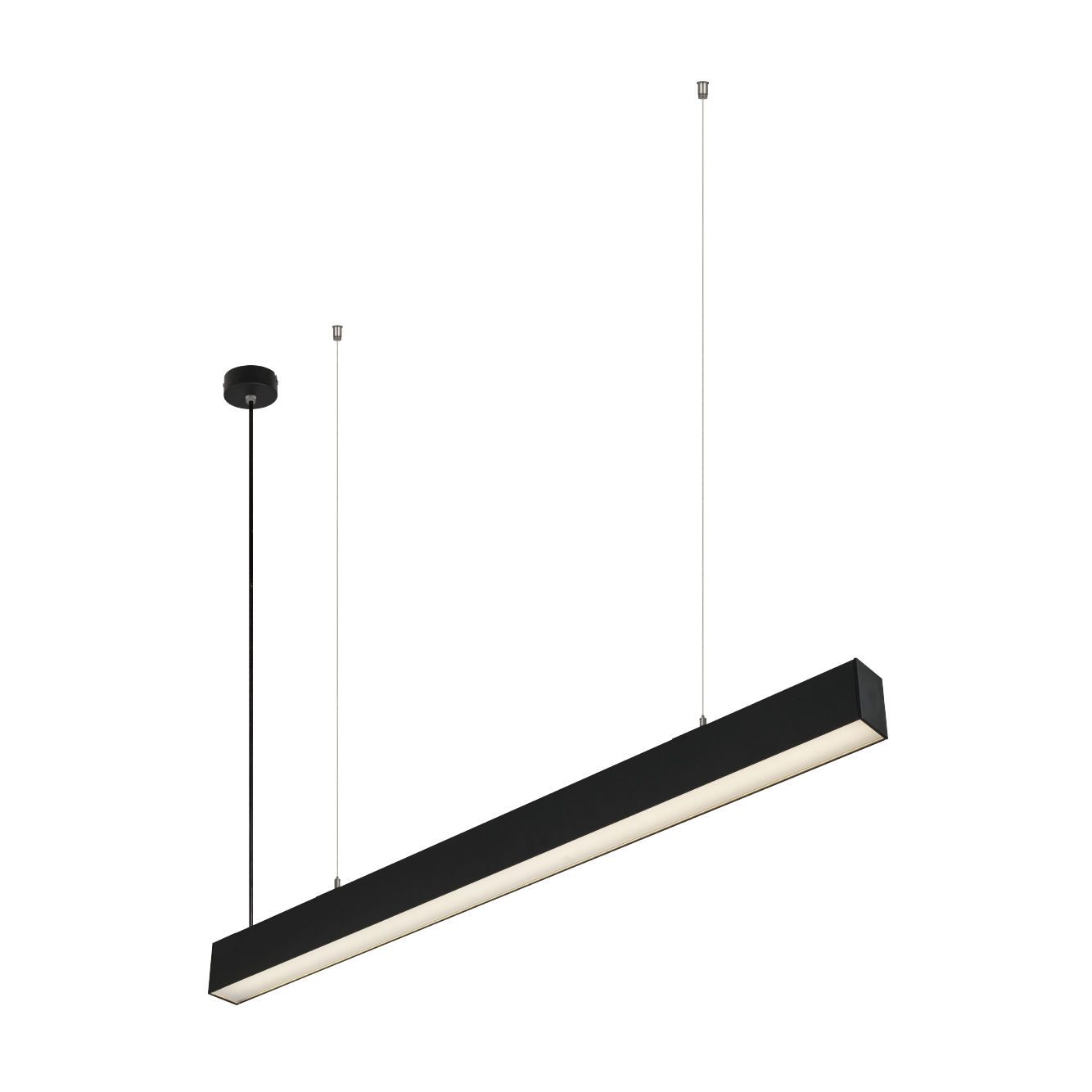

SOLE D
06.1010/06.1011

SOLE D

The ‘SOLE D’ is a Direct luminaire, which is the ultimate collection for residence, office and other commercial spaces, an appliance designed to be excellent and smart. Several combinations of optics solution create a visual idea of comfort, while equips with smart components to push the technological boundary beyond. Two optical options are available, one is the floodlight with regular version and microprismatic version, and the other is the chrome reflector version with imported chips and lens. INFINITO family can achieve seamless stitching technology, truly leave no seam and no light leakage. True nano optics in four precise beam angles combined with an antiglare provide near invisible light and an UGR as low as <16. An additional variant with an opal diffuser rounds off the options. A multitude of options include several power levels and color temperatures plus options in tunable white, as well as two form factors to choose from. The luminaires are available in five housing and antiglare colors that can be freely combined. All luminaires with external drivers are powered with a transparent cable. Its features magnetically fastened end caps to provide a clean finish.

Technical Drawing
product data
  • Fixture Power
    28W/48W
  • Driving Current
    /
  • Lumen Output
    1800lm/3150lm
  • Fixture Efficiency
    64.2lm/w
    65.6lm/w
  • CRI
    90
  • Color Temperature
    3000K/4000K/5000K

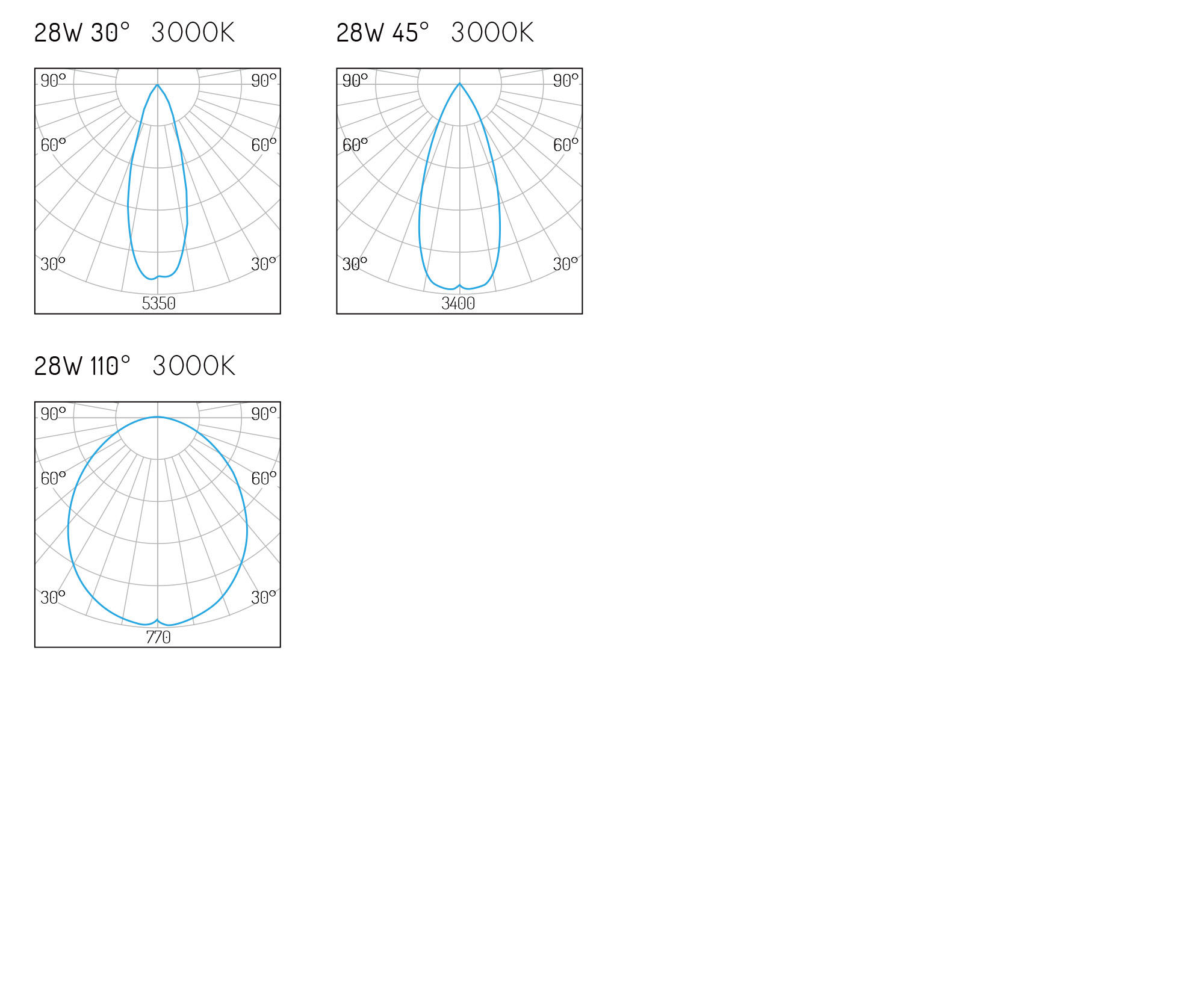

LIGHT DISTRIBUTION
  • Beam Angle
    30°/45°/110°
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
    0-10V Dimming
    DALI Dimming
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    L1200/1800*W43*H66mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP20
  • Housing Material
    Extruded Aluminium
  • Housing Color
    RAL9005
    Jet Black
    RAL9006
    hite Aluminium
    RAL9016
    Traffic White
    RAL1035
    Pearl Beige
Filter codes by
No.
All No.
06.1010
06.1011
Power
All Power
28W
48W
Current
All Current
CCT
All CCT
3000 K
4000 K
5000 K
Flux
All Flux
1800lm
3150lm
Beam
All Beam
110°
30°
45°
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
L1200*W43*H66mm
L1800*W43*H66mm
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
06.1010
28W
3000 K
1800lm
30°
L1200*W43*H66mm
06.1010
28W
3000 K
1800lm
45°
L1200*W43*H66mm
06.1010
28W
3000 K
1800lm
110°
L1200*W43*H66mm
06.1010
28W
4000 K
1800lm
30°
L1200*W43*H66mm
06.1010
28W
4000 K
1800lm
45°
L1200*W43*H66mm
06.1010
28W
4000 K
1800lm
110°
L1200*W43*H66mm
06.1010
28W
5000 K
1800lm
30°
L1200*W43*H66mm
06.1010
28W
5000 K
1800lm
45°
L1200*W43*H66mm
06.1010
28W
5000 K
1800lm
110°
L1200*W43*H66mm
06.1011
48W
3000 K
3150lm
30°
L1800*W43*H66mm
06.1011
48W
3000 K
3150lm
45°
L1800*W43*H66mm
06.1011
48W
3000 K
3150lm
110°
L1800*W43*H66mm
06.1011
48W
4000 K
3150lm
30°
L1800*W43*H66mm
06.1011
48W
4000 K
3150lm
45°
L1800*W43*H66mm
06.1011
48W
4000 K
3150lm
110°
L1800*W43*H66mm
06.1011
48W
5000 K
3150lm
30°
L1800*W43*H66mm
06.1011
48W
5000 K
3150lm
45°
L1800*W43*H66mm
06.1011
48W
5000 K
3150lm
110°
L1800*W43*H66mm
