SOLE DI
06.2020/06.1021

SOLE DI

The ‘SOLE DI’ is a Direct & Indirect luminaire, The lighting system uses premium materials including an extruded aluminum housing, high-transmission acrylic lens and state-of-the-art LEDs. Two optical options are available, one is the floodlight with regular version and microprismatic version, and the other is the chrome reflector version with imported chips and lens. It is the perfect choice to showcase high-end hotel lobbies, class A offices, universities and retail spaces. The luminaire is available in multiple configurations and can be row mounted seamlessly and wired end-to-end. Also available are lighted corners, daylight and occupancy sensors as well as a variety of mounting accessories. It owns built-in driver and multiple offers of optics. The aluminum pendant available in various lengths with a color temperature selectable switch, provides modern & elegant lighting. It is the best choice for both task lighting and general lighting in office lighting design. Indirect lighting can only be turned on during the bright day to work on the task area, while indirect lighting can be used during the lunch break to provide emotional atmosphere and comfort

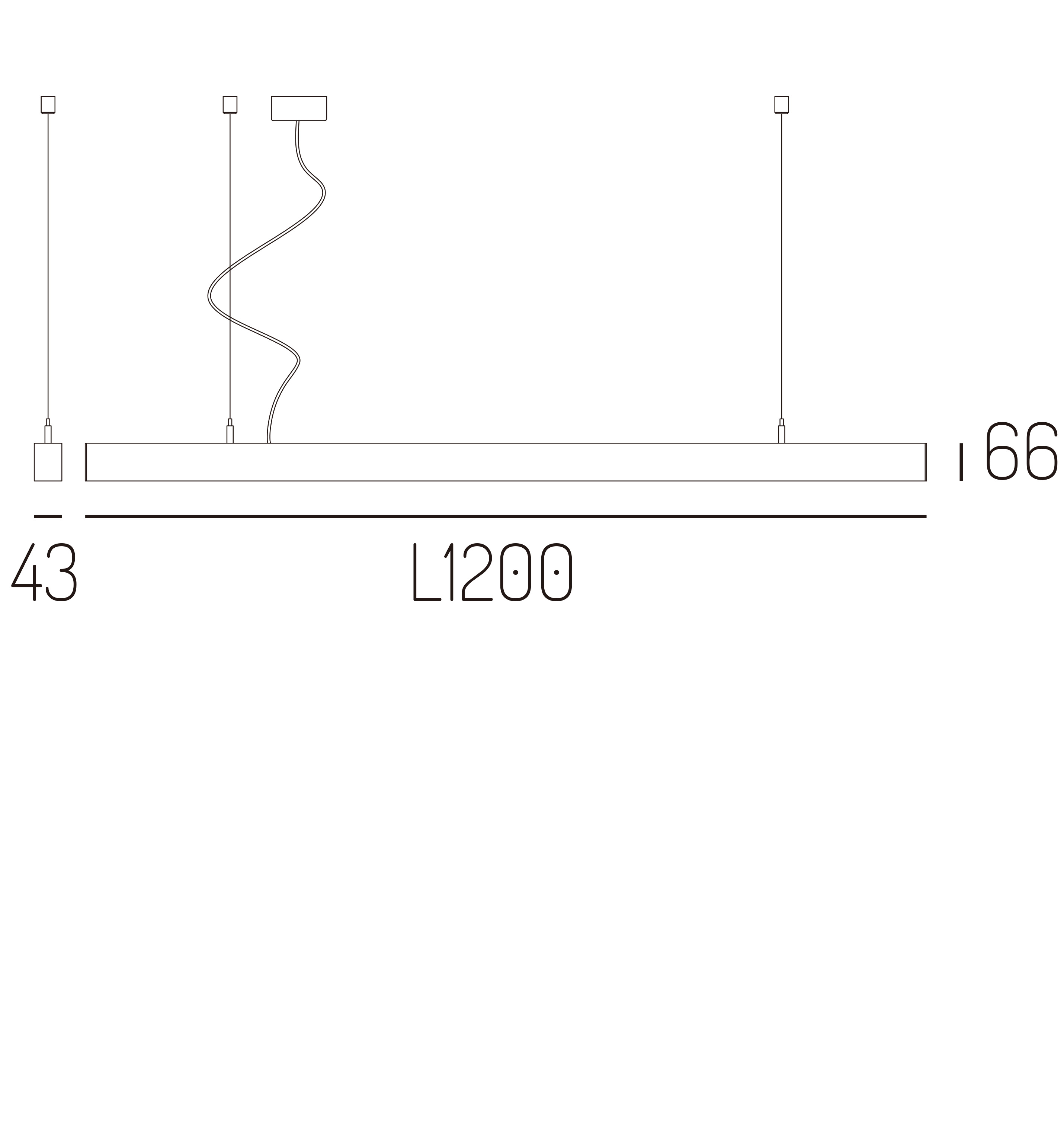

Technical Drawing
product data
  • Fixture Power
    48W/72W
  • Driving Current
    /
  • Lumen Output
    3150lm/4725lm
  • Fixture Efficiency
    65.6lm/w
  • CRI
    90
  • Color Temperature
    3000K/4000K/5000K

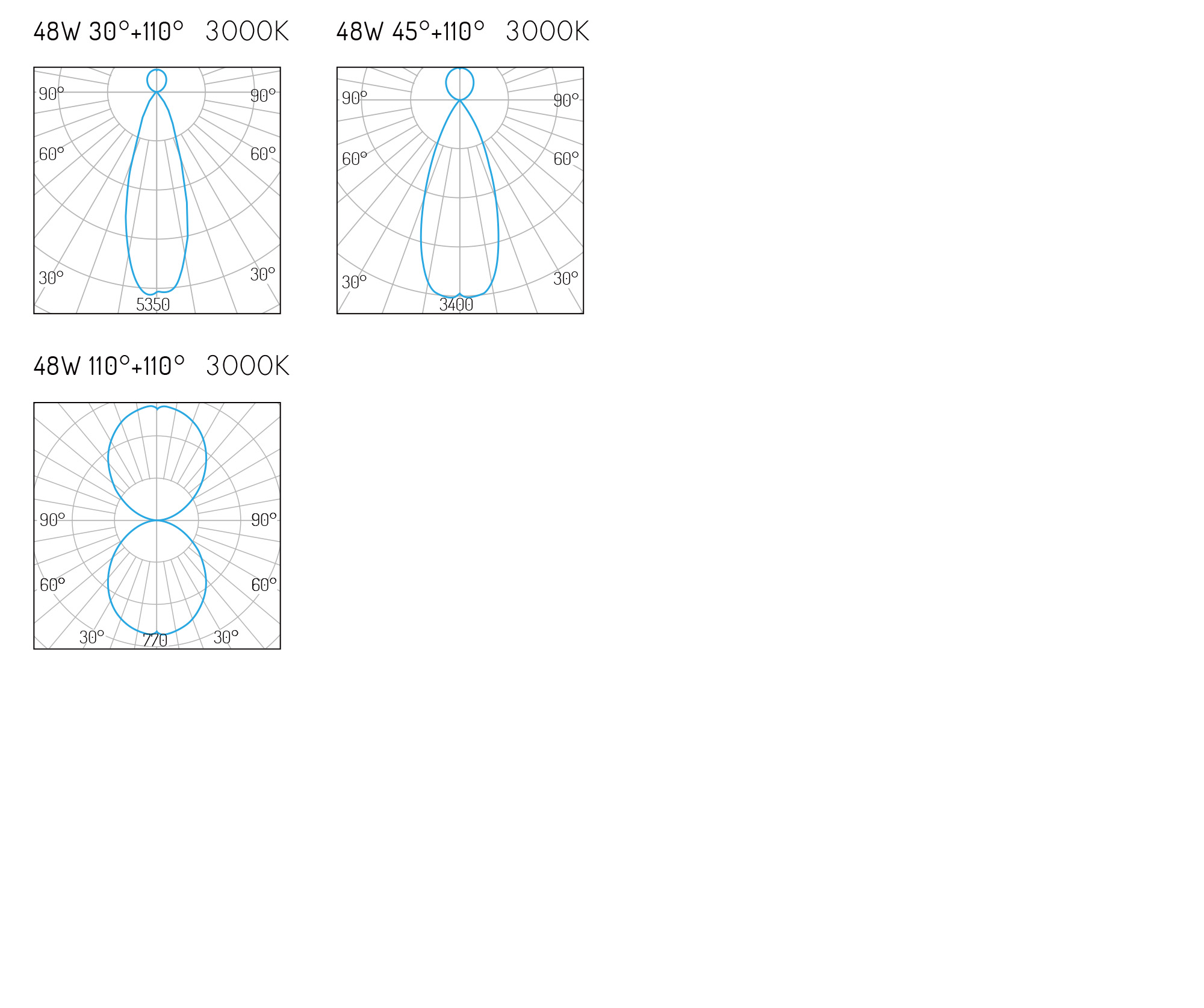

LIGHT DISTRIBUTION
  • Beam Angle
    30°+110°
    45°+110°
    110°+110°
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
    0-10V Dimming
    DALI Dimming
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    L1200/1800*W43*H132mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP20
  • Housing Material
    Extruded Aluminium
  • Housing Color
    RAL9005
    Jet Black
    RAL9006
    White Aluminium
    RAL9016
    Traffic White
    RAL1035
    Pearl Beige
Filter codes by
No.
All No.
06.2020
06.2021
Power
All Power
48W
72W
Current
All Current
CCT
All CCT
3000 K
4000 K
5000 K
Flux
All Flux
3150lm
4725lm
Beam
All Beam
110°+110°
30°+110°
45°+110°
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
L1200*W43*H132mm
L1800*W43*H132mm
L1800*W43*H132mmv
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
06.2020
48W
3000 K
3150lm
30°+110°
L1200*W43*H132mm
06.2020
48W
3000 K
3150lm
45°+110°
L1200*W43*H132mm
06.2020
48W
3000 K
3150lm
110°+110°
L1200*W43*H132mm
06.2020
48W
4000 K
3150lm
30°+110°
L1200*W43*H132mm
06.2020
48W
4000 K
3150lm
45°+110°
L1200*W43*H132mm
06.2020
48W
4000 K
3150lm
110°+110°
L1200*W43*H132mm
06.2020
48W
5000 K
3150lm
30°+110°
L1200*W43*H132mm
06.2020
48W
5000 K
3150lm
45°+110°
L1200*W43*H132mm
06.2020
48W
5000 K
3150lm
110°+110°
L1200*W43*H132mm
06.2021
72W
3000 K
4725lm
30°+110°
L1800*W43*H132mm
06.2021
72W
3000 K
4725lm
45°+110°
L1800*W43*H132mm
06.2021
72W
3000 K
4725lm
110°+110°
L1800*W43*H132mmv
06.2021
72W
4000 K
4725lm
30°+110°
L1800*W43*H132mm
06.2021
72W
4000 K
4725lm
45°+110°
L1800*W43*H132mm
06.2021
72W
4000 K
4725lm
110°+110°
L1800*W43*H132mm
06.2021
72W
5000 K
4725lm
30°+110°
L1800*W43*H132mm
06.2021
72W
5000 K
4725lm
45°+110°
L1800*W43*H132mm
06.2021
72W
5000 K
4725lm
110°+110°
L1800*W43*H132mm
