Linear Spot 12<br>Adjustable

BULLONA

03.2071

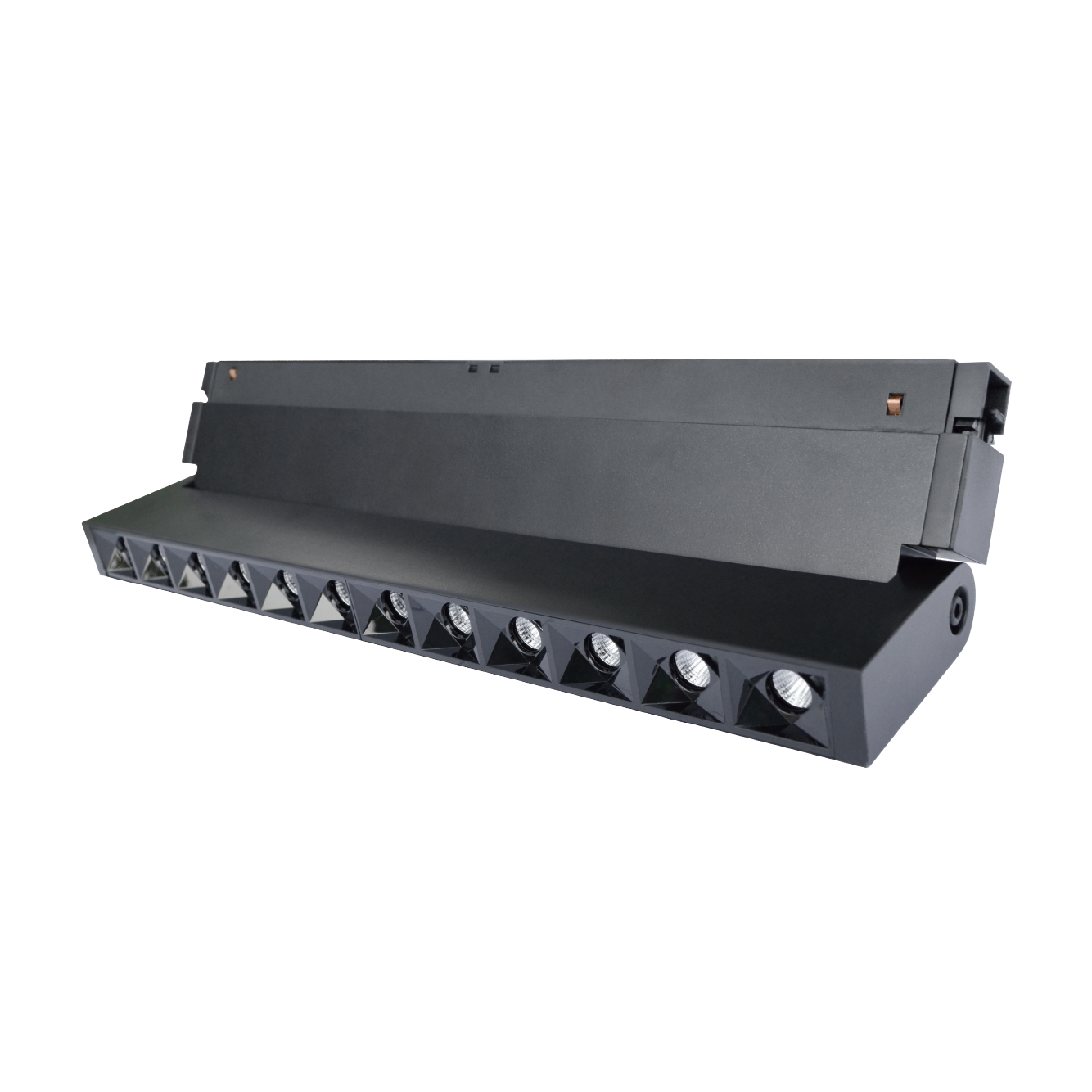

Linear Spot 12-Adjustable

Bullona is a magnetic track system that provides users comprehensive lighting tools in a flexible and save way. Only 24mm width by increasing the contact area of the copper core to increase the system line run. Suspension, recessed and surface mounting accessories can embrace complex architectural structures imperceptibly. The light is pure and controllable. A variety of form factors covering circular to linear shape. All with desired light beam at hand for your lighting scheme.

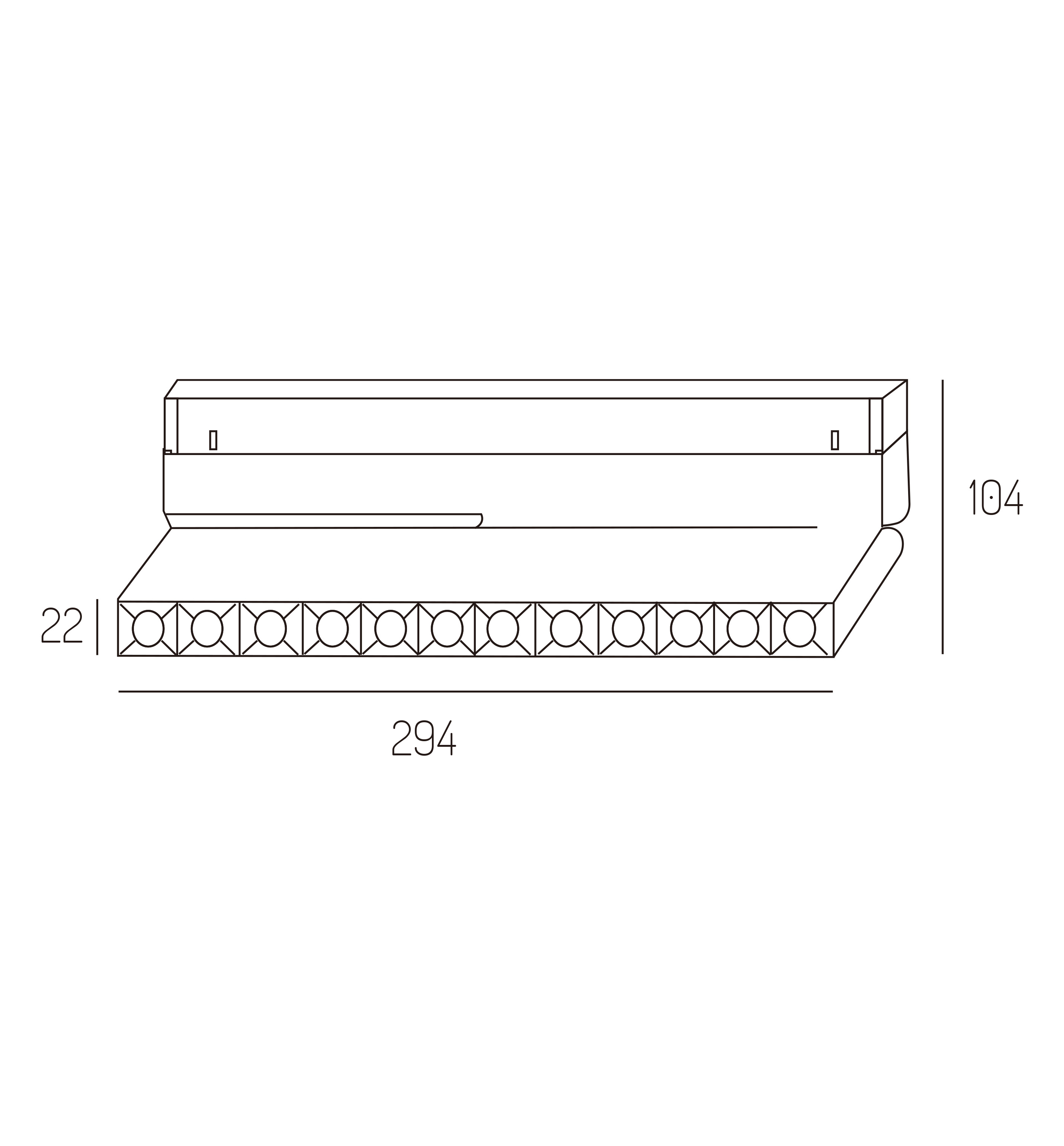

Technical Drawing

product data

Fixture Power
12W/24W
Driving Current
/
Lumen Output
812lm/1495lm
Fixture Efficiency
67.6m/w
62.3m/w
CRI
90
Color Temperature
2700K/3000K/4000K
Tunable White
(2700-5000K)

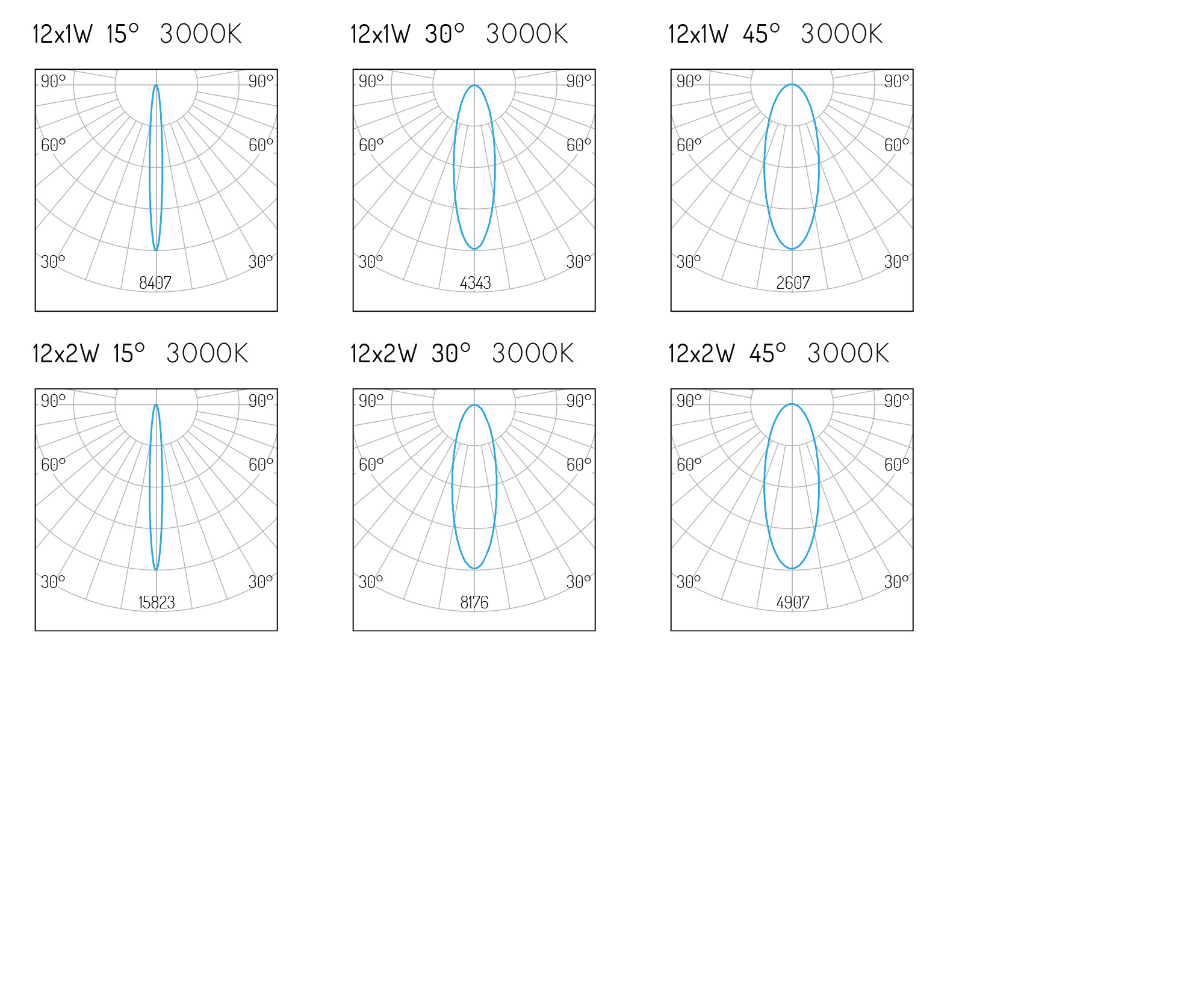

LIGHT DISTRIBUTION

Beam Angle
15°/30°/45°
Source Type
Citizen COB LED
Control Method
Not Dimmable
DALI DT6
DALI DT6(24V)
0-10V Dimming(24V)
DALI DT8
MacAdam Ellipse
<3 SDCM
Product Dimensions
L294*W22*H104mm
Hole Size
/
Weight
/
IP Rating
IP20
Housing Material
Extruded Aluminium
Housing Color
RAL9005
Jet Black
RAL9016
Traffic White

Filter codes by

No.

All No.

Power

All Power

12x1W

12x2W

Current

All Current

CCT

All CCT

2700K

3000K

4000K

Tunable White (2700-5000K)

Flux

All Flux

1495lm

812lm

Beam

All Beam

15°

30°

45°

Length

All Length

LED Qty.

All LED Qty.

Cut out

All Cut out

Size

All Size

L294*W22*H104mm

Type

All Type

Voltage

All Voltage

No.

Power

Current

CCT

Flux

Beam

Length

LED Qty.

Cut out

Size

Type

Voltage

12x1W

2700K

812lm

15°

L294*W22*H104mm

12x1W

3000K

812lm

15°

L294*W22*H104mm

12x1W

4000K

812lm

15°

L294*W22*H104mm

12x1W

Tunable White (2700-5000K)

812lm

15°

L294*W22*H104mm

12x1W

2700K

812lm

30°

L294*W22*H104mm

12x1W

3000K

812lm

30°

L294*W22*H104mm

12x1W

4000K

812lm

30°

L294*W22*H104mm

12x1W

Tunable White (2700-5000K)

812lm

30°

L294*W22*H104mm

12x1W

2700K

812lm

45°

L294*W22*H104mm

12x1W

3000K

812lm

45°

L294*W22*H104mm

12x1W

4000K

812lm

45°

L294*W22*H104mm

12x1W

Tunable White (2700-5000K)

812lm

45°

L294*W22*H104mm

12x2W

2700K

1495lm

15°

L294*W22*H104mm

12x2W

3000K

1495lm

15°

L294*W22*H104mm

12x2W

4000K

1495lm

15°

L294*W22*H104mm

12x2W

Tunable White (2700-5000K)

1495lm

15°

L294*W22*H104mm

12x2W

2700K

1495lm

30°

L294*W22*H104mm

12x2W

3000K

1495lm

30°

L294*W22*H104mm

12x2W

4000K

1495lm

30°

L294*W22*H104mm

12x2W

Tunable White (2700-5000K)

1495lm

30°

L294*W22*H104mm

12x2W

2700K

1495lm

45°

L294*W22*H104mm

12x2W

3000K

1495lm

45°

L294*W22*H104mm

12x2W

4000K

1495lm

45°

L294*W22*H104mm

12x2W

Tunable White (2700-5000K)

1495lm

45°

L294*W22*H104mm

Reset all filters

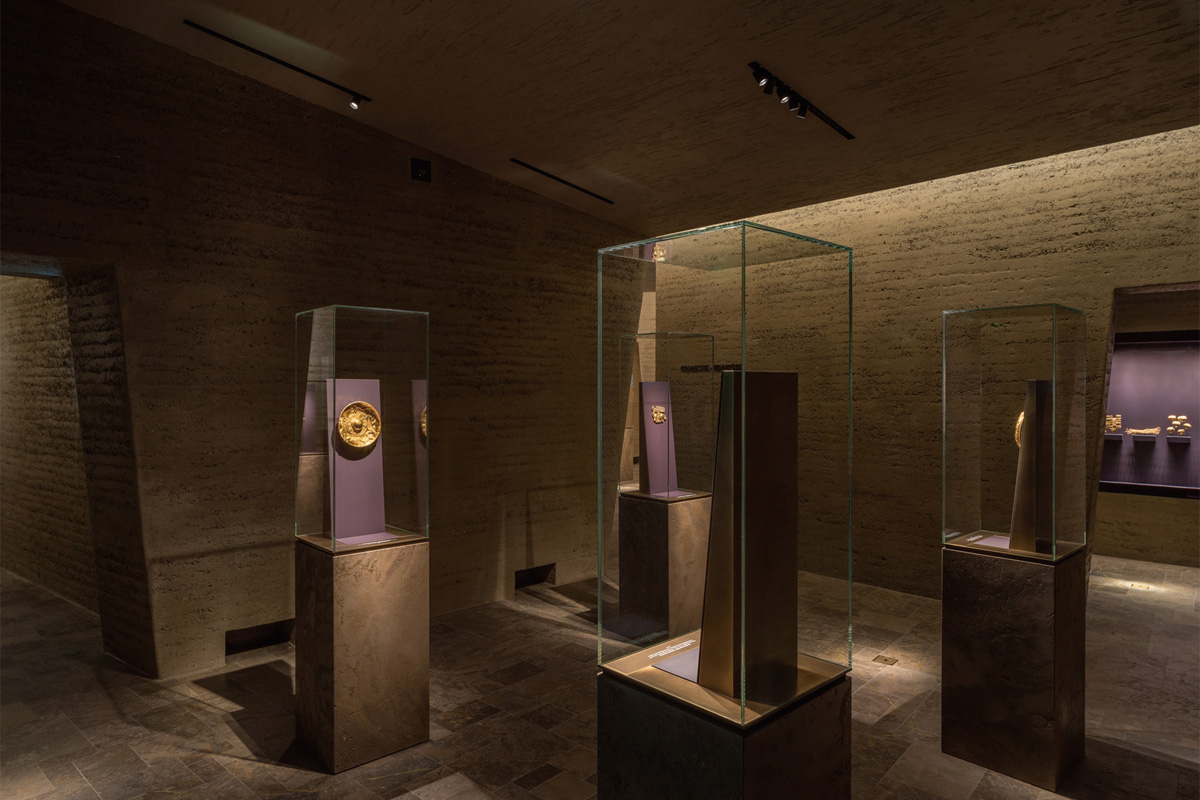

Inspiration
