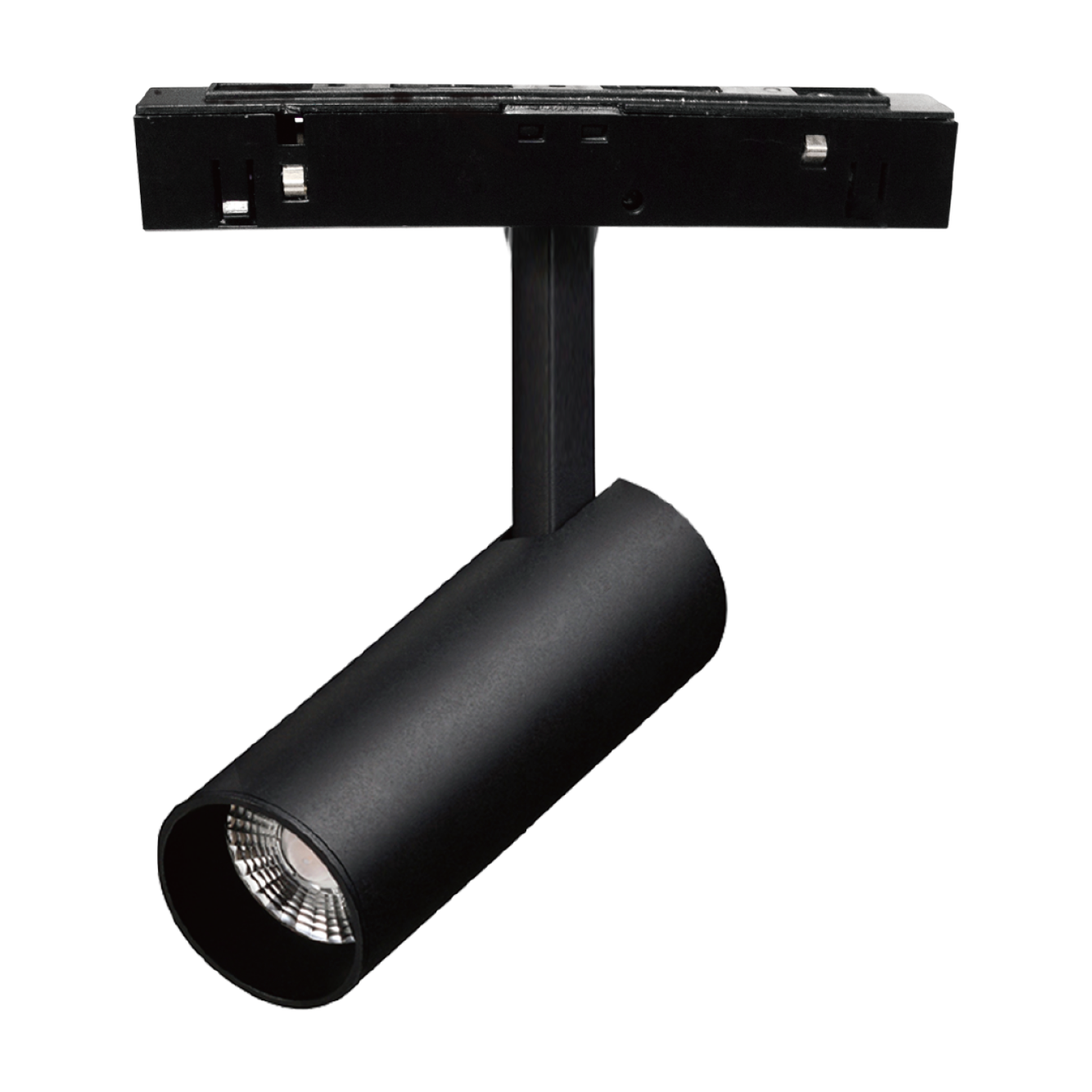

SPOT 55

Bullona is a magnetic track system that provides users comprehensive lighting tools in a flexible and save way. Only 24mm width by increasing the contact area of the copper core to increase the system line run. Suspension, recessed and surface mounting accessories can embrace complex architectural structures imperceptibly. The light is pure and controllable. A variety of form factors covering circular to linear shape. All with desired light beam at hand for your lighting scheme.

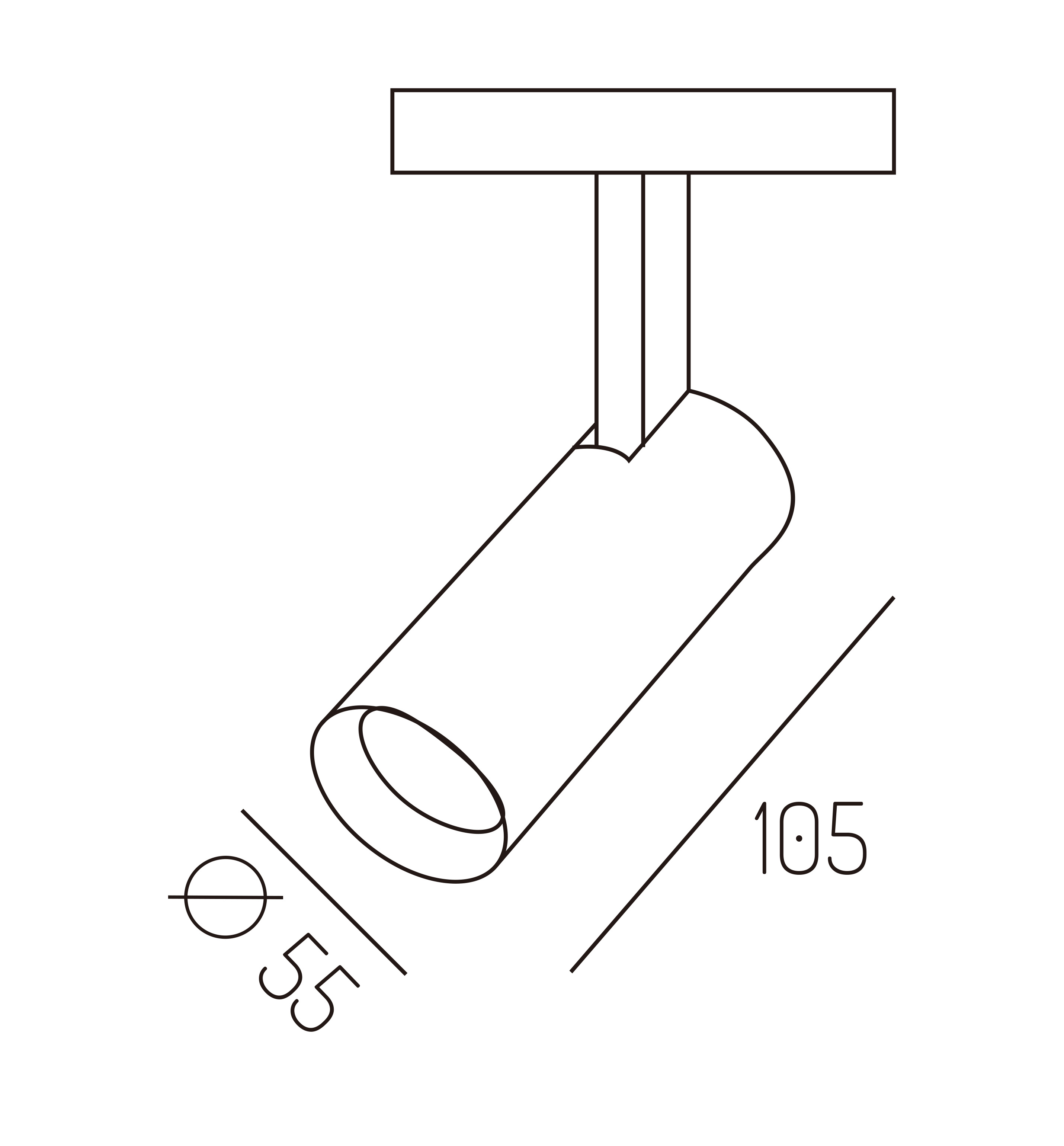

Technical Drawing
product data
  • Fixture Power
    10W
  • Driving Current
    /
  • lumen Output
    760lm
  • Fixture Efficiency
    76.0lm/w
  • CRI
    90
  • Color Temperature
    2700K/3000K/4000K
    Tunable White
    (2700-5000K)

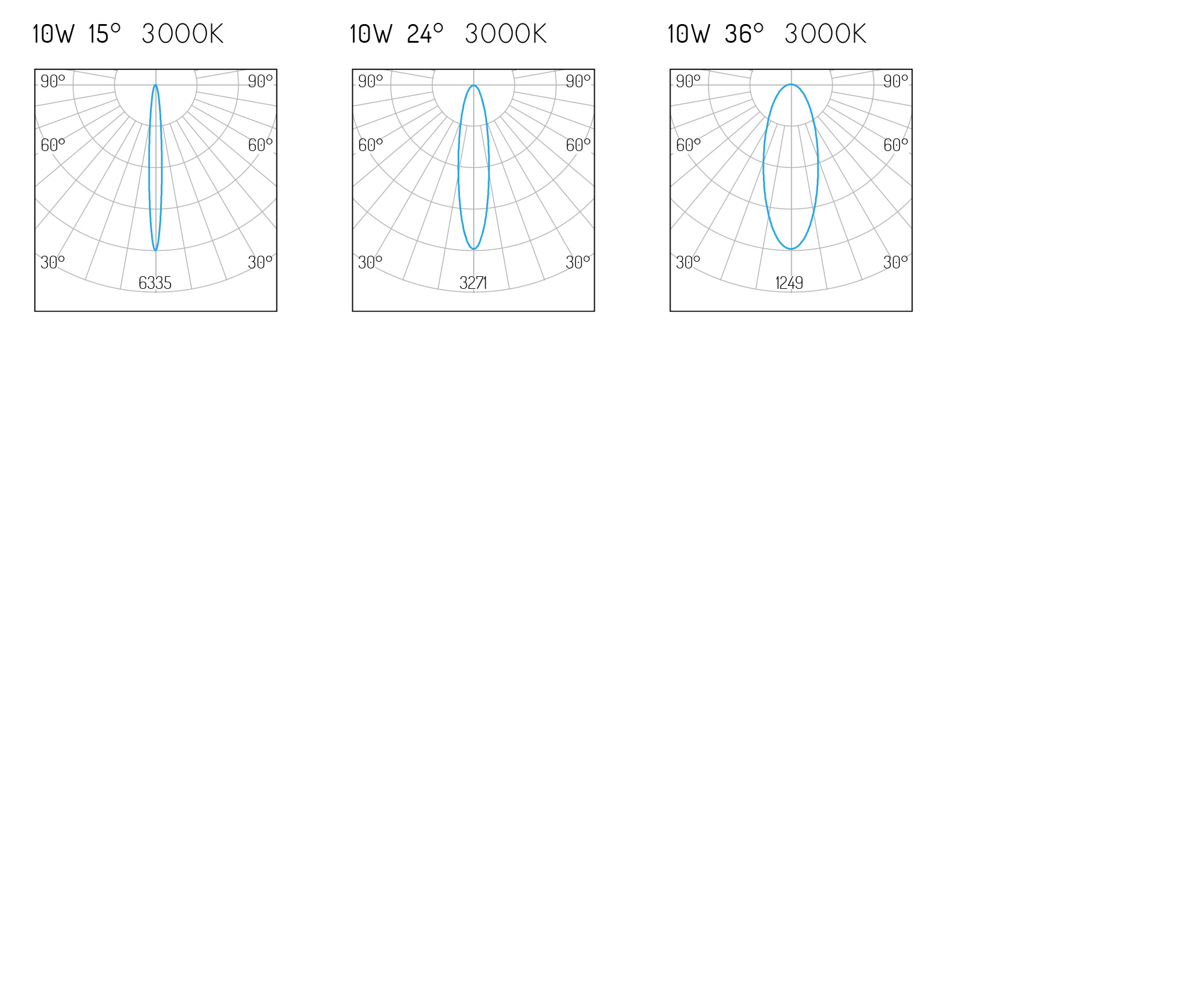

LIGHT DISTRIBUTION
  • Beam Angle
    15°/24°/36°
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
    DALI DT6
    DALI DT6(24V)
    0-10V Dimming(24V)
    DAL IDT8
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    D55*H105mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP20
  • Housing Material
    Extruded Aluminium
  • Housing Color
    RAL9005
    Jet Black
    RAL9016
    Traffic White
Filter codes by
No.
All No.
Power
All Power
10W
Current
All Current
CCT
All CCT
2700K
3000K
4000K
Tunable White (2700-5000K)
Flux
All Flux
760lm
Beam
All Beam
15°
24°
36°
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
D55*L105mm
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
10W
2700K
760lm
15°
D55*L105mm
Specifications Installation instructions IES
10W
3000K
760lm
15°
D55*L105mm
Specifications Installation instructions IES
10W
4000K
760lm
15°
D55*L105mm
Specifications Installation instructions IES
10W
Tunable White (2700-5000K)
760lm
15°
D55*L105mm
Specifications Installation instructions IES
10W
2700K
760lm
24°
D55*L105mm
Specifications Installation instructions IES
10W
3000K
760lm
24°
D55*L105mm
Specifications Installation instructions IES
10W
4000K
760lm
24°
D55*L105mm
Specifications Installation instructions IES
10W
Tunable White (2700-5000K)
760lm
24°
D55*L105mm
Specifications Installation instructions IES
10W
2700K
760lm
36°
D55*L105mm
Specifications Installation instructions IES
10W
3000K
760lm
36°
D55*L105mm
Specifications Installation instructions IES
10W
4000K
760lm
36°
D55*L105mm
Specifications Installation instructions IES
10W
Tunable White (2700-5000K)
760lm
36°
D55*L105mm
Specifications Installation instructions IES
Reset all filters

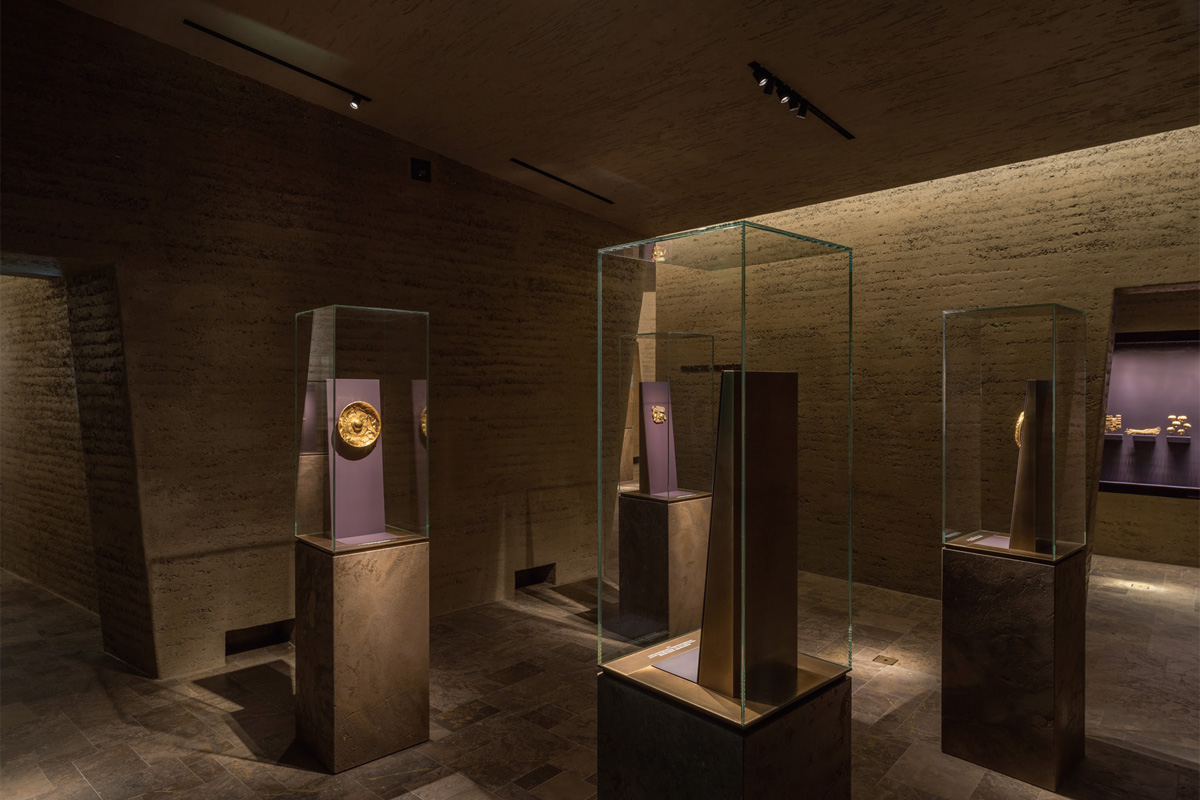

Inspiration
