Linear Spot 12<br>Fixed

BULLONA

03.2061

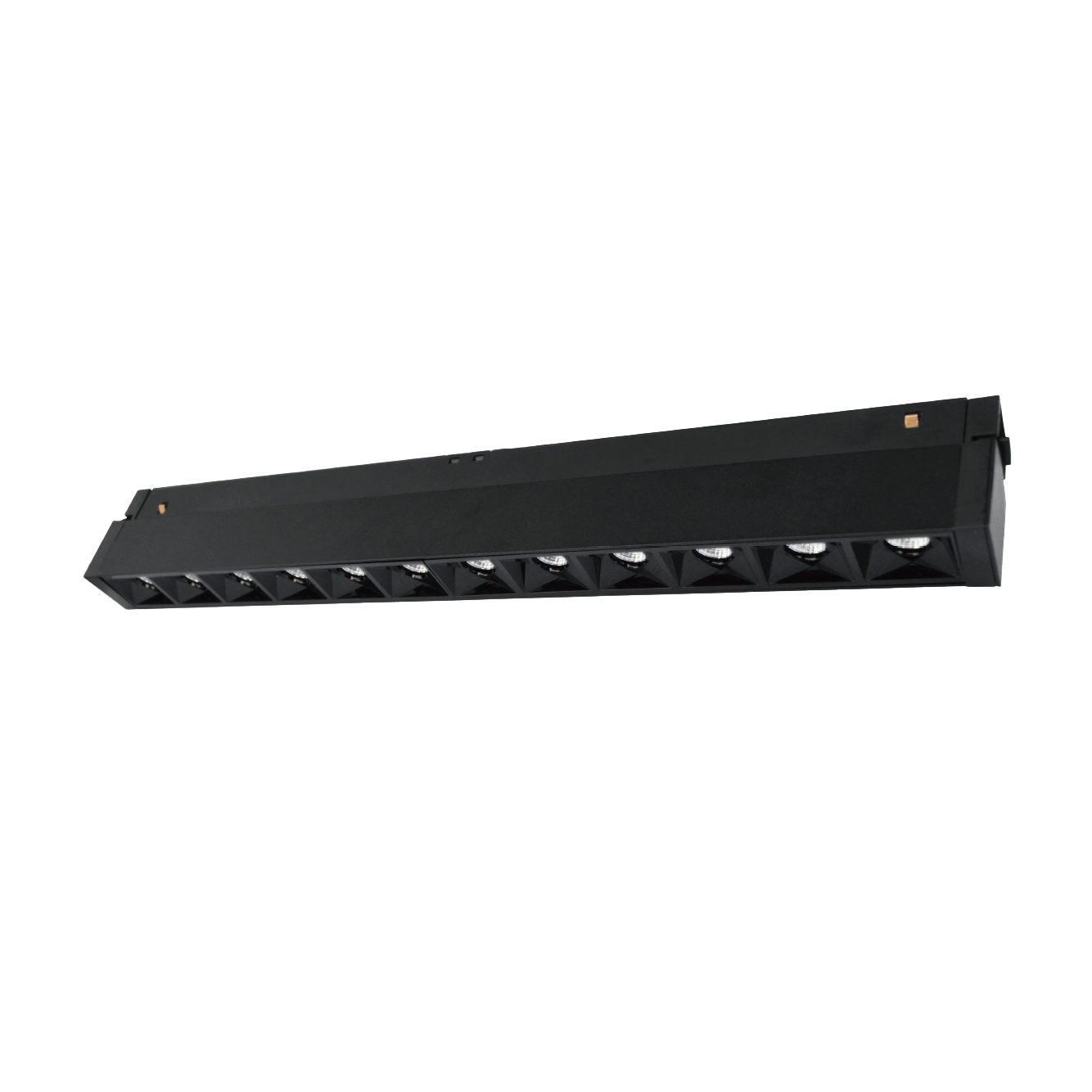

Linear Spot 12-Fixed

Bullona is a magnetic track system that provides users comprehensive lighting tools in a flexible and save way. Only 24mm width by increasing the contact area of the copper core to increase the system line run. Suspension, recessed and surface mounting accessories can embrace complex architectural structures imperceptibly. The light is pure and controllable. A variety of form factors covering circular to linear shape. All with desired light beam at hand for your lighting scheme.

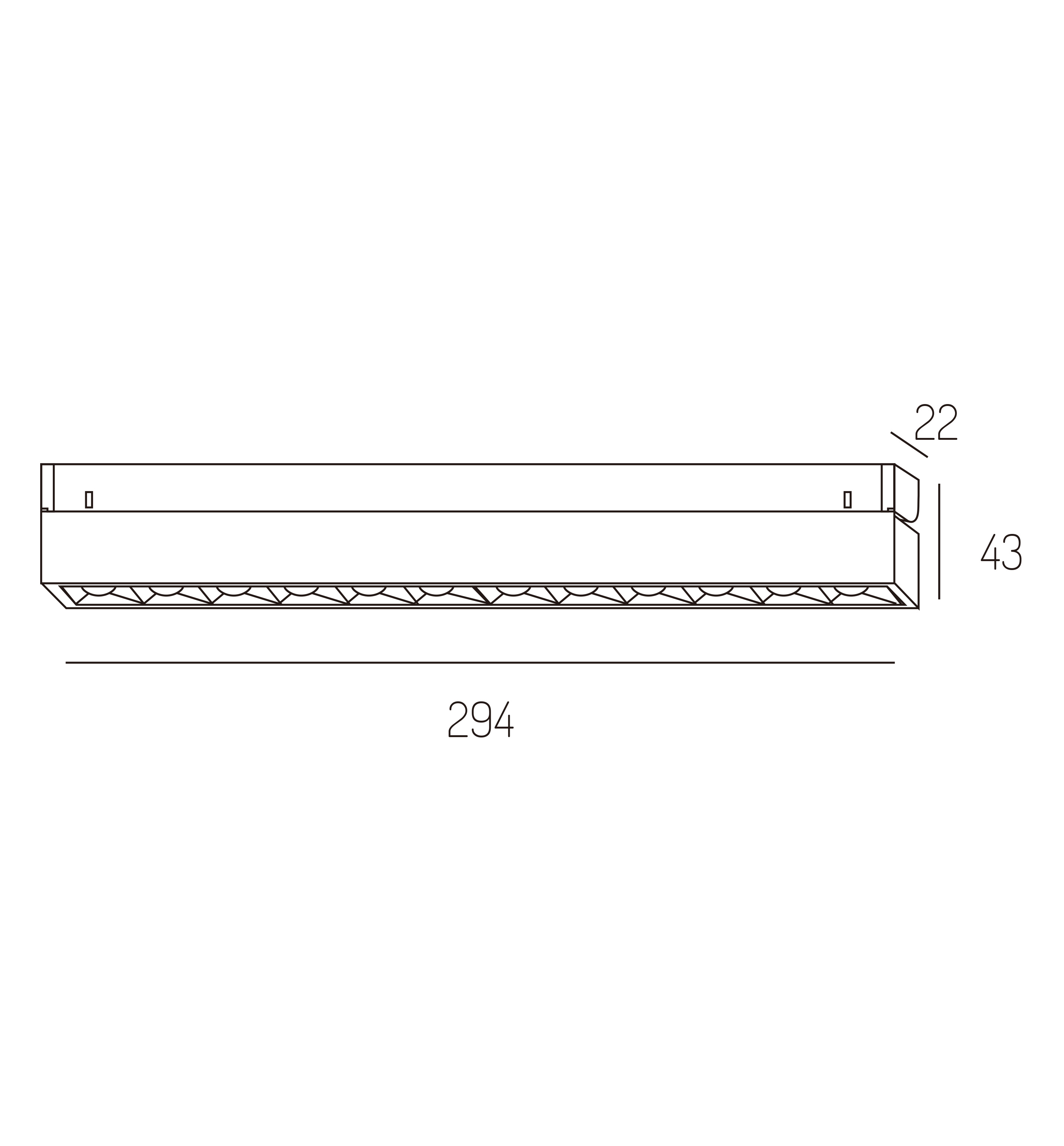

Technical Drawing

product data

Fixture Power
12W/20W
Driving Current
/
Lumen Output
812lm/1255lm
Fixture Efficiency
67.6m/w
62.7m/w
CRI
90
Color Temperature
2700K/3000K/4000K
Tunable White
(2700-5000K)

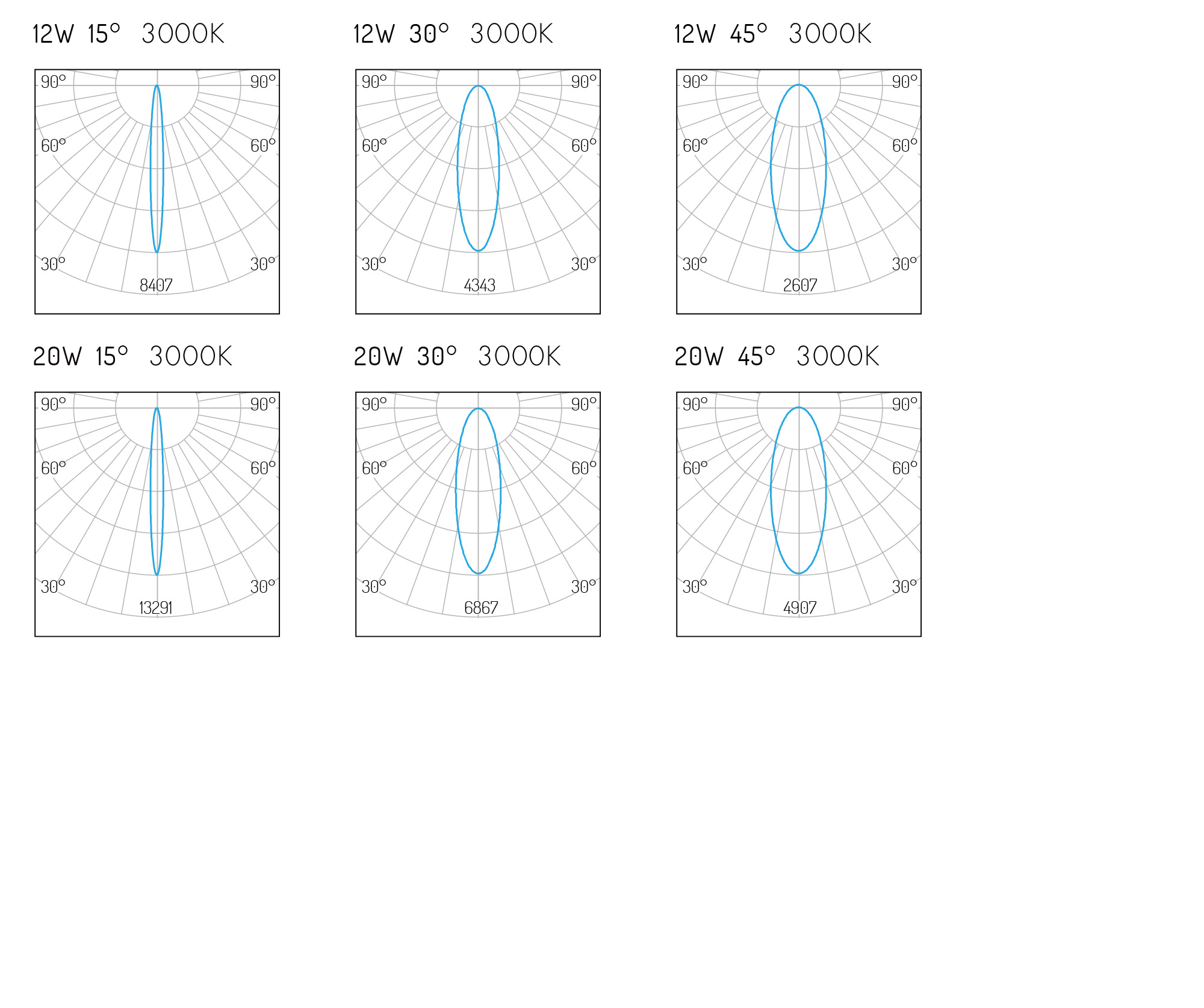

LIGHT DISTRIBUTION

Beam Angle
15°/30°/45°
Source Type
Citizen COB LED
Control Method
Not Dimmable
DALI DT6
DALI DT6(24V)
0-10V Dimming(24V)
DALI DT8
MacAdam Ellipse
<3 SDCM
Product Dimensions
L294*W22*H43mm
Hole Size
/
Weight
/
IP Rating
IP20
Housing Material
Extruded Aluminium
Housing Color
RAL9005
Jet Black
RAL9016
Traffic White

Filter codes by

No.

All No.

Power

All Power

12W

20W

Current

All Current

CCT

All CCT

2700K

3000K

4000K

Tunable White (2700-5000K)

Flux

All Flux

1255lm

812lm

Beam

All Beam

15°

30°

45°

Length

All Length

LED Qty.

All LED Qty.

Cut out

All Cut out

Size

All Size

L294*W22*H43mm

Type

All Type

Voltage

All Voltage

No.

Power

Current

CCT

Flux

Beam

Length

LED Qty.

Cut out

Size

Type

Voltage

12W

2700K

812lm

15°

L294*W22*H43mm

12W

3000K

812lm

15°

L294*W22*H43mm

12W

4000K

812lm

15°

L294*W22*H43mm

12W

Tunable White (2700-5000K)

812lm

15°

L294*W22*H43mm

12W

2700K

812lm

30°

L294*W22*H43mm

12W

3000K

812lm

30°

L294*W22*H43mm

12W

4000K

812lm

30°

L294*W22*H43mm

12W

Tunable White (2700-5000K)

812lm

30°

L294*W22*H43mm

12W

2700K

812lm

45°

L294*W22*H43mm

12W

3000K

812lm

45°

L294*W22*H43mm

12W

4000K

812lm

45°

L294*W22*H43mm

12W

Tunable White (2700-5000K)

812lm

45°

L294*W22*H43mm

20W

2700K

1255lm

15°

L294*W22*H43mm

20W

3000K

1255lm

15°

L294*W22*H43mm

20W

4000K

1255lm

15°

L294*W22*H43mm

20W

Tunable White (2700-5000K)

1255lm

15°

L294*W22*H43mm

20W

2700K

1255lm

30°

L294*W22*H43mm

20W

3000K

1255lm

30°

L294*W22*H43mm

20W

4000K

1255lm

30°

L294*W22*H43mm

20W

Tunable White (2700-5000K)

1255lm

30°

L294*W22*H43mm

20W

2700K

1255lm

45°

L294*W22*H43mm

20W

3000K

1255lm

45°

L294*W22*H43mm

20W

4000K

1255lm

45°

L294*W22*H43mm

20W

Tunable White (2700-5000K)

1255lm

45°

L294*W22*H43mm

Reset all filters

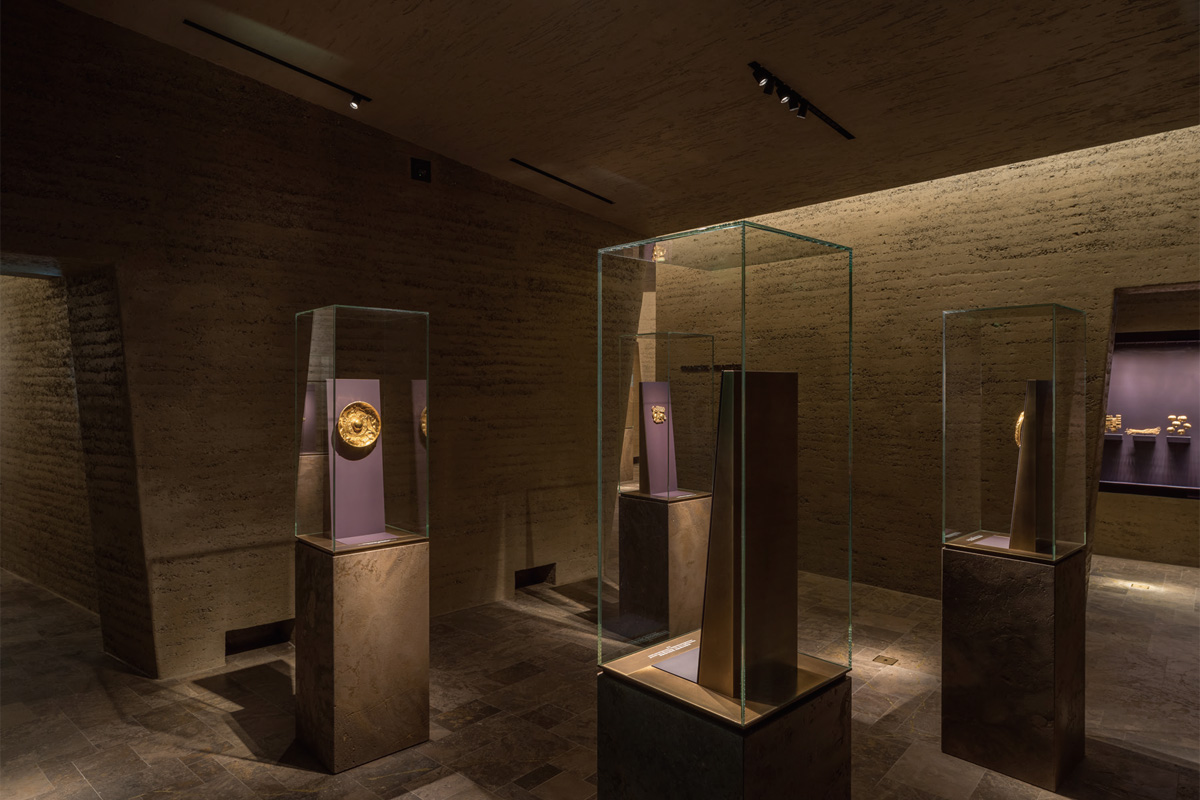

Inspiration
