ALBA
01.0610
Fixed Downlight - Trim & Round
These fixed downlights have an employing die-casting technology and a very firm structure. The surface is treated by varnishing, with a very durable color. By using the newest generation of high performance CITIZEN COB LED chips, they have a low heat resistance and high lighting efficiency. The products in the family employ highly accurate optics to achieve high efficiency and superior lighting spot effect, with anti-glare technology (UGR<19). The installation is quick and convenient thanks to the additional components of the downlights: stainless-steel clips, folded brackets, or both.

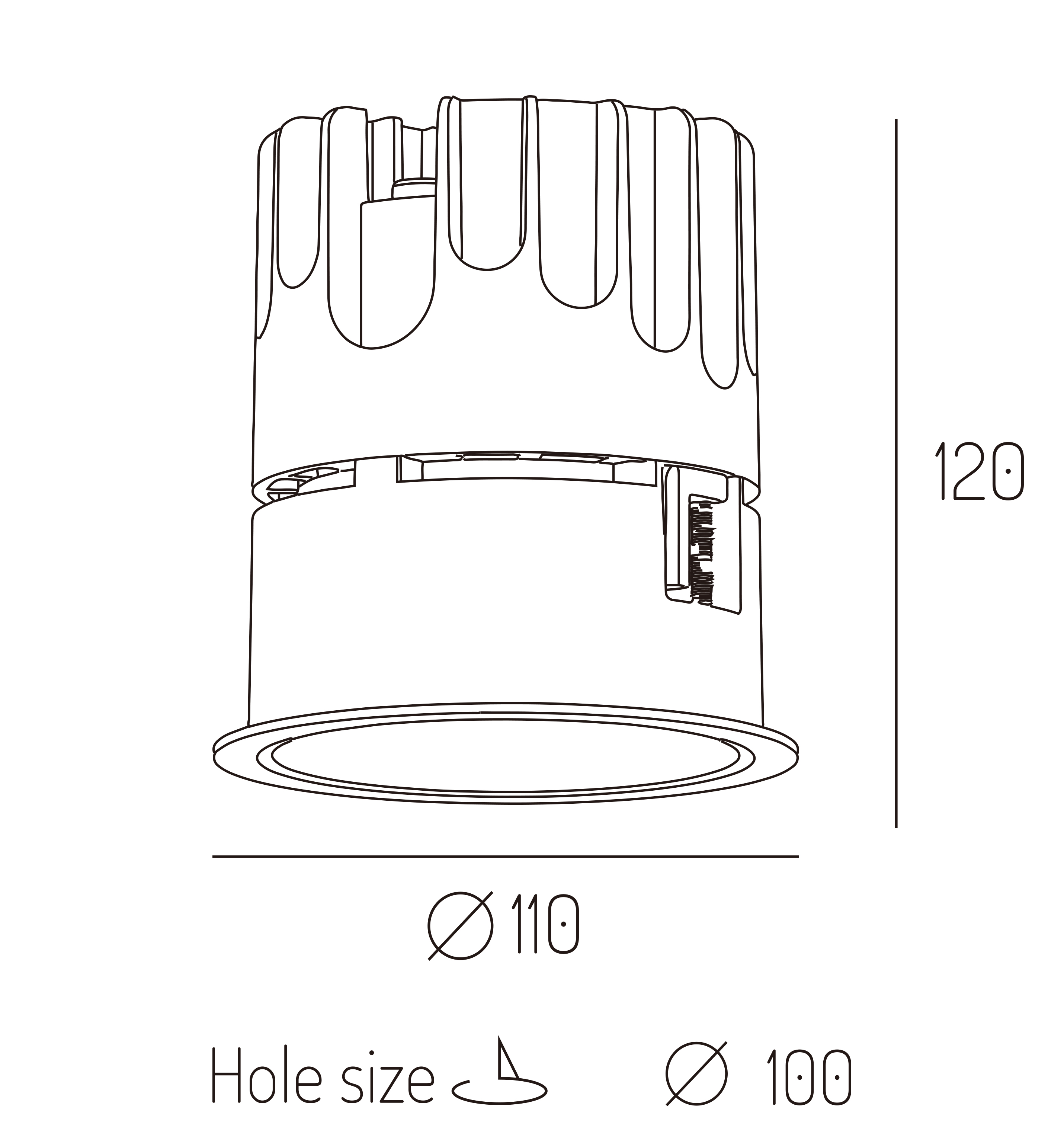

Technical Drawing
product data
  • Fixture Power
    20W/24W/28W
  • Driving Current
    500mA/600mA/700mA
  • Lumen Output
    1400lm/1550lm/1850lm
  • Fixture Efficiency
    70.0lm/w
    64.5lm/w
    66.0lm/w
  • CRI
    90
  • Color Temperature
    2700K/3000K/4000K

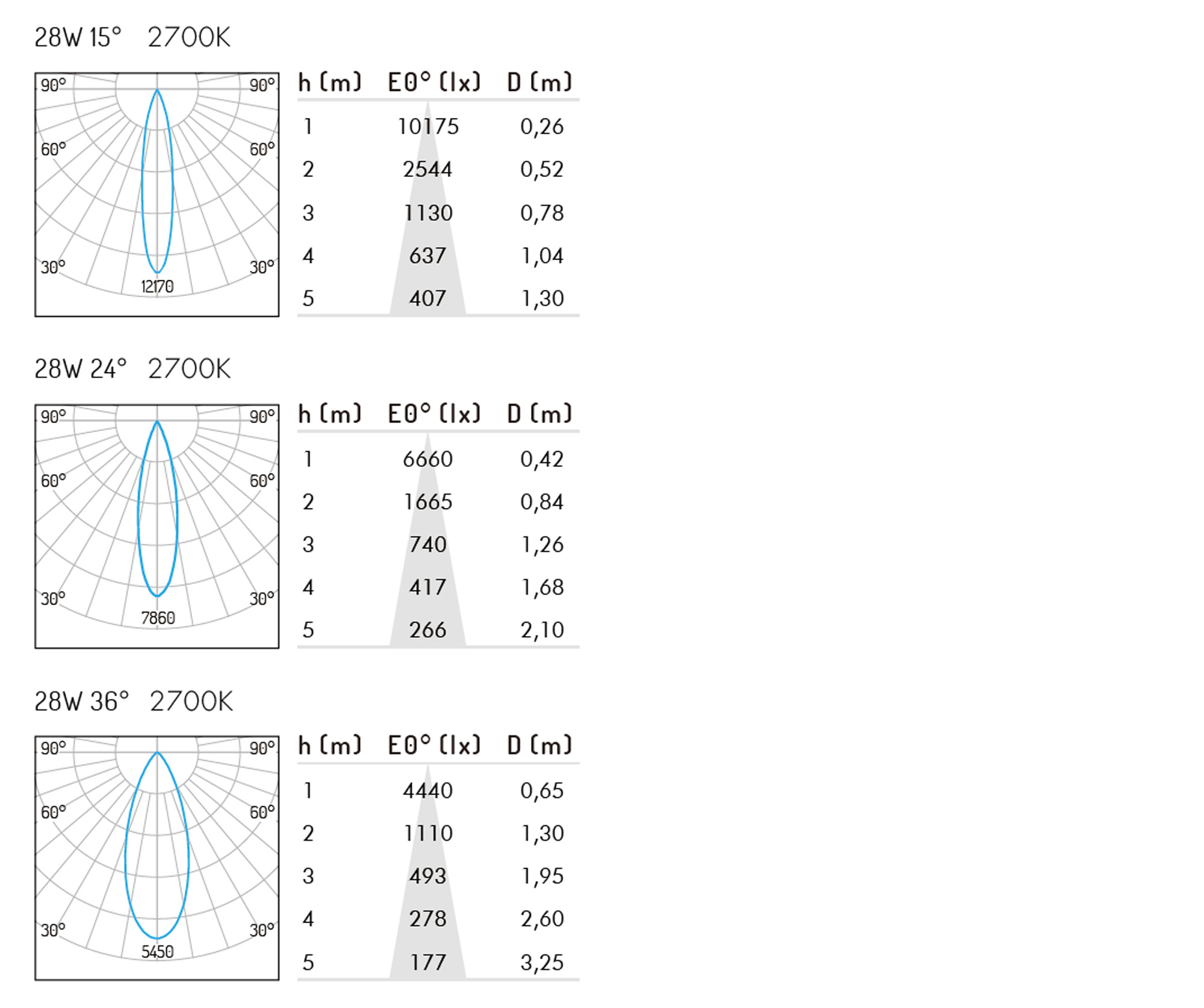

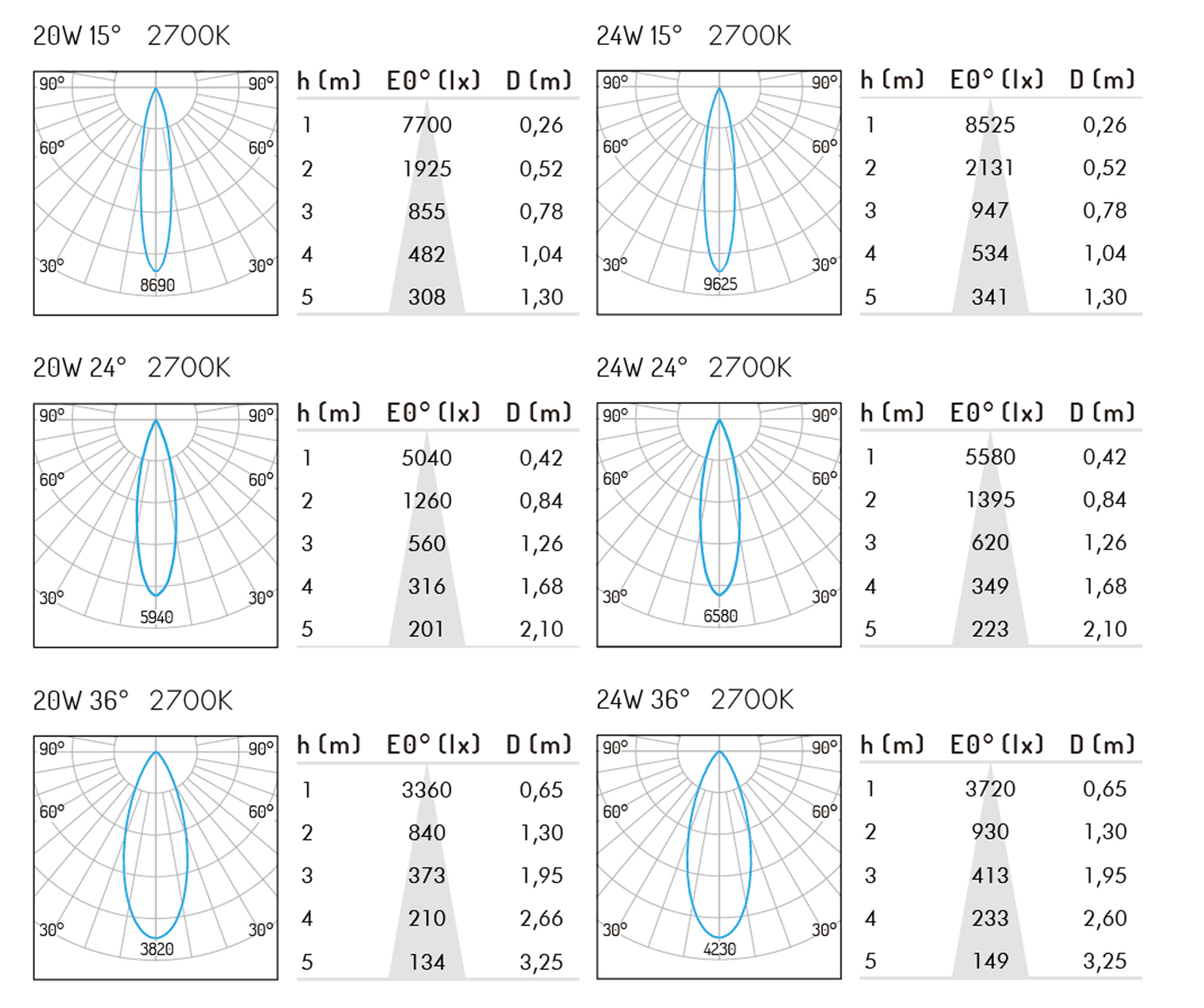

LIGHT DISTRIBUTION
  • Beam Angle
    15°/24°/36°
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
    Phase-cut Dimming
    0-10V Dimming
    DALI Dimming
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    Ø110*H120mm
  • Hole Size
    Ø100mm
  • Weight
    0.97kg
  • IP Rating
    IP20
  • Housing Material
    Die-cast Aluminium
  • Housing Color
    RAL9006
    White Aluminium
    RAL9016
    Traffic White
    RAL9005
    Jet Black
Reflector Color
Optical Accessories
Filter codes by
No.
All No.
Power
All Power
20W
24W
28W
Current
All Current
500mA
600mA
700mA
CCT
All CCT
2700K
3000K
4000K
Flux
All Flux
1400lm
1550lm
1850lm
Beam
All Beam
15°
24°
36°
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
20W
500mA
2700K
1400lm
15°
20W
500mA
3000K
1400lm
15°
20W
500mA
4000K
1400lm
15°
20W
500mA
2700K
1400lm
24°
20W
500mA
3000K
1400lm
24°
20W
500mA
4000K
1400lm
24°
20W
500mA
2700K
1400lm
36°
20W
500mA
3000K
1400lm
36°
20W
500mA
4000K
1400lm
36°
24W
600mA
2700K
1550lm
15°
24W
600mA
3000K
1550lm
15°
24W
600mA
4000K
1550lm
15°
24W
600mA
2700K
1550lm
24°
24W
600mA
3000K
1550lm
24°
24W
600mA
4000K
1550lm
24°
24W
600mA
2700K
1550lm
36°
24W
600mA
3000K
1550lm
36°
24W
600mA
4000K
1550lm
36°
28W
700mA
2700K
1850lm
15°
28W
700mA
3000K
1850lm
15°
28W
700mA
4000K
1850lm
15°
28W
700mA
2700K
1850lm
24°
28W
700mA
3000K
1850lm
24°
28W
700mA
4000K
1850lm
24°
28W
700mA
2700K
1850lm
36°
28W
700mA
3000K
1850lm
36°
28W
700mA
4000K
1850lm
36°
