ALBA
01.0411

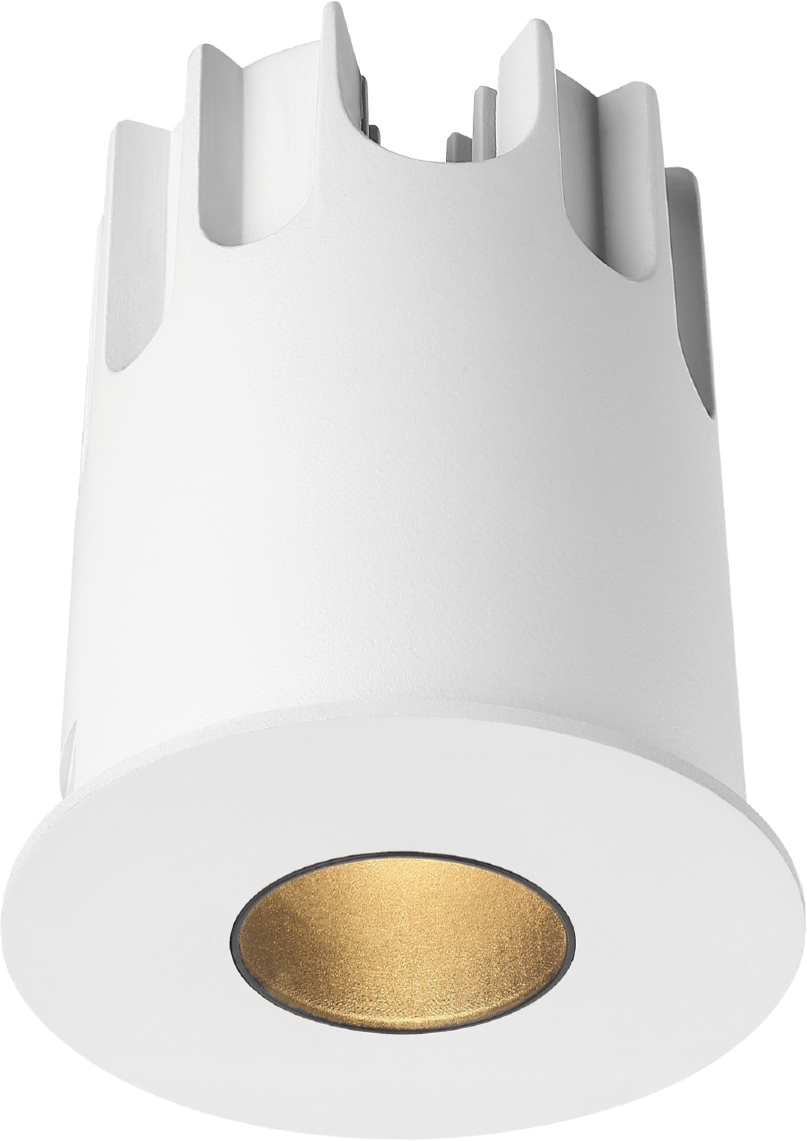

Fixed Downlight - Trim & Round
These fixed downlights have an employing die-casting technology and a very firm structure. The surface is treated by varnishing, with a very durable color. By using the newest generation of high performance CITIZEN COB LED chips, they have a low heat resistance and high lighting efficiency. The products in the family employ highly accurate optics to achieve high efficiency and superior lighting spot effect, with anti-glare technology (UGR<19). The installation is quick and convenient thanks to the additional components of the downlights: stainless-steel clips, folded brackets, or both.

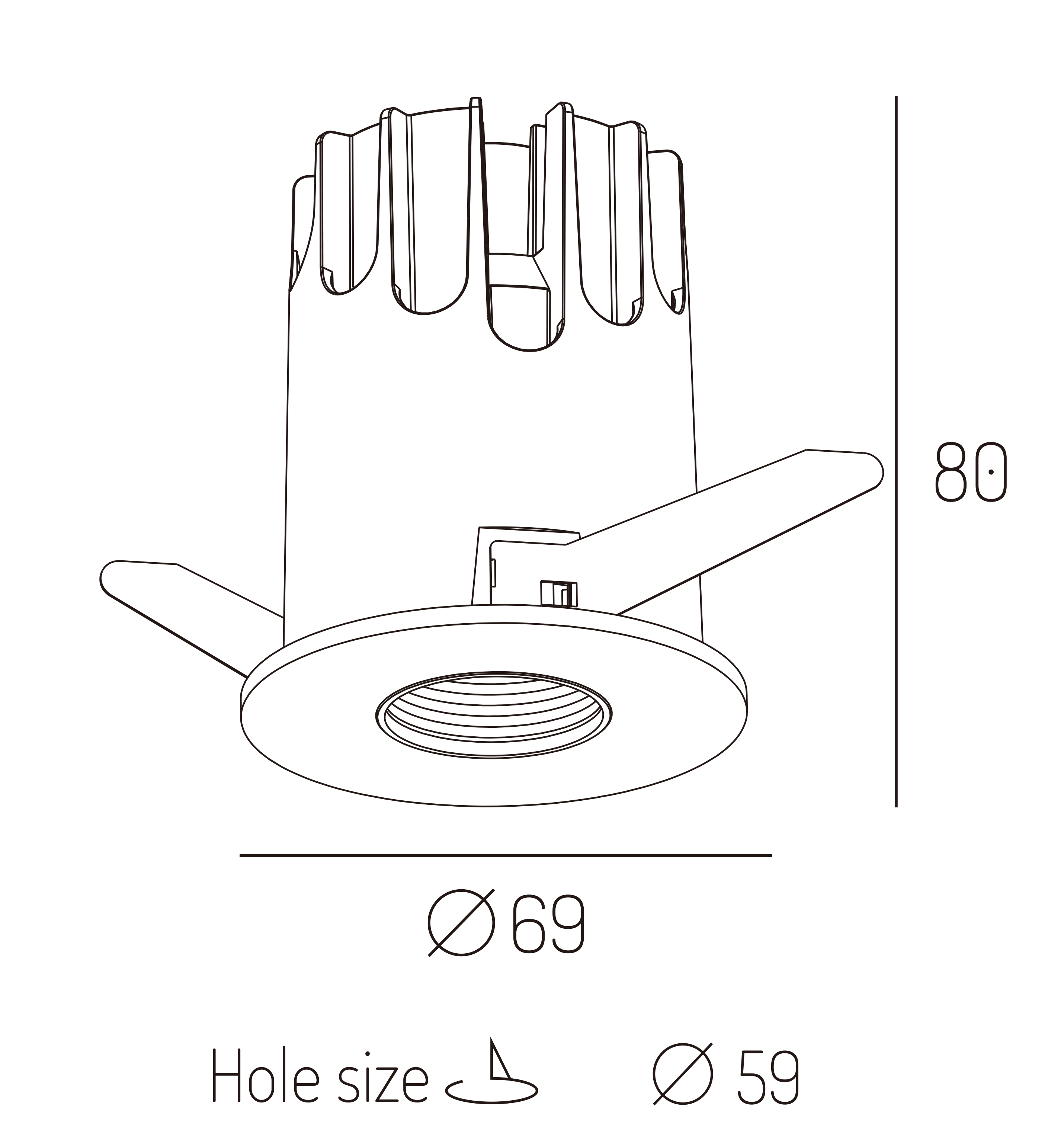

Technical Drawing
product data
  • Fixture Power
    7W/10W
  • Driving Current
    200mA/250mA
  • Lumen Output
    318lm/426lm
  • Fixture Efficiency
    45.4lm/w
    42.6lm/w
  • CRI
    90
  • Color Temperature
    2700K/3000K/4000K

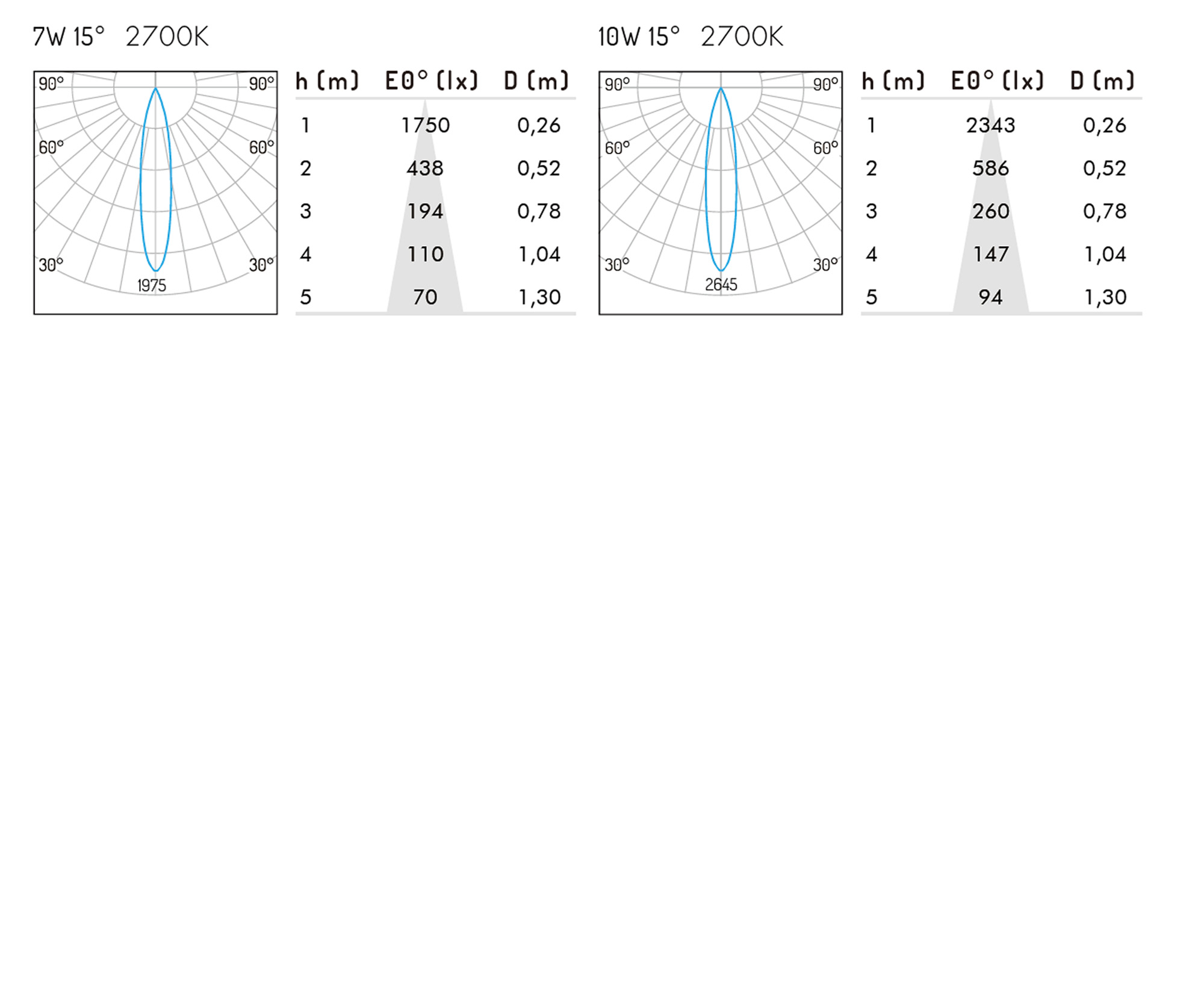

LIGHT DISTRIBUTION
  • Beam Angle
    15°
  • Source Type:
    Citizen COB LED
  • Control Method:
    Not Dimmable
    Phase-cut Dimming
    0-10V Dimming
    DALI Dimming
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    Ø69*H80mm
  • Hole Size
    Ø59mm
  • Weight
    0.39kg
  • IP Rating
    IP20
  • Housing Material
    Die-cast Aluminium
  • Housing Color
    RAL9006
    White Aluminium
    RAL9016
    Traffic White
    RAL9005
    Jet Black
Filter codes by
No.
All No.
Power
All Power
10W
7W
Current
All Current
200mA
250mA
CCT
All CCT
2700K
3000K
4000K
Flux
All Flux
318lm
426lm
Beam
All Beam
15°
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
7W
200mA
2700K
318lm
15°
7W
200mA
3000K
318lm
15°
7W
200mA
4000K
318lm
15°
10W
250mA
2700K
426lm
15°
10W
250mA
3000K
426lm
15°
10W
250mA
4000K
426lm
15°

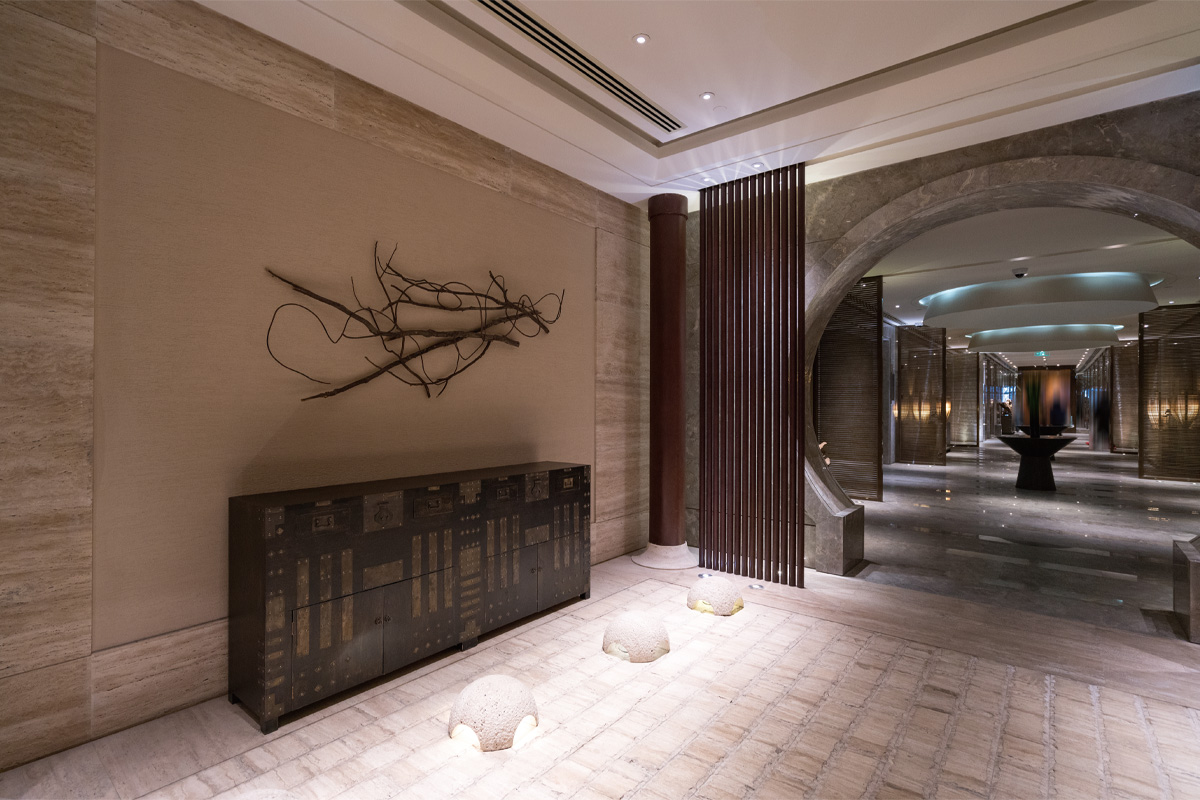

Inspiration
