LERES
73.0303

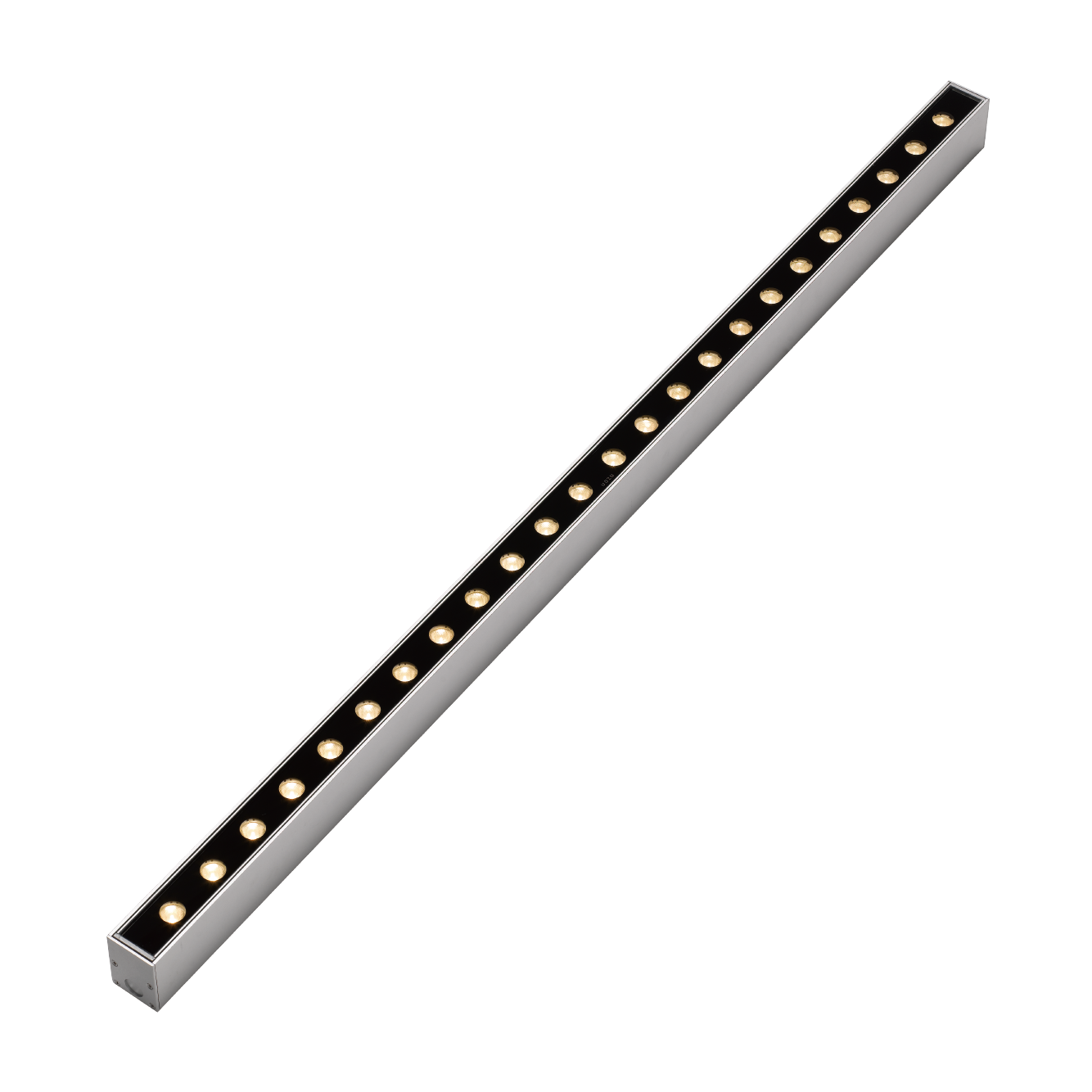

LERES 32

This family includes three products of inground lighting for outdoor spaces. They have a body and bracket in die-cast aluminum with powder-coating and a pre-treatment for outdoor use, clear glass, and a silicon rubber gasket. They have an lP67 rating and employ the newest generation of light sources, thus achieving a low heat resistance and high lighting efficiency.

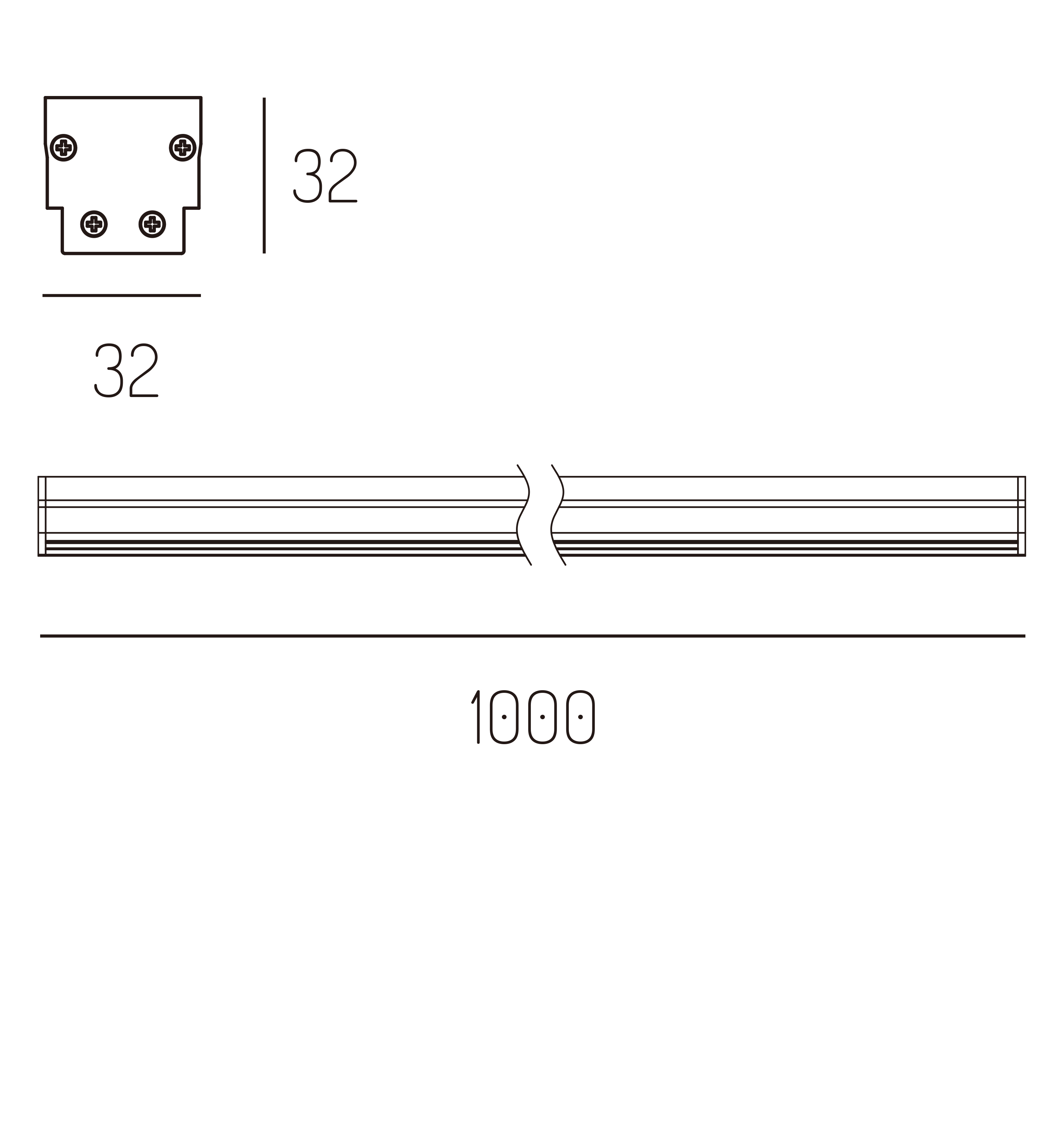

Technical Drawing
product data
  • Fixture Power
    36W
  • Driving Current
    1000mA
  • Lumen Output
    2095lm
  • Fixture Efficiency
    58.2lm/w
  • CRI
    90
  • Color Temperature
    2700K/3000K/4000K

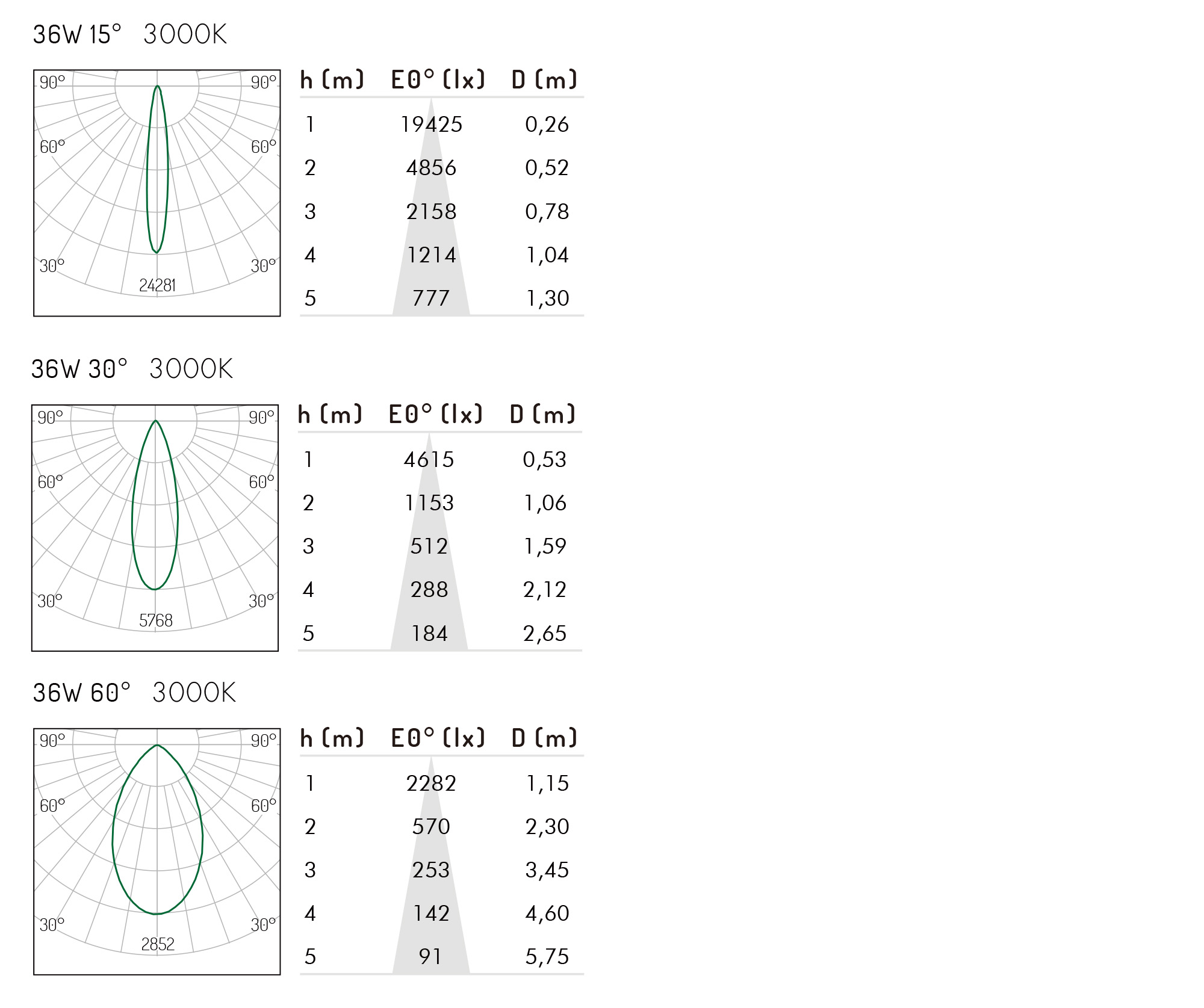

LIGHT DISTRIBUTION
  • Beam Angle
    15°/30°/60°
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
    DMX512
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    L1000*W32mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP67
  • Housing Material
    Extruded Aluminium
  • Housing Color
    RAL9005
    Jet Black
    Stainless Steel Cover
Filter codes by
No.
All No.
Power
All Power
36W
Current
All Current
CCT
All CCT
2700K
3000K
4000K
Flux
All Flux
2095lm
Beam
All Beam
15°
30°
60°
Length
All Length
1000lm
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
36W
2700K
2095lm
15°
1000lm
Specifications Installation instructions IES
36W
3000K
2095lm
15°
1000lm
Specifications Installation instructions IES
36W
4000K
2095lm
15°
1000lm
Specifications Installation instructions IES
36W
2700K
2095lm
30°
1000lm
Specifications Installation instructions IES
36W
3000K
2095lm
30°
1000lm
Specifications Installation instructions IES
36W
4000K
2095lm
30°
1000lm
Specifications Installation instructions IES
36W
2700K
2095lm
60°
1000lm
Specifications Installation instructions IES
36W
3000K
2095lm
60°
1000lm
Specifications Installation instructions IES
36W
4000K
2095lm
60°
1000lm
Specifications Installation instructions IES
Reset all filters

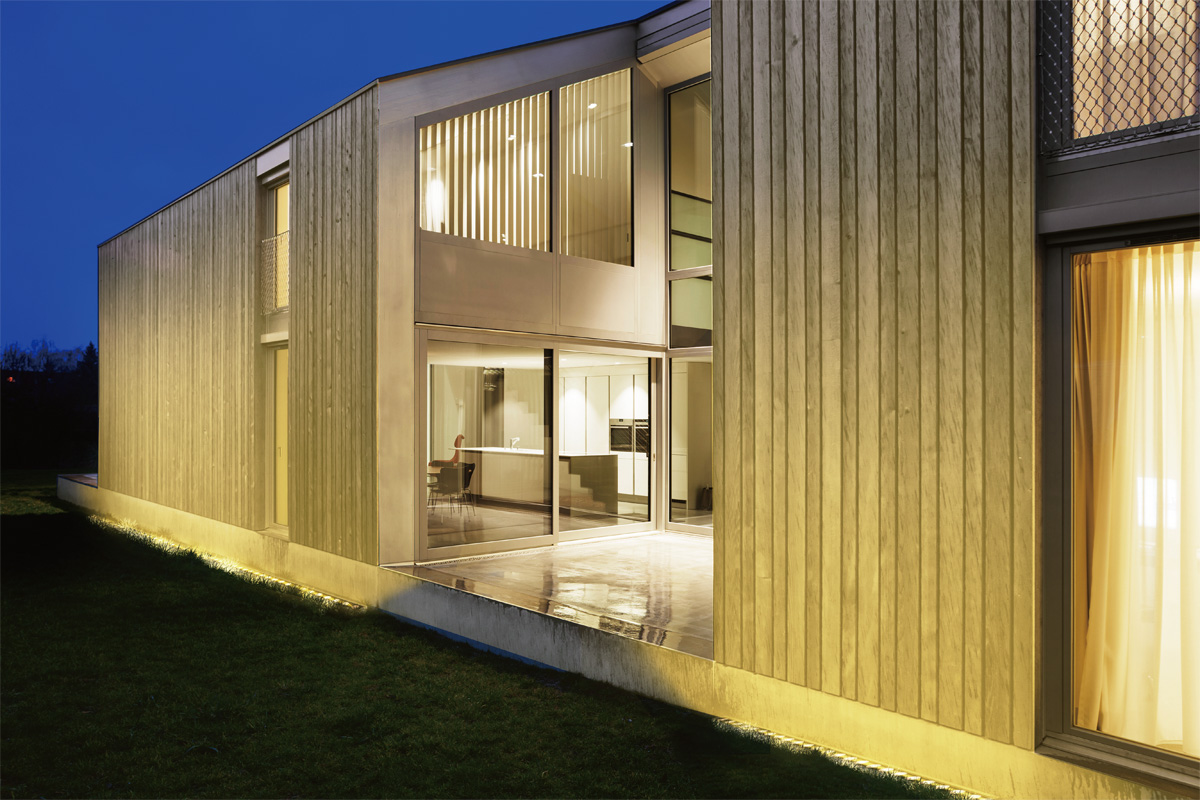

Inspiration
