NEVE
73.0105

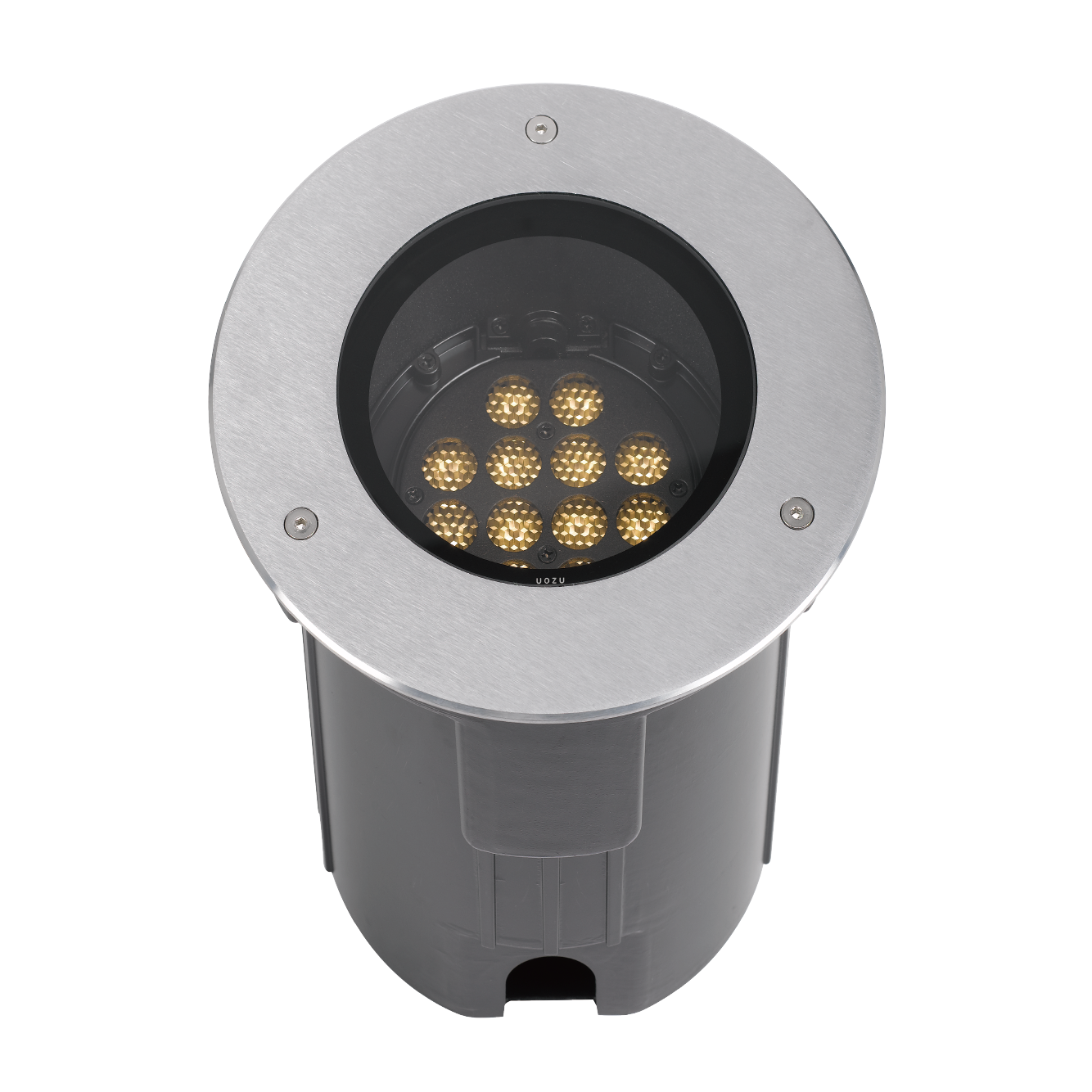

NEVE Adjustable 210

This family includes six products of inground lighting for outdoor spaces. They have a body and bracket in die-cast aluminum with powder-coating and a pre-treatment for outdoor use, clear glass, and a silicon rubber gasket. They have an lP67 rating and employ the newest generation of light sources, thus achieving a low heat resistance and high lighting efficiency.

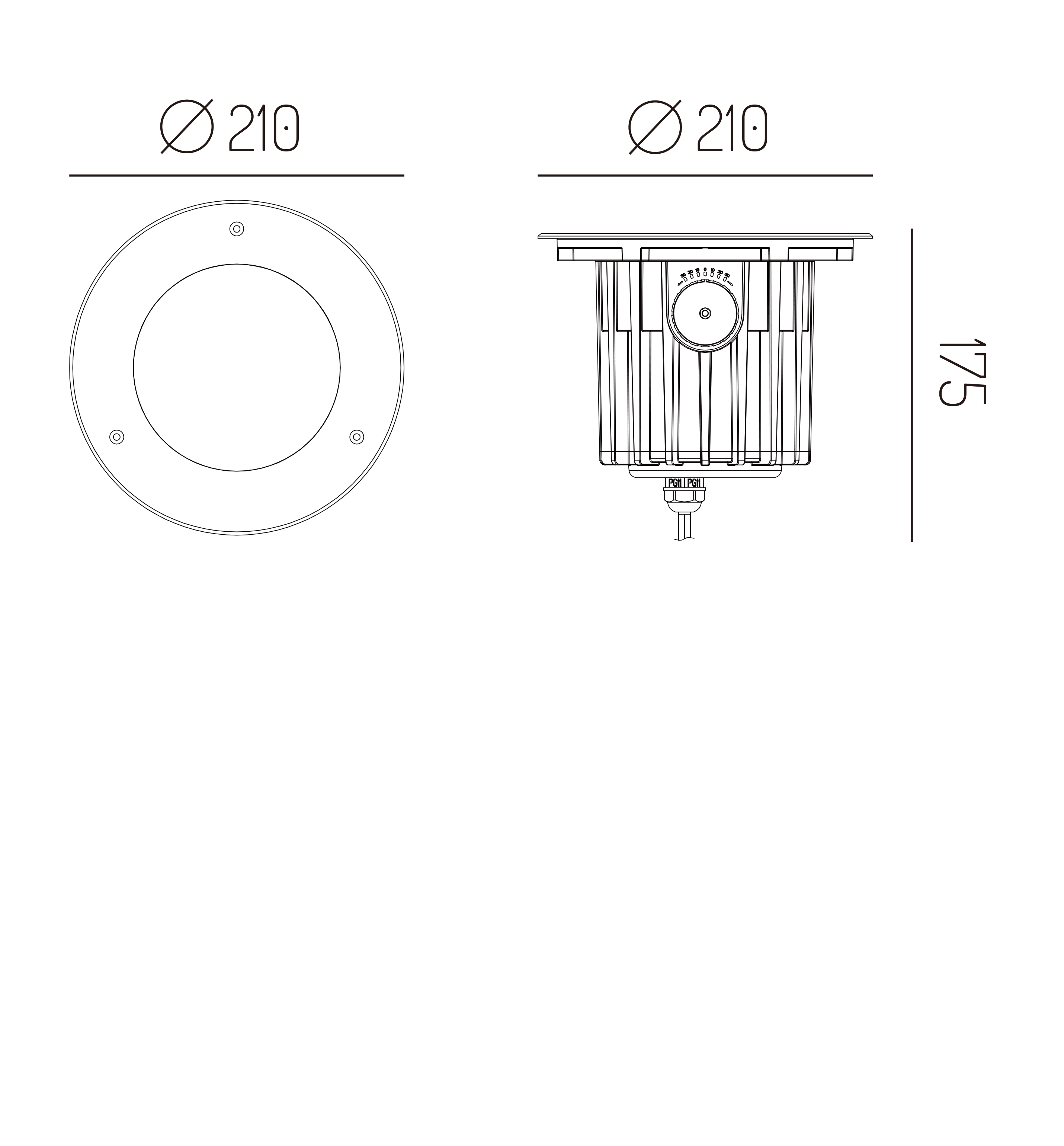

Technical Drawing
product data
  • Fixture Power
    24W
  • Driving Current
    1200mA
  • Lumen Output
    1350lm
  • Fixture Efficiency
    56.2lm/w
  • CRI
    90
  • Color Temperature
    2700K/3000K/4000K

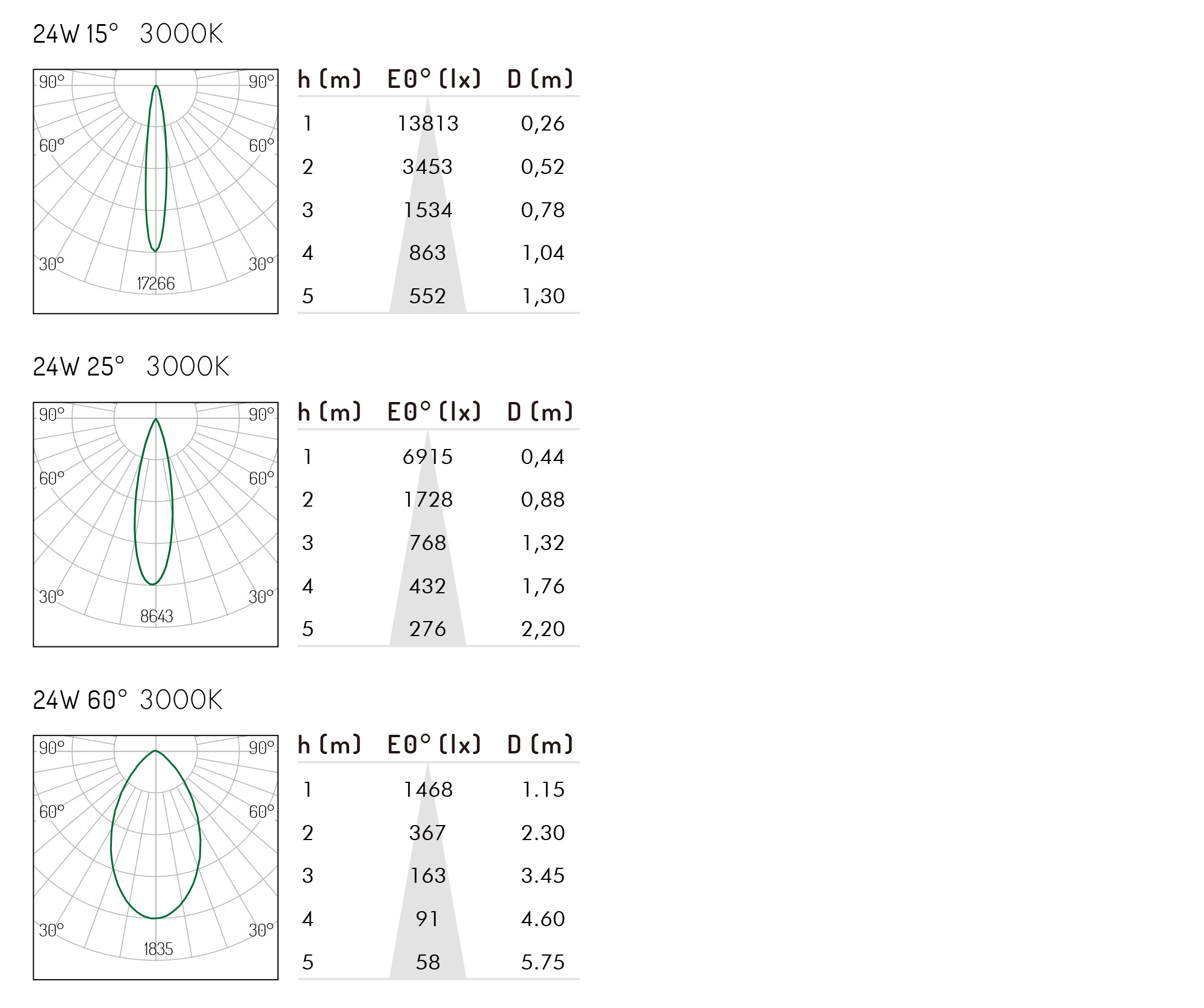

LIGHT DISTRIBUTION
  • Beam Angle
    15°/25°/60°
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
    DMX512
    DALI Dimming
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    D210*H175mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP67
  • IK Rating
    IK10
  • Housing Material
    Die-cast Aluminium
  • Housing Color
    RAL9005
    Jet Black
    Stainless Steel Cover
Filter codes by
No.
All No.
Power
All Power
24W
Current
All Current
CCT
All CCT
2700K
3000K
4000K
Flux
All Flux
1350lm
Beam
All Beam
15°
25°
60°
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
Type
All Type
Voltage
All Voltage
220V
24V
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
24W
2700K
1350lm
15°
24V
Specifications Installation instructions IES
24W
3000K
1350lm
15°
24V
Specifications Installation instructions IES
24W
4000K
1350lm
15°
24V
Specifications Installation instructions IES
24W
2700K
1350lm
25°
24V
Specifications Installation instructions IES
24W
3000K
1350lm
25°
24V
Specifications Installation instructions IES
24W
4000K
1350lm
25°
24V
Specifications Installation instructions IES
24W
2700K
1350lm
60°
24V
Specifications Installation instructions IES
24W
3000K
1350lm
60°
24V
Specifications Installation instructions IES
24W
4000K
1350lm
60°
24V
Specifications Installation instructions IES
24W
2700K
1350lm
15°
220V
Specifications Installation instructions IES
24W
3000K
1350lm
15°
220V
Specifications Installation instructions IES
24W
4000K
1350lm
15°
220V
Specifications Installation instructions IES
24W
2700K
1350lm
25°
220V
Specifications Installation instructions IES
24W
3000K
1350lm
25°
220V
Specifications Installation instructions IES
24W
4000K
1350lm
25°
220V
Specifications Installation instructions IES
24W
2700K
1350lm
60°
220V
Specifications Installation instructions IES
24W
3000K
1350lm
60°
220V
Specifications Installation instructions IES
24W
4000K
1350lm
60°
220V
Specifications Installation instructions IES
Reset all filters

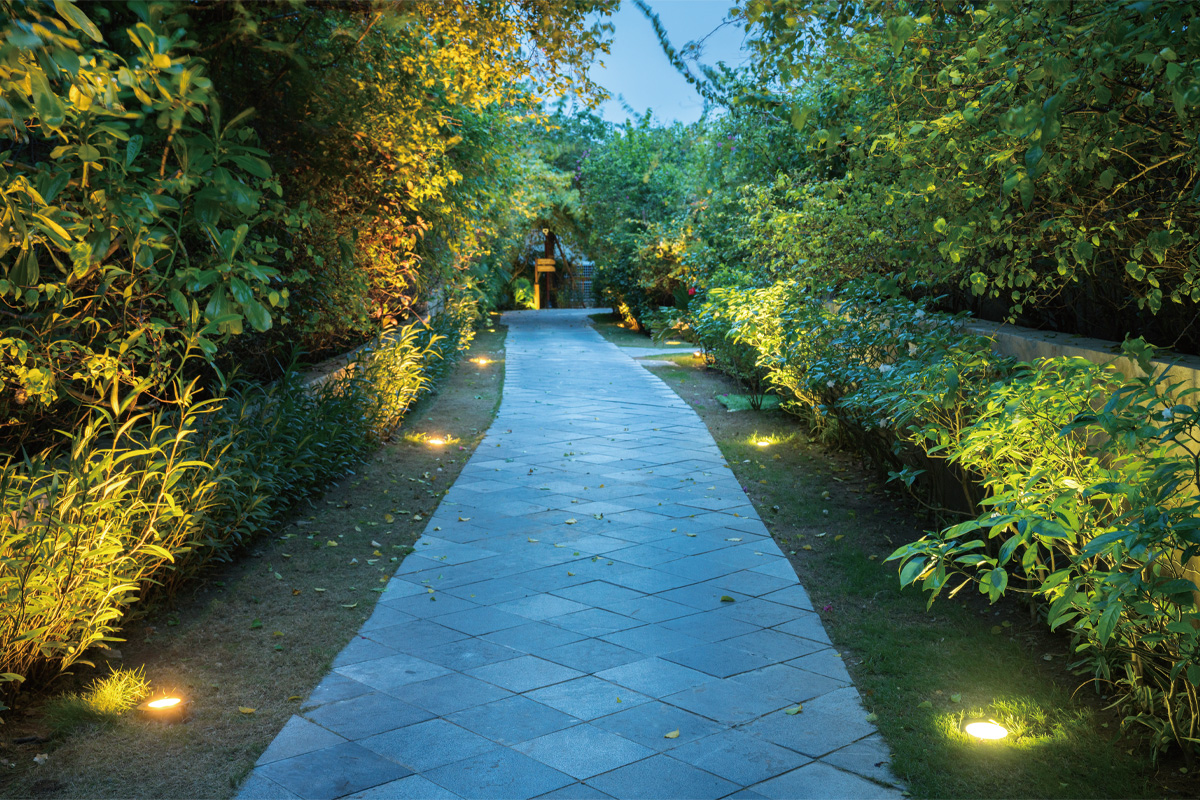

Inspiration
