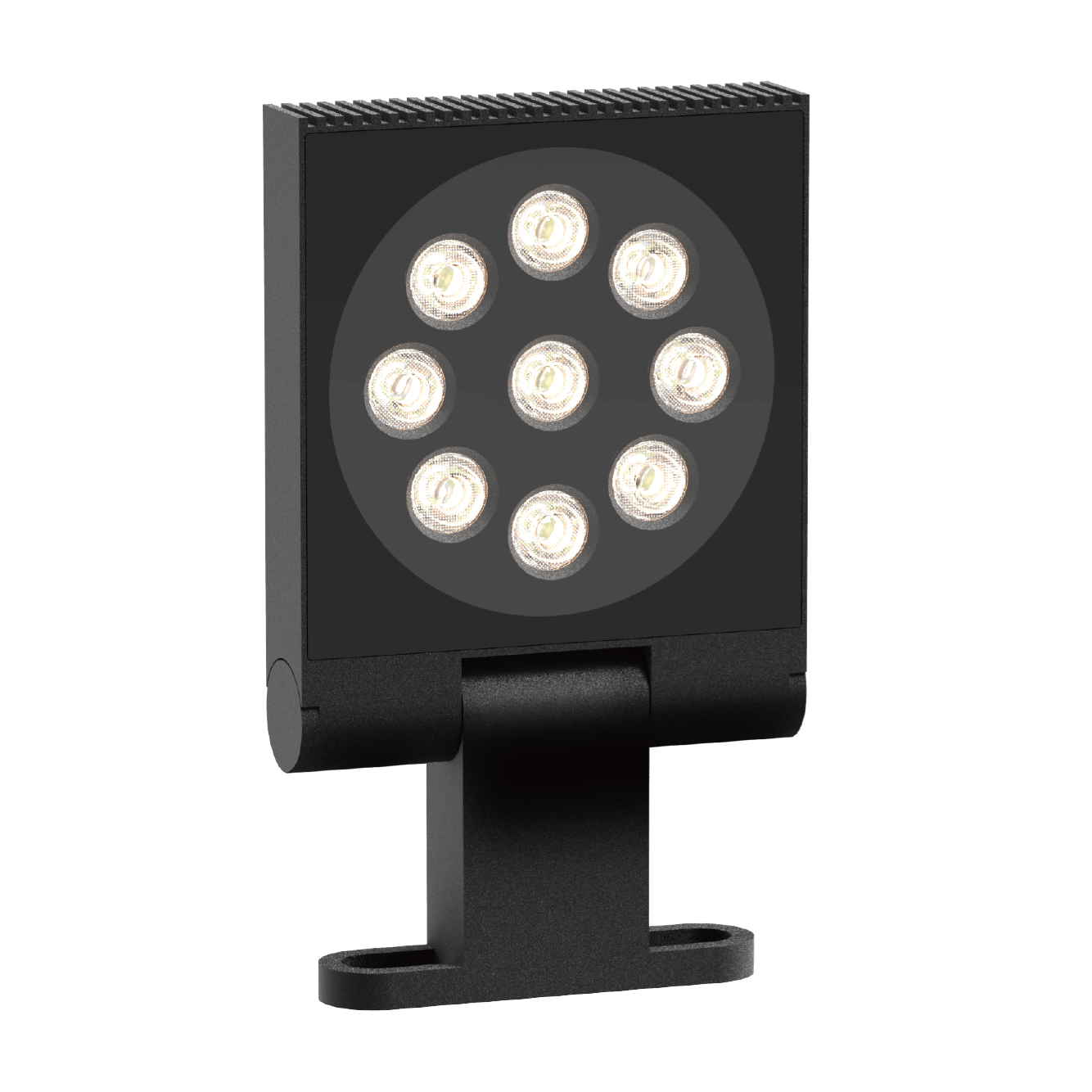

ARIETE
72.0303

ARIETE 285

ARIETE is the powerhouse that give life the architecture. It is the matter of sufficient light and different light appearances. The super spot optics system direct almost all the light that comes out from the LED to the surface hundreds miles away, and it is still has a illuminance above 50lx. Other beams including asymmetric distributions can also be achieved just using our refraction optics with easy assembly or replacement. Behind the optics system, LED chips in full range of specification includes white light, tunable white, RGB, RGBW and single color. To protect this powerful system, we design a super flat silhouette for ARIETE to make sure a IP66 waterproof and corrosion-resistant structure to accommodates the hardware that serve a very long time.

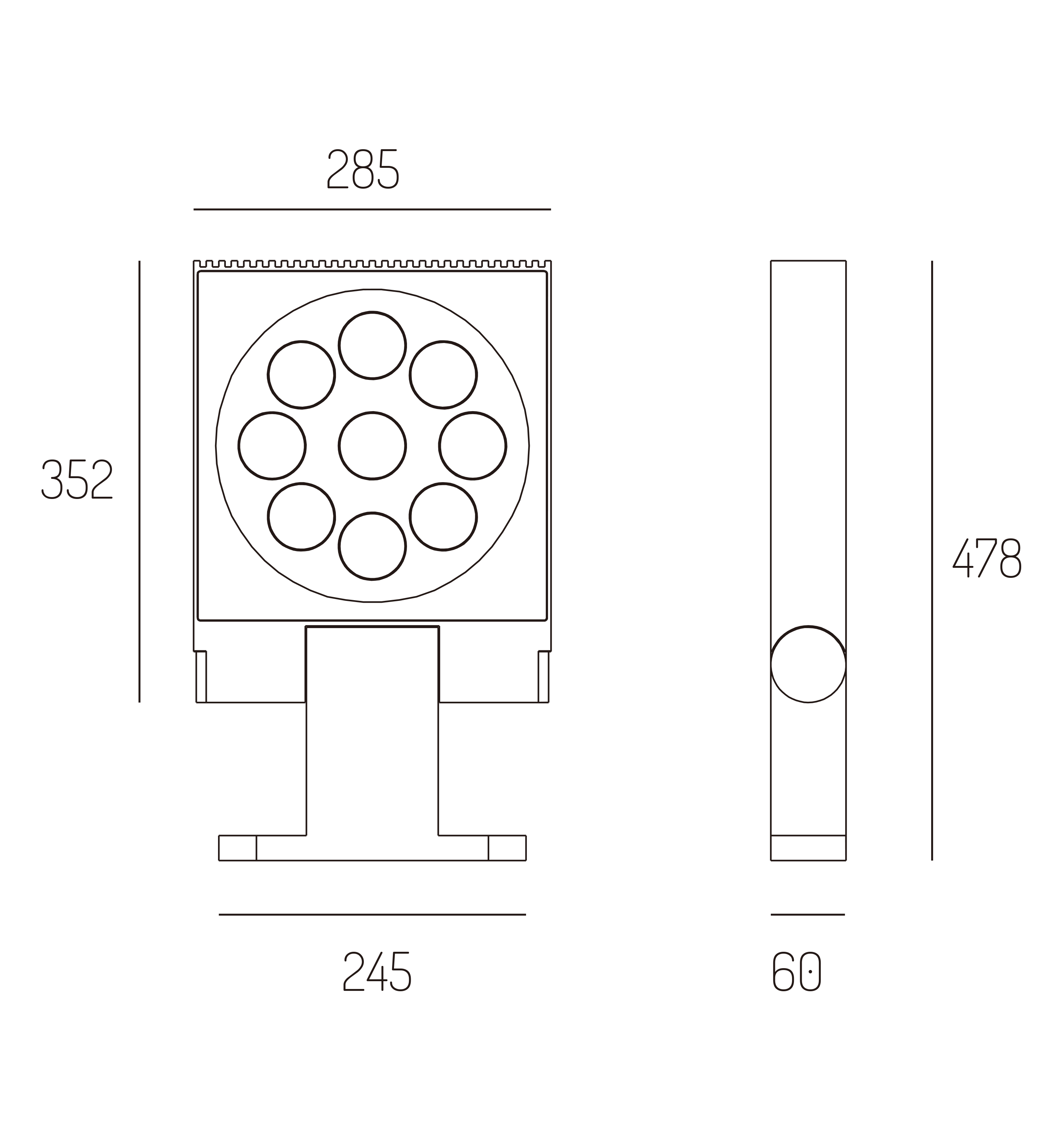

Technical Drawing
product data
  • Fixture Power
    100W/150W
  • Driving Current
    2500mA/3750mA
  • Lumen Output
    6000lm/9000lm
  • Fixture Efficiency
    60.0lm/w
    60.0lm/w
  • CRI
    90
  • Color Temperature
    3000K/4000K/RGBW

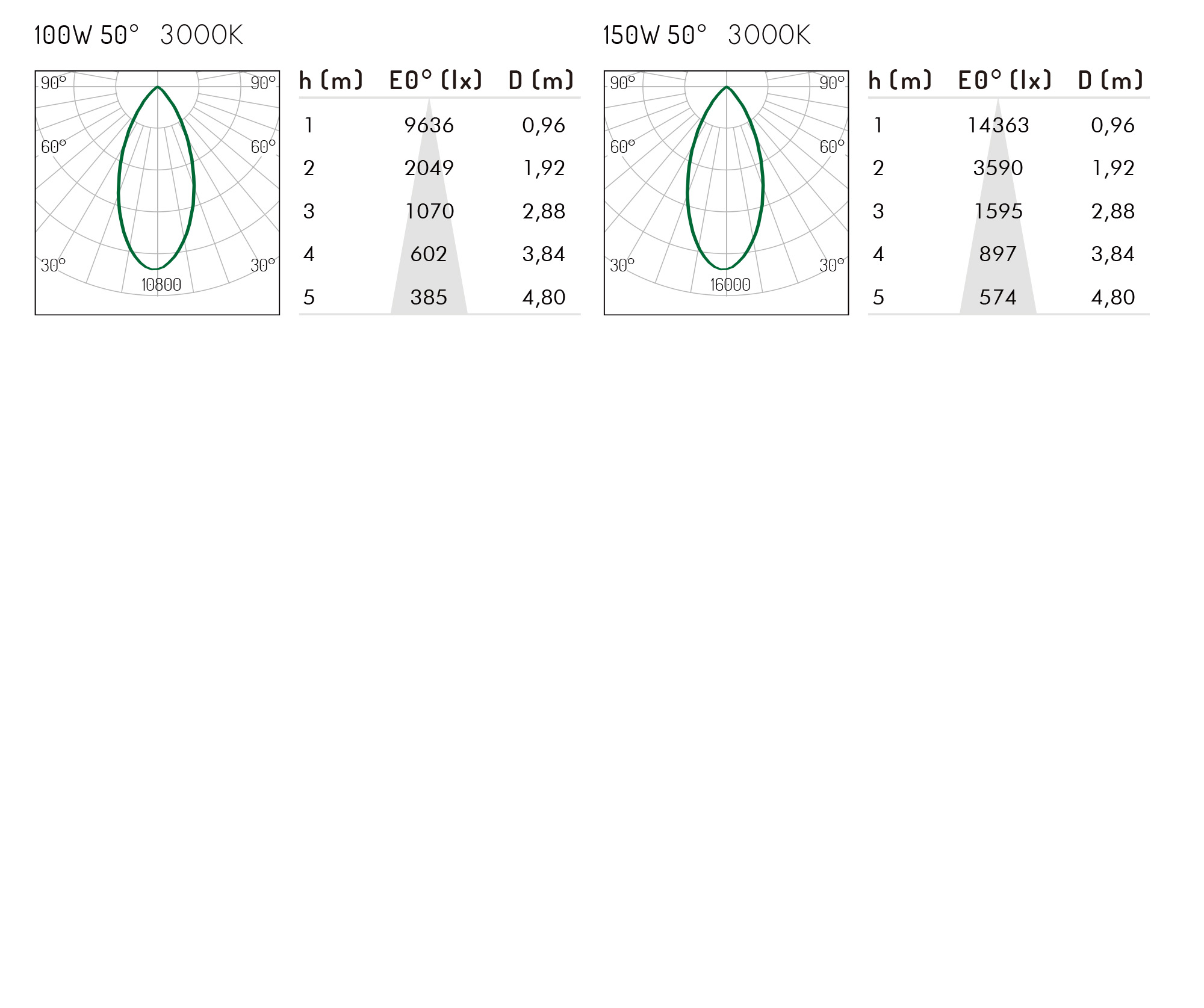

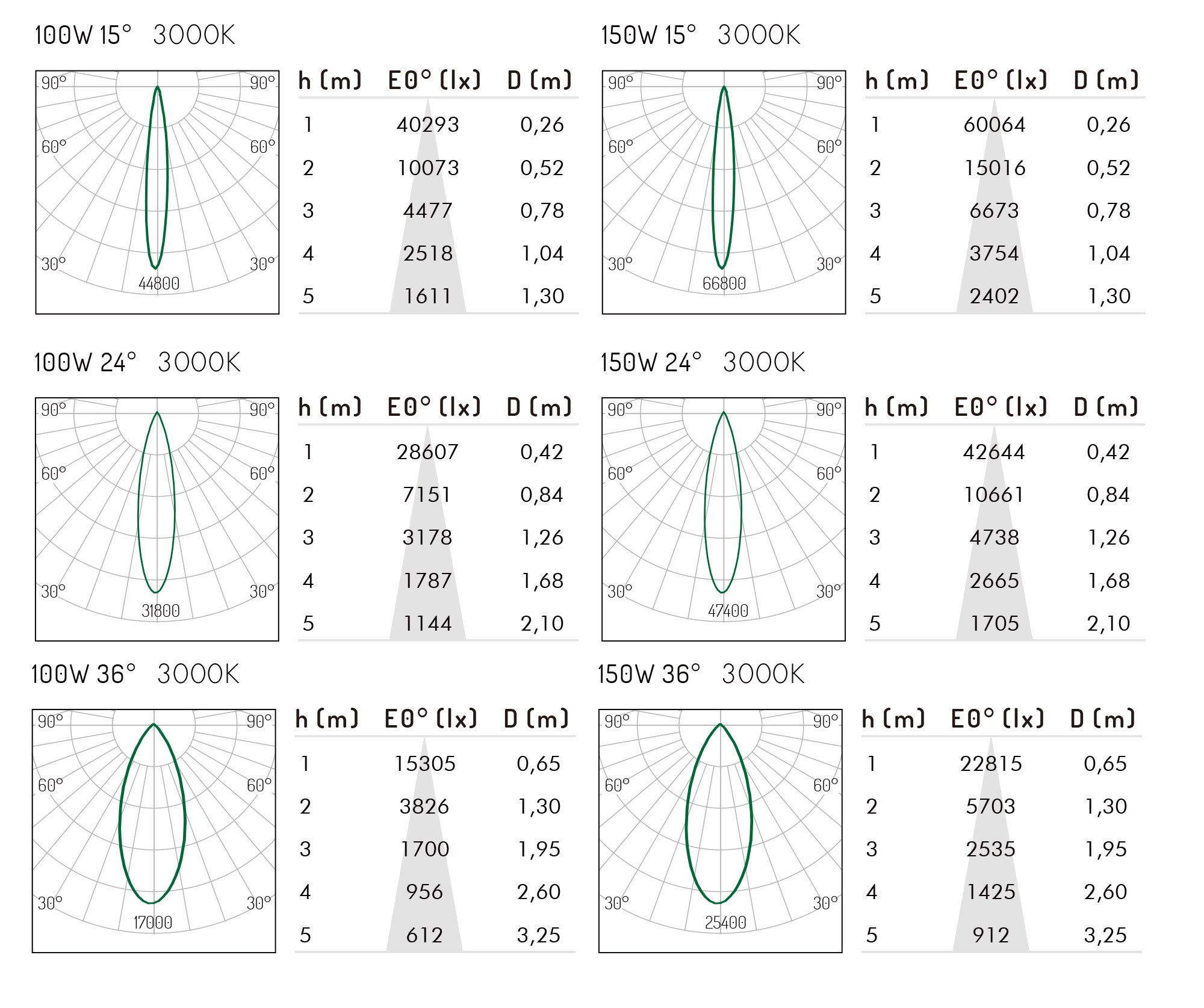

LIGHT DISTRIBUTION
  • Beam Angle
    15°/24°/36°/50°
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
    DMX512
    DALI Dimming
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    W285*H478mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP66
  • Housing Material
    Machined Aluminium
  • Housing Color
    RAL9006
    White Aluminium
    RAL9016
    Traffic White
    RAL9005
    Jet Black
Mounting Accessories
Filter codes by
No.
All No.
Power
All Power
100W
150W
Current
All Current
2500mA
3750mA
CCT
All CCT
3000K
4000K
RGBW
Flux
All Flux
6000lm
9000lm
Beam
All Beam
15°
24°
36°
50°
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
100W
2500mA
3000K
6000lm
15°
100W
2500mA
4000K
6000lm
15°
100W
2500mA
RGBW
6000lm
15°
100W
2500mA
3000K
6000lm
24°
100W
2500mA
4000K
6000lm
24°
100W
2500mA
RGBW
6000lm
24°
100W
2500mA
3000K
6000lm
36°
100W
2500mA
4000K
6000lm
36°
100W
2500mA
RGBW
6000lm
36°
100W
2500mA
3000K
6000lm
50°
100W
2500mA
4000K
6000lm
50°
100W
2500mA
RGBW
6000lm
50°
150W
3750mA
3000K
9000lm
15°
150W
3750mA
4000K
9000lm
15°
150W
3750mA
RGBW
9000lm
15°
150W
3750mA
3000K
9000lm
24°
150W
3750mA
4000K
9000lm
24°
150W
3750mA
RGBW
9000lm
24°
150W
3750mA
3000K
9000lm
36°
150W
3750mA
4000K
9000lm
36°
150W
3750mA
RGBW
9000lm
36°
150W
3750mA
3000K
9000lm
50°
150W
3750mA
4000K
9000lm
50°
150W
3750mA
RGBW
9000lm
50°

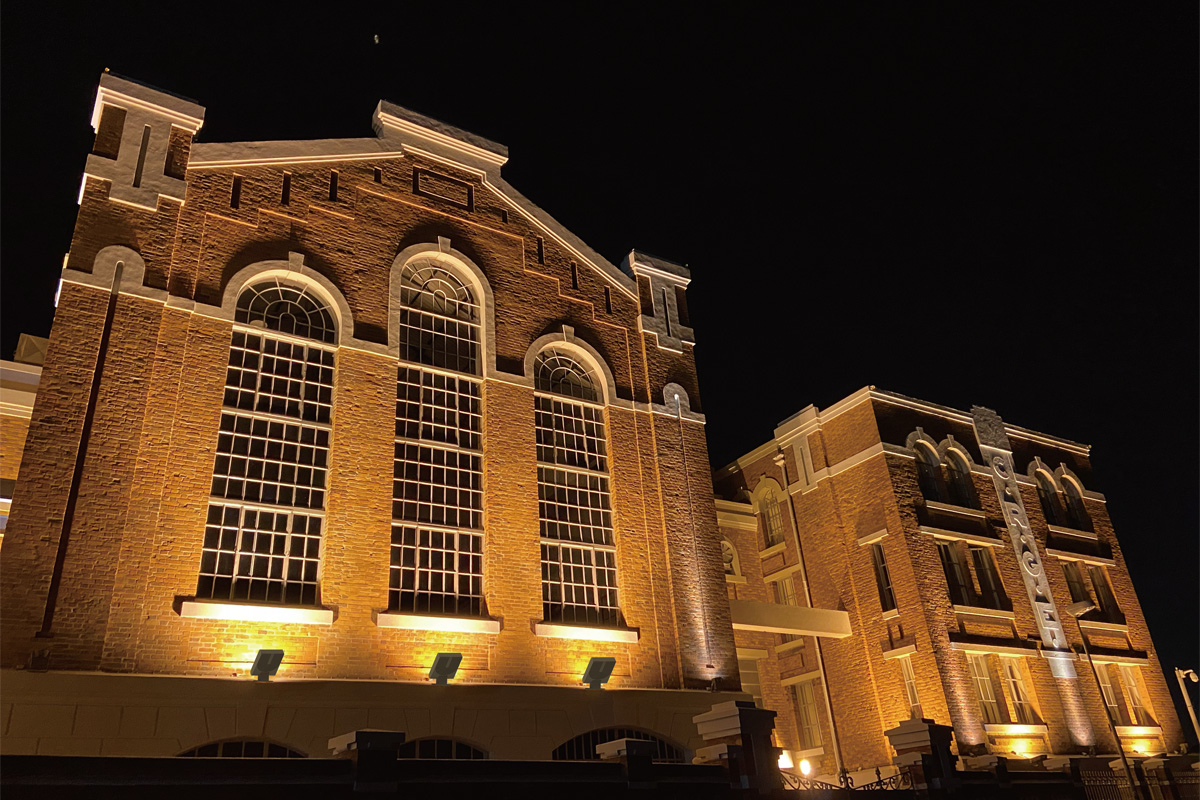

Inspiration
