SAGITTARIO
72.0104

SAGITTARIO 120

While outdoor area sets no limit in the context of space, the lighting equipment are generally powerful but bulky. But we know it is not 100% true. There are plenty of private residences, parks or public spaces in populated areas don’t need that much of luminous flux but more attentions are constantly paid to create contrast and sufficient light on the objects. SAGITTARIO is a family that features the most compact silhouette, superb lighting quality and versatile interchangeable accessories in our line-up of floodlights to satisfy this demand. Our clients enjoy the moments that works with SAGITTARIO when playing the drama between light and shadow on site where they get to know the lighting precision that comes from SAGITTARIO. Performance and functionality all come down to the hardware and expertise that UOZU offer.

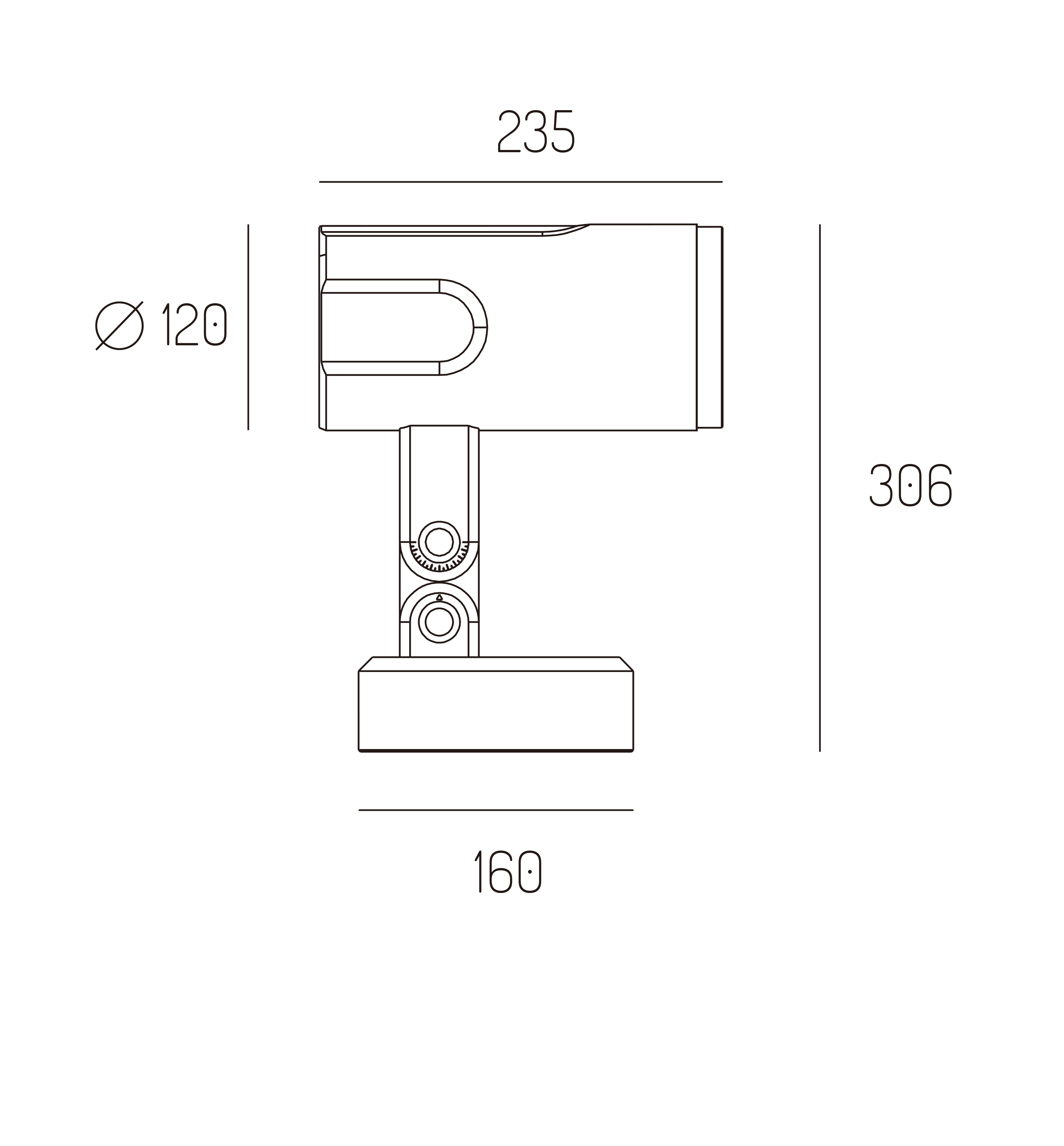

Technical Drawing
product data
  • Fixture Power
    45W
  • Driving Current
    1200mA
  • Lumen Output
    2850lm
  • Fixture Efficiency
    63.3lm/w
  • CRI
    90
  • Color Temperature
    3000K/4000K/6000K

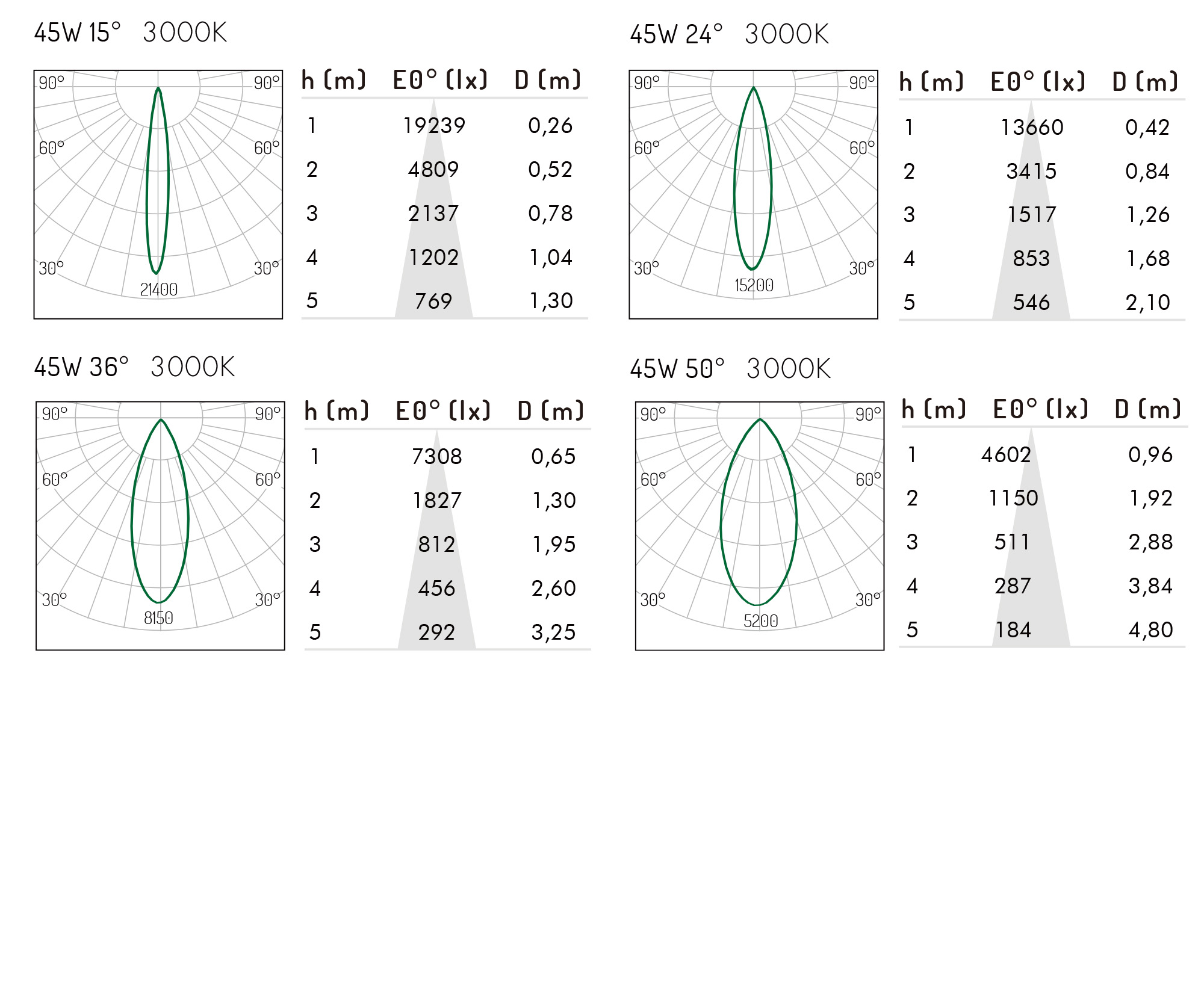

LIGHT DISTRIBUTION
  • Beam Angle
    15°/24°/36°/50°
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
    Phase-cut Dimming
    0-10V Dimming
    DALI Dimming
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    D120*H306mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP66
  • Housing Material
    Machined Aluminium
  • Housing Color
    RAL9006
    White Aluminium
    RAL9016
    Traffic White
    RAL9005
    Jet Black
Mounting Accessories
Filter codes by
No.
All No.
Power
All Power
45W
Current
All Current
1200mA
CCT
All CCT
3000K
4000K
6000K
Flux
All Flux
2850lm
Beam
All Beam
15°
24°
36°
50°
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
45W
1200mA
3000K
2850lm
15°
45W
1200mA
4000K
2850lm
15°
45W
1200mA
6000K
2850lm
15°
45W
1200mA
3000K
2850lm
24°
45W
1200mA
4000K
2850lm
24°
45W
1200mA
6000K
2850lm
24°
45W
1200mA
3000K
2850lm
36°
45W
1200mA
4000K
2850lm
36°
45W
1200mA
6000K
2850lm
36°
45W
1200mA
3000K
2850lm
50°
45W
1200mA
4000K
2850lm
50°
45W
1200mA
6000K
2850lm
50°
