ARTEMIS
71.0201

ARTEMIS Out

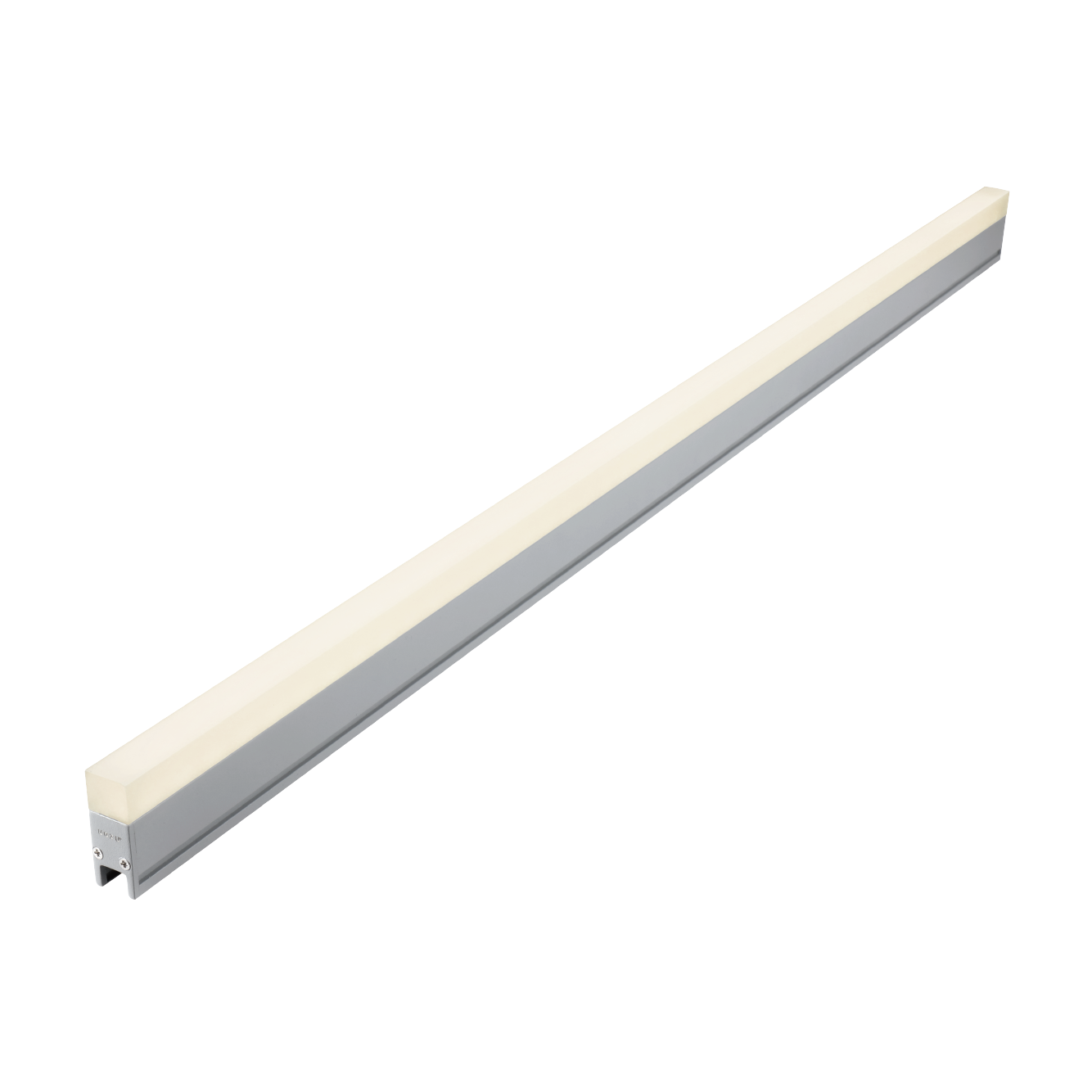

The Artemis family is a composition of lamps formed by recessed, suspended or surface-mounted luminaries. The main materials are extruded aluminum lamp body, stamped aluminum alloy end cover. The light effect is soft and uniform, and the Angle of view is 180°without blind Angle. The standard wiring mode of the product is IP65 waterproof connector and the wire is outdoor grade RVV and VDE waterproof and high temperature resistant rubber wire. Products can be made of monochrome, RGB multi-color control and single-tone control, control system SDI or DMX are selectable.

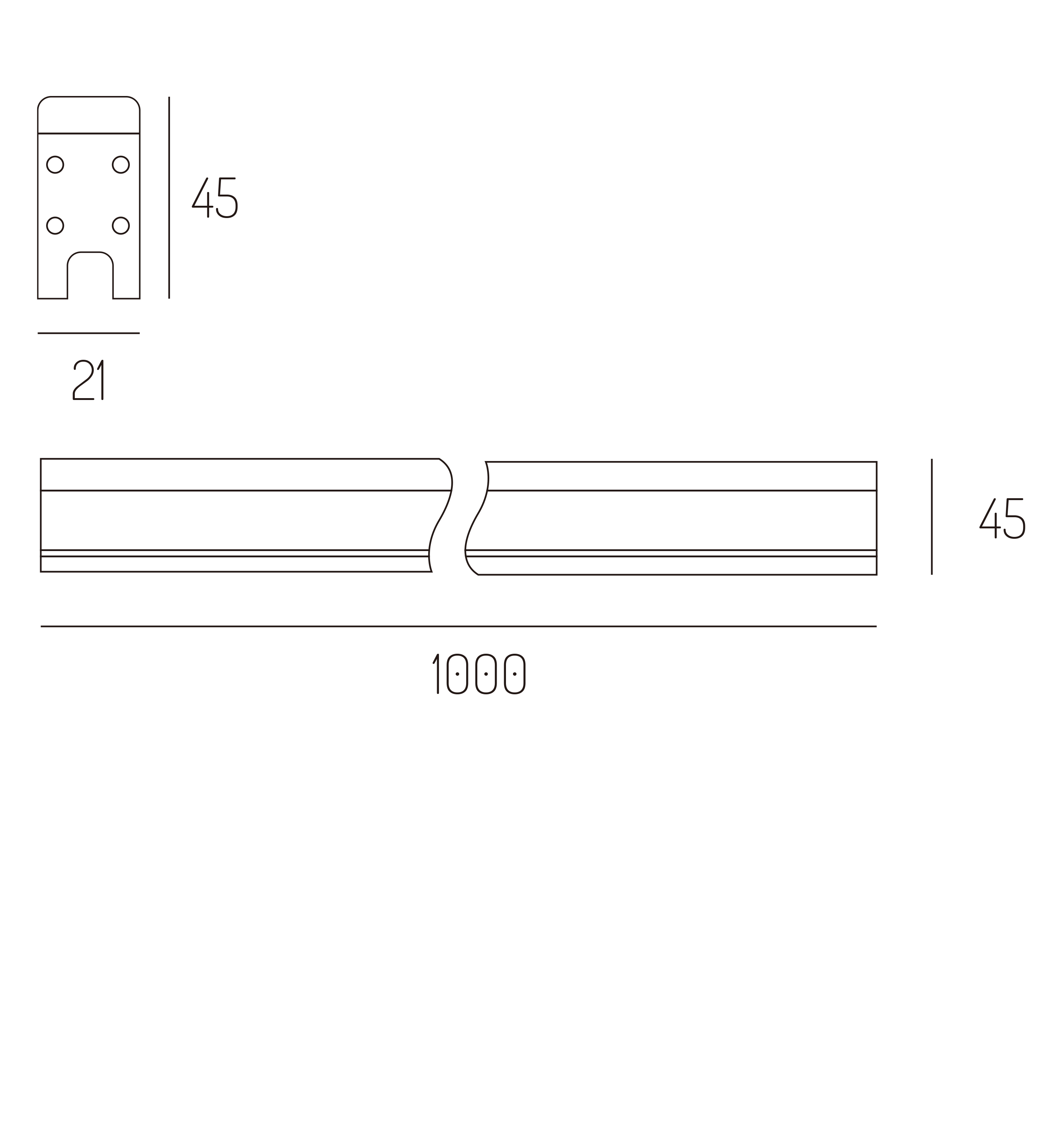

Technical Drawing
product data
  • Fixture Power
    12W
  • Driving Current
    /
  • Lumen Output
    380lm
  • Fixture Efficiency
    31.6lm/w
  • CRI
    90
  • Color Temperature
    3000K/4000K
    Tunable White
    (2700-6500K)
    RGB 12bit

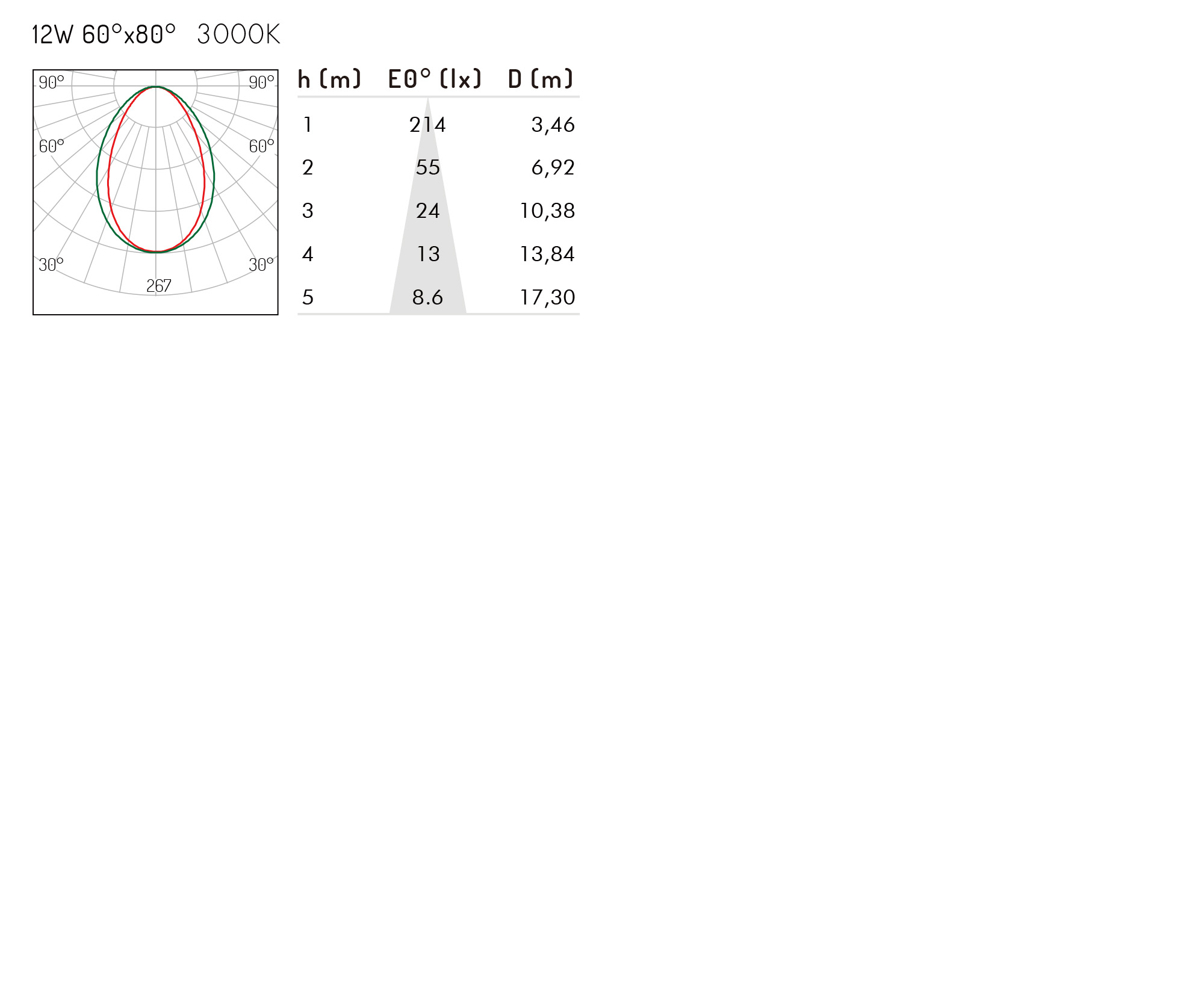

LIGHT DISTRIBUTION
  • Beam Angle
    60°*80°
  • Source Type
    Citizen COB LED
  • Control Method
    DMX512
    Not Dimmable
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    L1000*W21*H45mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP65
  • Housing Material
    Anodised Extruded Aluminium+
    PMMA Linear Optics
  • Housing Color
    /
Filter codes by
No.
All No.
Power
All Power
12W
Current
All Current
CCT
All CCT
3000K
4000K
RGB 12bit
Tunable White (2700-6500K)
Flux
All Flux
380lm
Beam
All Beam
60°*80°
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
L1000*W21*H45mm
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
12W
3000K
380lm
60°*80°
L1000*W21*H45mm
Specifications Installation instructions IES
12W
4000K
380lm
60°*80°
L1000*W21*H45mm
Specifications Installation instructions IES
12W
Tunable White (2700-6500K)
380lm
60°*80°
L1000*W21*H45mm
Specifications Installation instructions IES
12W
RGB 12bit
380lm
60°*80°
L1000*W21*H45mm
Specifications Installation instructions IES
Reset all filters

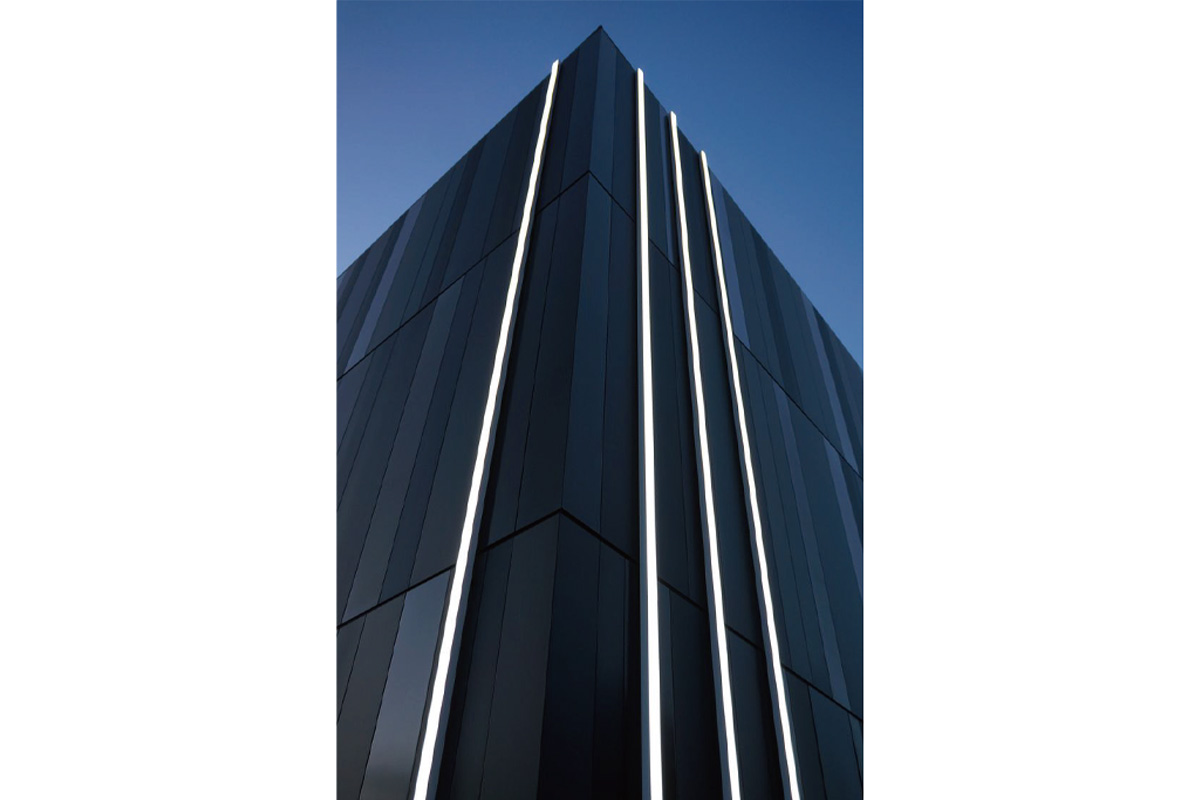

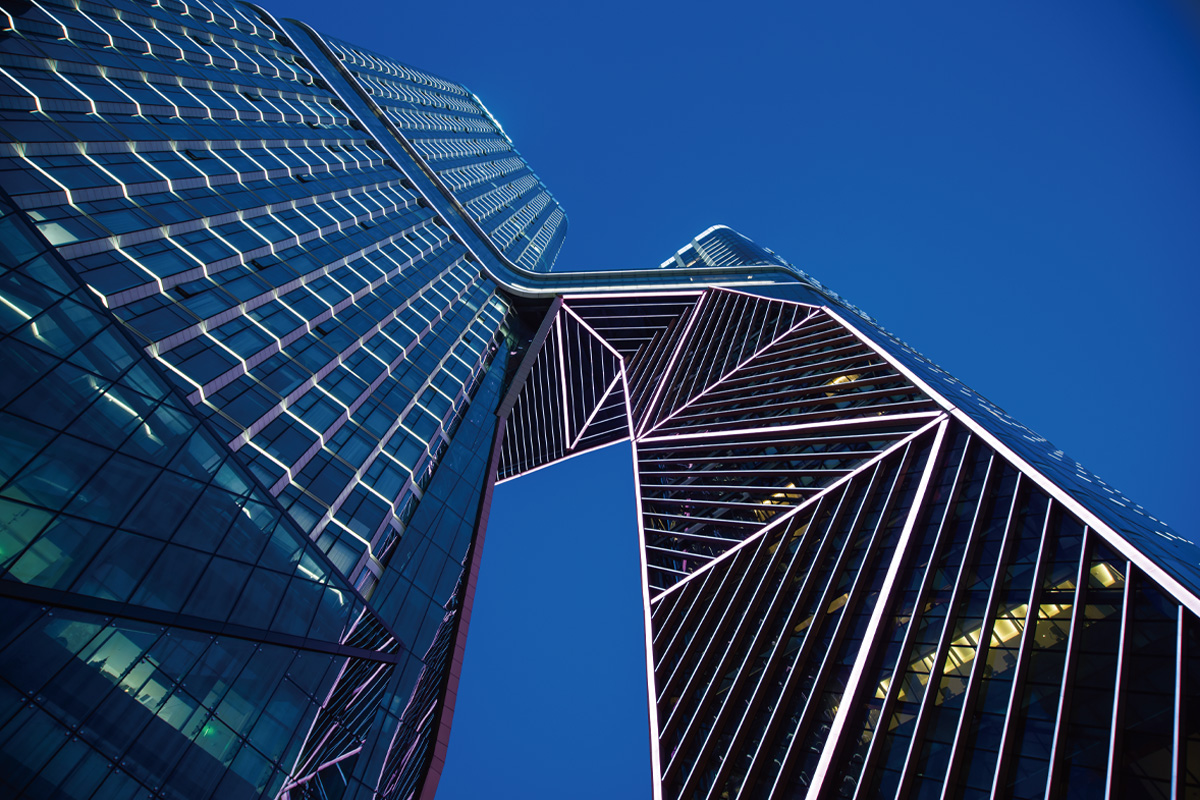

Inspiration
