PERLA
07.0405

Linear Flexible Lights

This is Linear Flexible Light made of Extruded white silicone with Dual-bend performance to fix many planes, curved and complex irregular structures at will. Ultra long run with homogeneous lighting effect up to 10M, length in 24VDC input. On-site free-cutting and assembly for fast and flexible customization operation, with end caps sealed by the gluing process. Customized length with the overall appearance in the same size by the die-casting process. They provide uniform and high-quality illumination with anti-glare technology and have a user-friendly design concept. The products’ structure and characteristics allow an easy installation and remarkable stability of the products. The design is willingly minimalistic and elegant, in order to adapt to various types of environments.

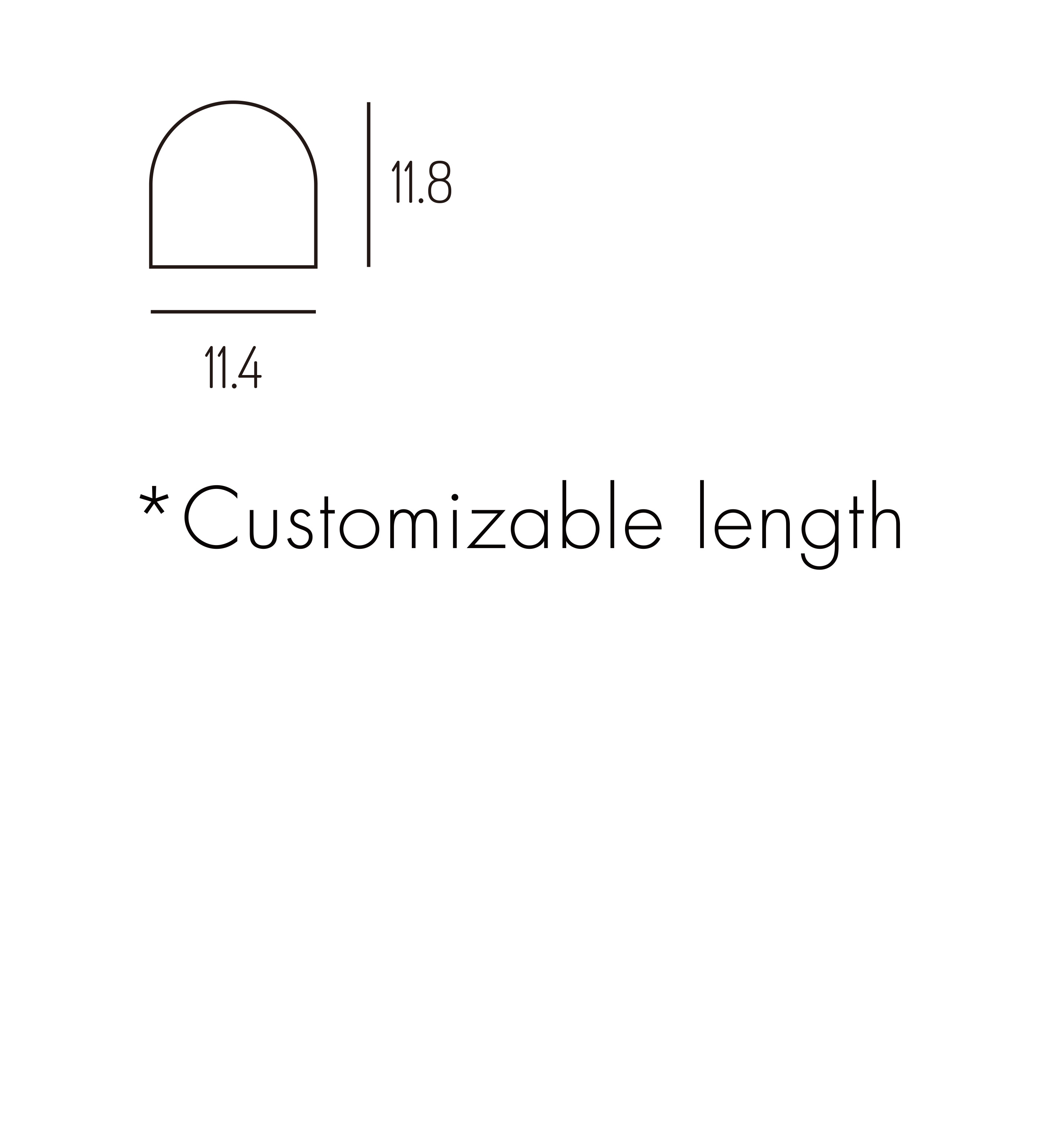

Technical Drawing
product data
  • Fixture Power
    6/10W/m
  • Driving Current
    /
  • Lumen Output
    480lm/m
    475lm/m
  • Fixture Efficiency
    35.0lm/w
    38.0lm/w
  • CRI
    90
  • Color Temperature
    2700K/3000K/4000K

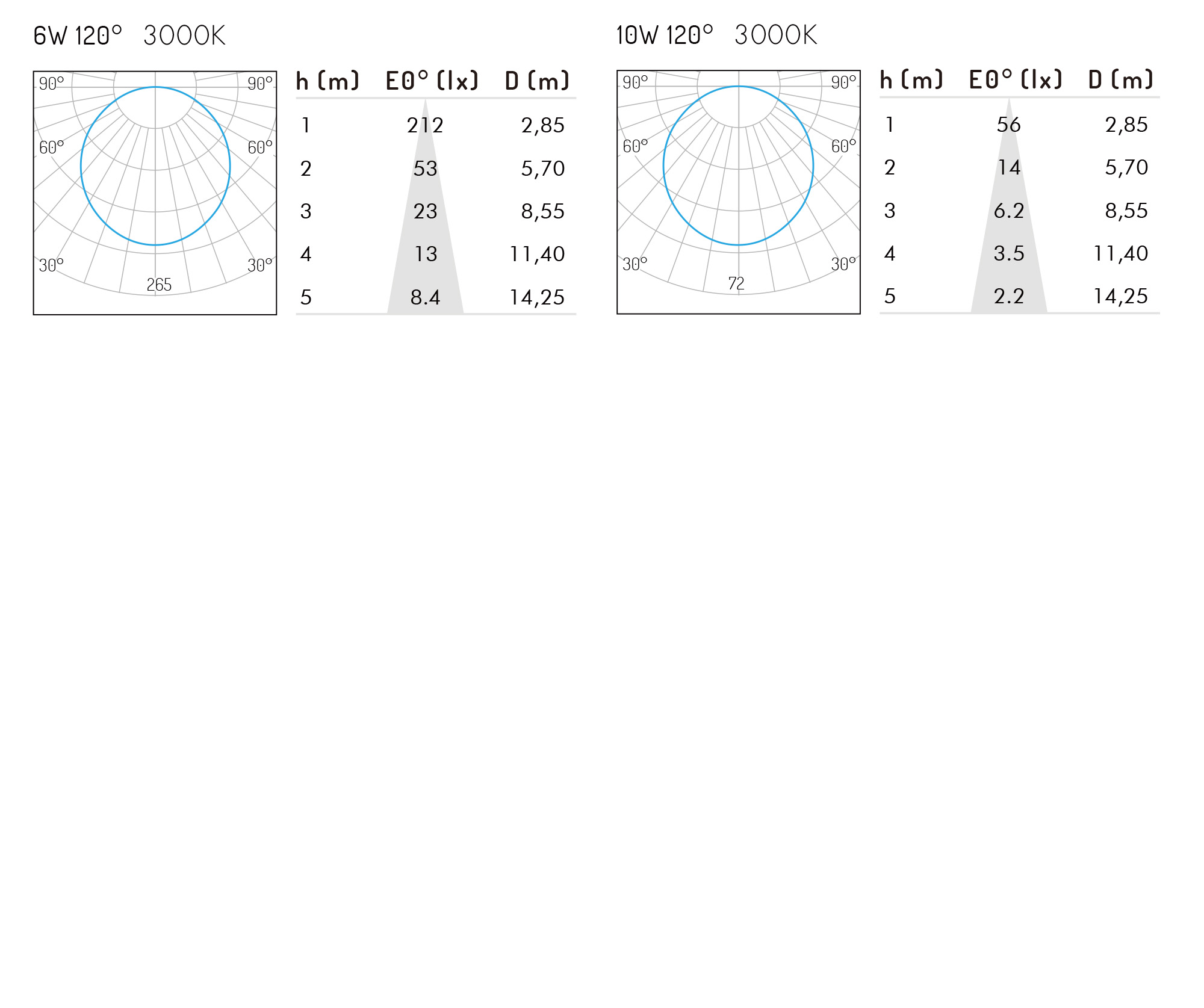

LIGHT DISTRIBUTION
  • Beam Angle
    120°
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
    Phase-cut Dimming
    0-10V Dimming
    DALI Dimming
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    W11.4*H11.8mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP65
  • Housing Material
    Extruded White Silicone
  • Housing Color
    /
Filter codes by
No.
All No.
07.0405
Power
All Power
10W/m
6W/m
Current
All Current
CCT
All CCT
2700 K
3000 K
4000 K
Flux
All Flux
210lm
350lm
Beam
All Beam
120°
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
W11.4*H11.8mm
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
07.0405
6W/m
2700 K
210lm
120°
W11.4*H11.8mm
6W/m
3000 K
210lm
120°
W11.4*H11.8mm
6W/m
4000 K
210lm
120°
W11.4*H11.8mm
10W/m
2700 K
350lm
120°
W11.4*H11.8mm
10W/m
3000 K
350lm
120°
W11.4*H11.8mm
10W/m
4000 K
350lm
120°
W11.4*H11.8mm
