LUNA
06.3013

LUNA Round 1200

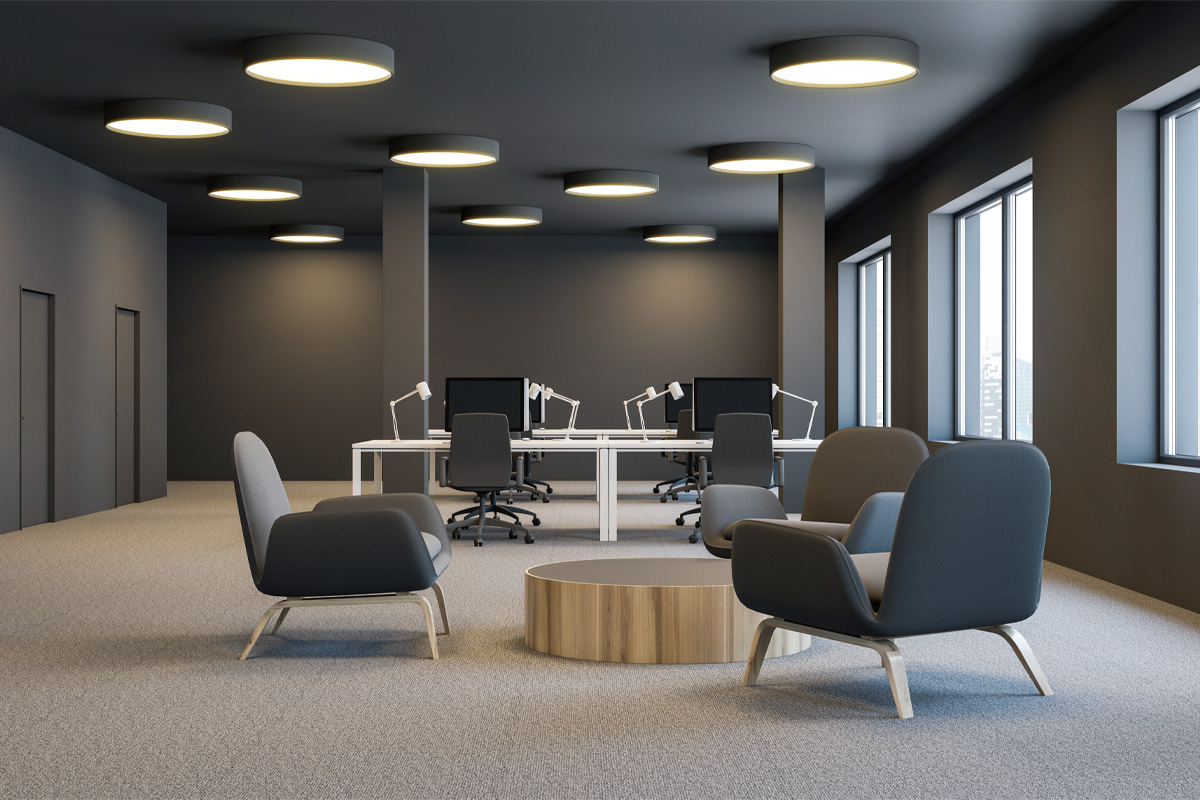

LUNA floats beneath the ceiling and emits soft, uniform and glare-free light with balanced shadowing. The LUNA family immediately gives any room a special look. A round luminaire with purist design and innovative technology that blends stylishly into any interior design. Thanks to various sizes, surface-mounted variants, optics and lighting technologies, creative zones can be attractively illuminated, as can apply at classrooms and prestigious sales spaces. The optical system with diffuser panel and microprisms ensures uniform, glare-free light and maximum visual comfort. The selected high-quality acrylic panel adopts the light transmission design of large luminous surface to Illuminate the top and surrounding of the lamp, reduce the shadow of the celling, make the whole space brighter and more transparent. This family uses a sealed design to against dust and insects, and its light source is equipped with a lens so the refraction leaching principle allows the light to spread more widely.

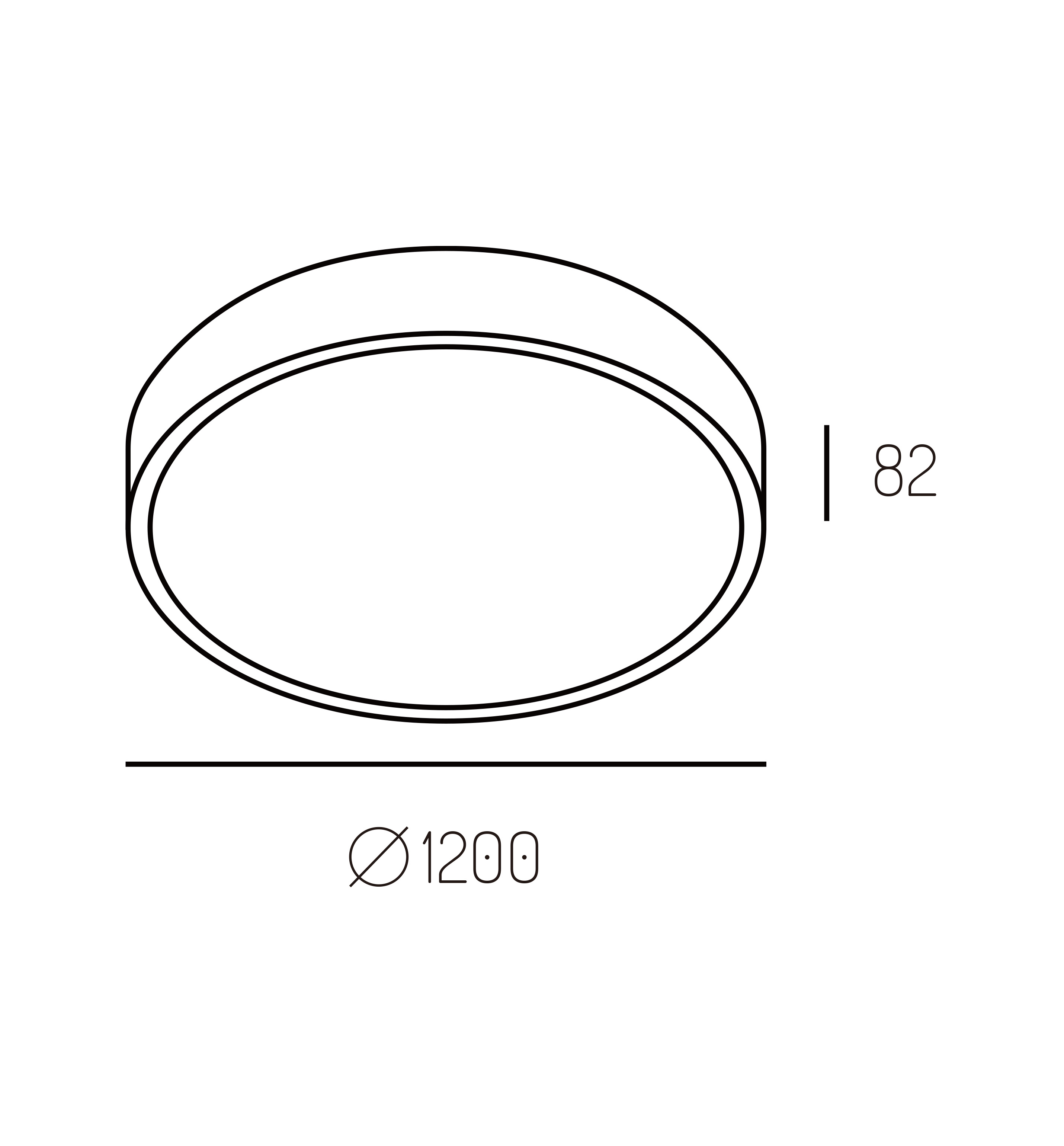

Technical Drawing
product data
  • Fixture Power
    150W
  • Driving Current
    /
  • Lumen Output
    16500lm
  • Fixture Efficiency
    65.6lm/w
  • CRI
    90
  • Color Temperature
    3000K/4000K/5000K
LIGHT DISTRIBUTION
  • Beam Angle
    110°
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
    0-10V Dimming
    DALI Dimming
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    D1200*H82mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP20
  • Housing Material
    Extruded Aluminium
  • Housing Color
    RAL9005
    Jet Black
    RAL9006
    White Aluminium
    RAL9016
    Traffic White
    RAL1035
    Pearl Beige
Accessories
Filter codes by
No.
All No.
06.3013
Power
All Power
150W
Current
All Current
CCT
All CCT
3000 K
4000 K
5000 K
Flux
All Flux
16500lm
Beam
All Beam
110°
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
D1200*H82mm
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
06.3013
150W
3000 K
16500lm
110°
D1200*H82mm
150W
4000 K
16500lm
110°
D1200*H82mm
150W
5000 K
16500lm
110°
D1200*H82mm
