INFINITO D
06.0010/06.0011.06.0012

INFINITO D

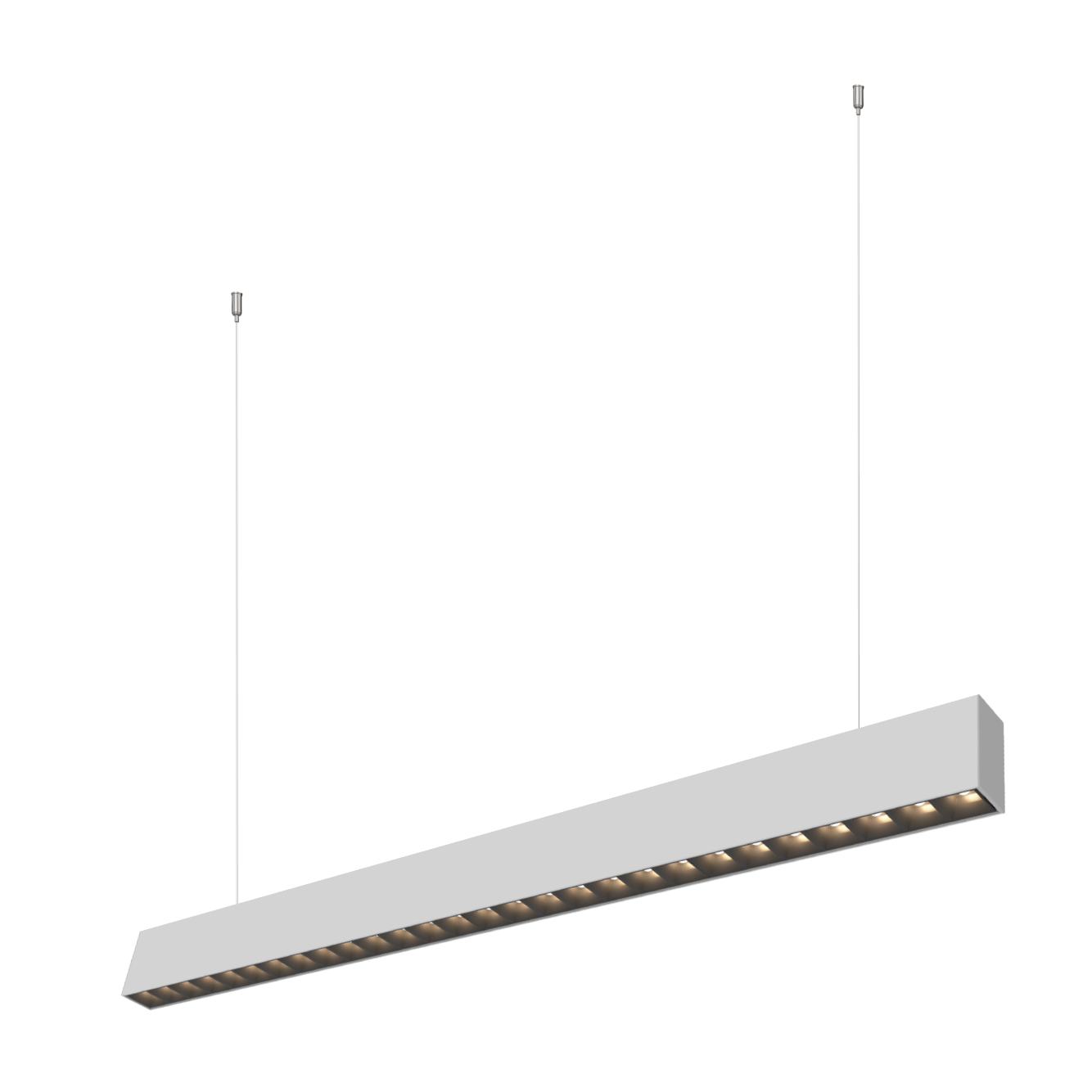

The‘INFINITO D’is a Direct luminaire, which is the ultimate collection for residence, office and other commercial spaces, an appliance designed to be excellent and smart. Several combinations of optics solution create a visual idea of comfort, while equips with smart components to push the technological boundary beyond. Two optical options are available, one is the floodlight with regular version and microprismatic version, and the other is the chrome reflector version with imported chips and lens. INFINITO family can achieve seamless stitching technology, truly leave no seam and no light leakage. True nano optics in four precise beam angles combined with an antiglare provide near invisible light and an UGR as low as <16. An additional variant with an opal diffuser rounds off the options. A multitude of options include several power levels and color temperatures plus options in tunable white, as well as two form factors to choose from. The luminaires are available in five housing and antiglare colors that can be freely combined. All luminaires with external drivers are powered with a transparent cable. Its features magnetically fastened end caps to provide a clean finish.

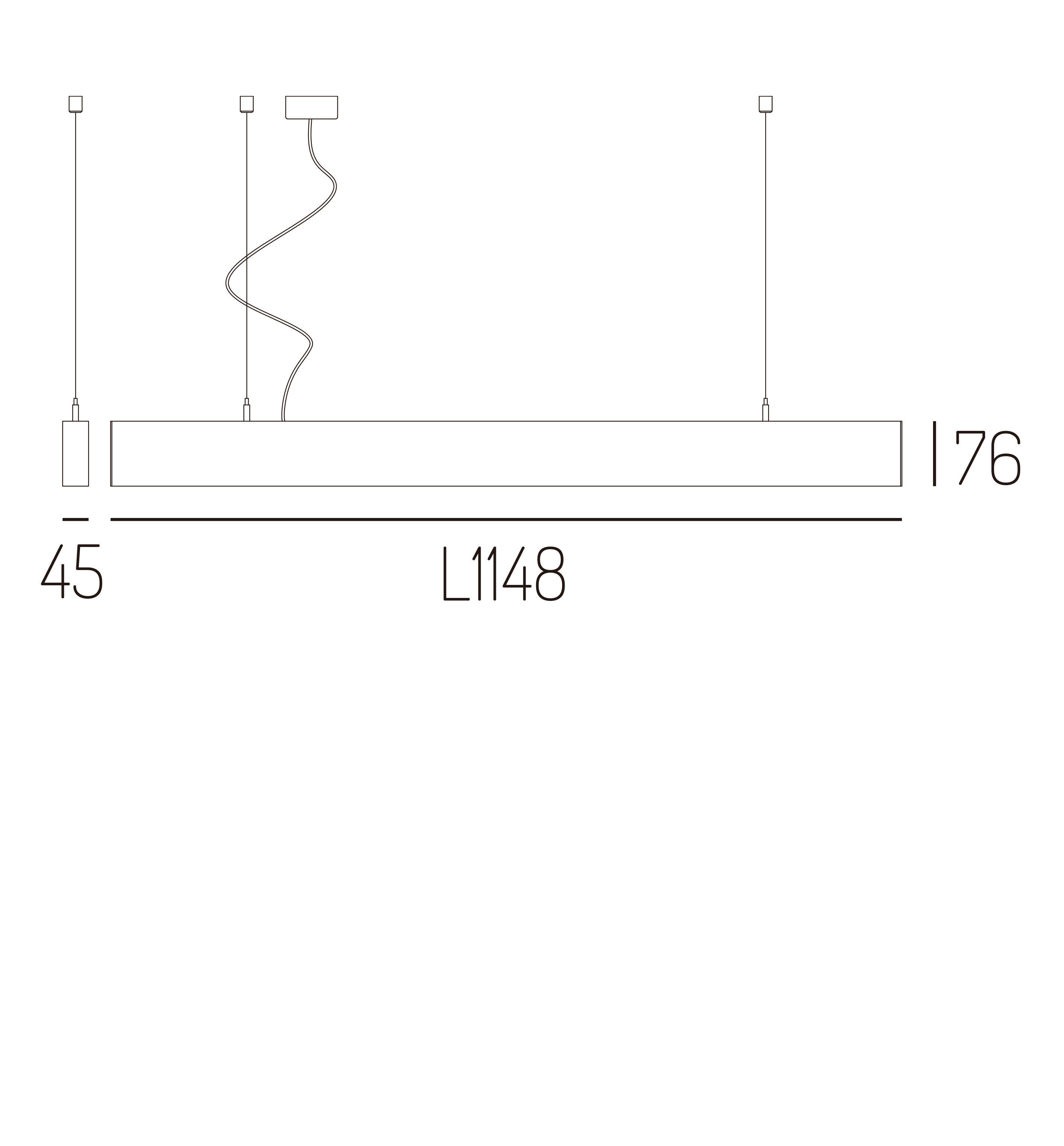

Technical Drawing
product data
  • Fixture Power
    30W/48W/72W
  • Driving Current
    /
  • Lumen Output
    2300lm/3450lm/4650lm
  • Fixture Efficiency
    76.6lm/w
    71.8lm/w
    64.6lm/w
  • CRI
    90
  • Color Temperature
    3000K/4000K/5000K

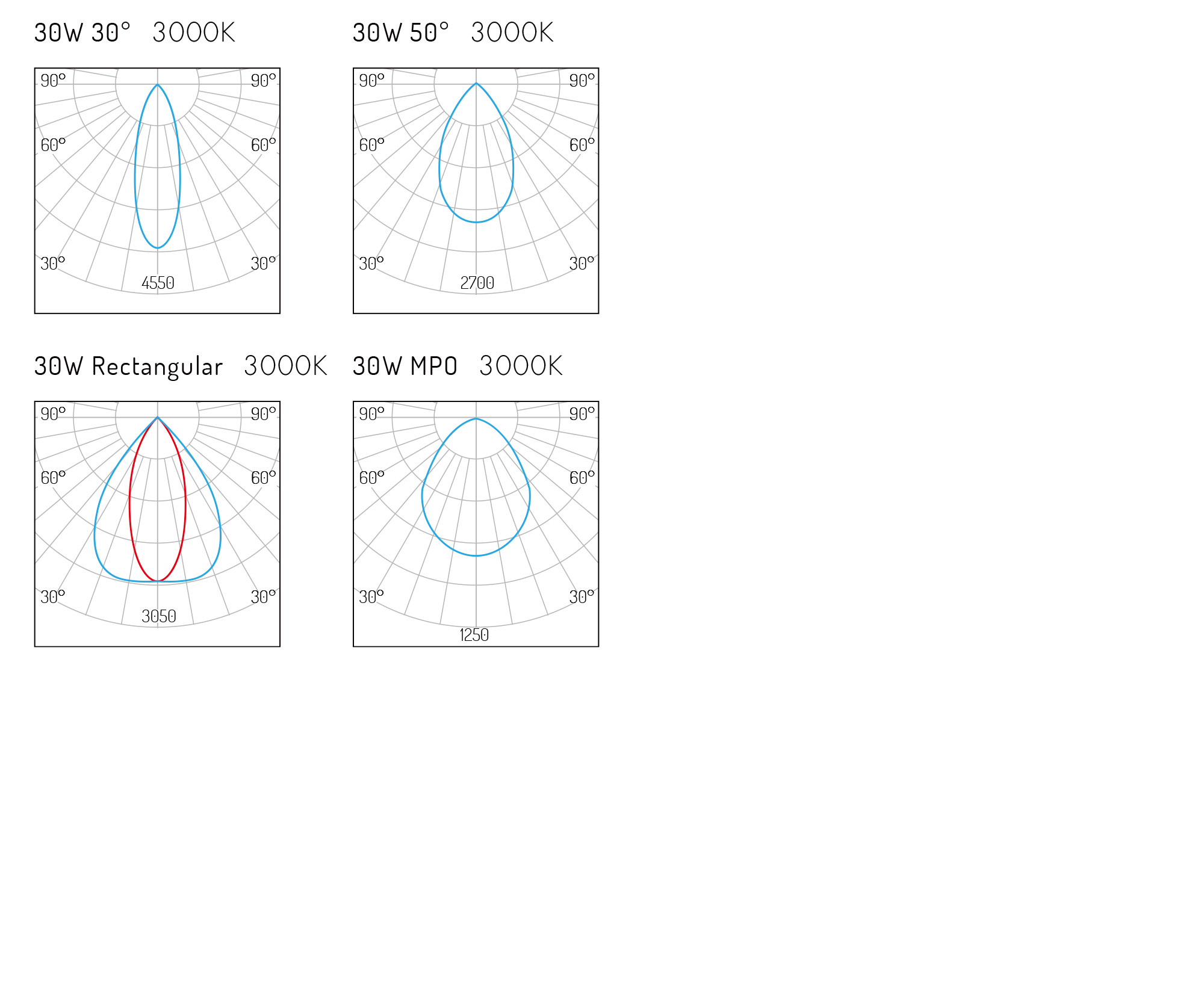

LIGHT DISTRIBUTION
  • Beam Angle
    30°/50°
    Rectangular/MPO
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
    0/1-10V Dimming
    DALI Dimming
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    L1148/1722/2296*
    W45*H76mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP20
  • Housing Material
    Extruded Aluminium
  • Housing Color
    RAL9005
    Jet Black
    RAL9006
    White Aluminium
    RAL9016
    Traffic White
    RAL1035
    Pearl Beige
Accessories
Filter codes by
No.
All No.
06.0010
06.0011
06.0012
Power
All Power
30W
48W
72W
Current
All Current
CCT
All CCT
3000K
4000K
5000K
Flux
All Flux
2300lm
3450lm
4650lm
Beam
All Beam
30°
50°
MPO
Rectangular
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
L1148*W45*H76mm
L1722*W45*H76mm
L2296*W45*H76mm
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
06.0010
30W
3000K
2300lm
30°
L1148*W45*H76mm
06.0010
30W
4000K
2300lm
30°
L1148*W45*H76mm
06.0010
30W
5000K
2300lm
30°
L1148*W45*H76mm
06.0010
30W
3000K
2300lm
50°
L1148*W45*H76mm
06.0010
30W
4000K
2300lm
50°
L1148*W45*H76mm
06.0010
30W
5000K
2300lm
50°
L1148*W45*H76mm
06.0010
30W
3000K
2300lm
Rectangular
L1148*W45*H76mm
06.0010
30W
4000K
2300lm
Rectangular
L1148*W45*H76mm
06.0010
30W
5000K
2300lm
Rectangular
L1148*W45*H76mm
06.0010
30W
3000K
2300lm
MPO
L2296*W45*H76mm
06.0010
30W
4000K
2300lm
MPO
L1148*W45*H76mm
06.0010
30W
5000K
2300lm
MPO
L1148*W45*H76mm
06.0011
48W
3000K
3450lm
30°
L1722*W45*H76mm
06.0011
48W
4000K
3450lm
30°
L1722*W45*H76mm
06.0011
48W
5000K
3450lm
30°
L1722*W45*H76mm
06.0011
48W
3000K
3450lm
50°
L1722*W45*H76mm
06.0011
48W
4000K
3450lm
50°
L1722*W45*H76mm
06.0011
48W
5000K
3450lm
50°
L1722*W45*H76mm
06.0011
48W
3000K
3450lm
Rectangular
L1722*W45*H76mm
06.0011
48W
4000K
3450lm
Rectangular
L1722*W45*H76mm
06.0011
48W
5000K
3450lm
Rectangular
L1722*W45*H76mm
06.0011
48W
3000K
3450lm
MPO
L1722*W45*H76mm
06.0011
48W
4000K
3450lm
MPO
L1722*W45*H76mm
06.0011
48W
5000K
3450lm
MPO
L1722*W45*H76mm
06.0012
72W
3000K
4650lm
30°
L2296*W45*H76mm
06.0012
72W
4000K
4650lm
30°
L2296*W45*H76mm
06.0012
72W
5000K
4650lm
30°
L2296*W45*H76mm
06.0012
72W
3000K
4650lm
50°
L2296*W45*H76mm
06.0012
72W
4000K
4650lm
50°
L2296*W45*H76mm
06.0012
72W
5000K
4650lm
50°
L2296*W45*H76mm
06.0012
72W
3000K
4650lm
Rectangular
L2296*W45*H76mm
06.0012
72W
4000K
4650lm
Rectangular
L2296*W45*H76mm
06.0012
72W
5000K
4650lm
Rectangular
L2296*W45*H76mm
06.0012
72W
3000K
4650lm
MPO
L2296*W45*H76mm
06.0012
72W
4000K
4650lm
MPO
L2296*W45*H76mm
06.0012
72W
5000K
4650lm
MPO
L2296*W45*H76mm
