PANDORA
05.0301

PANDORA-Round

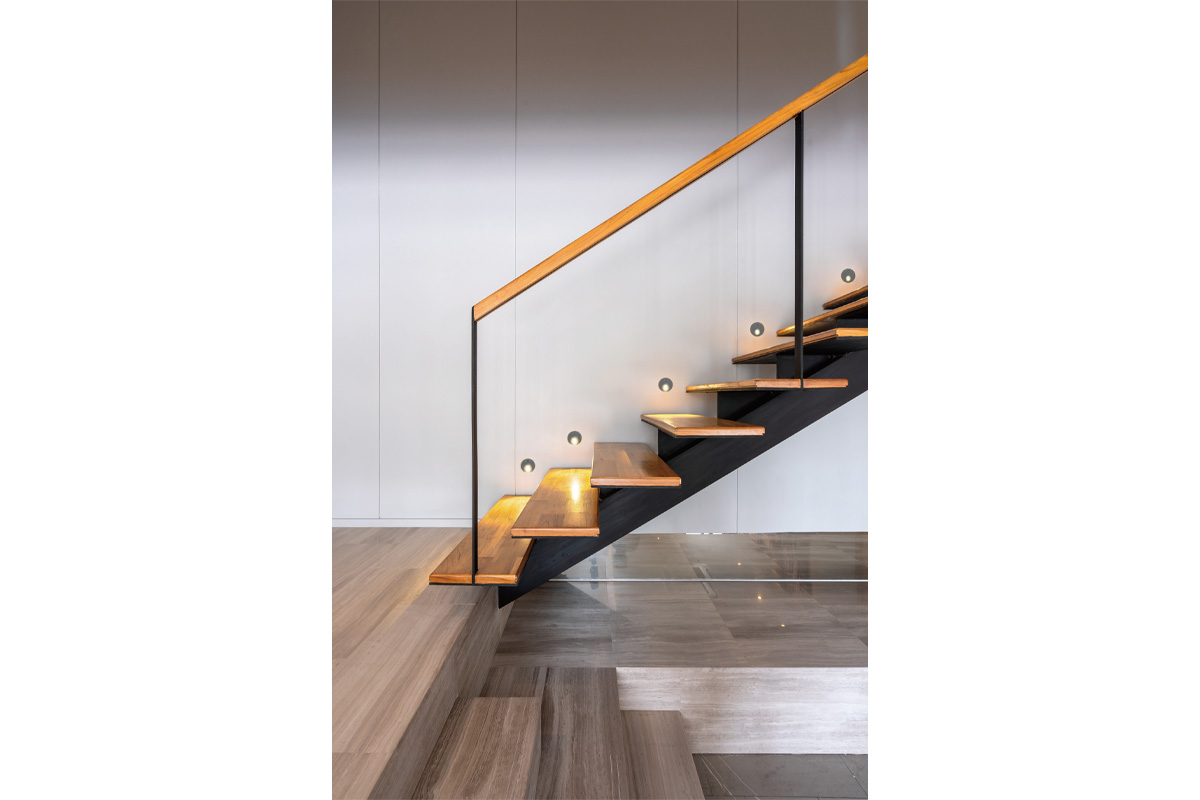

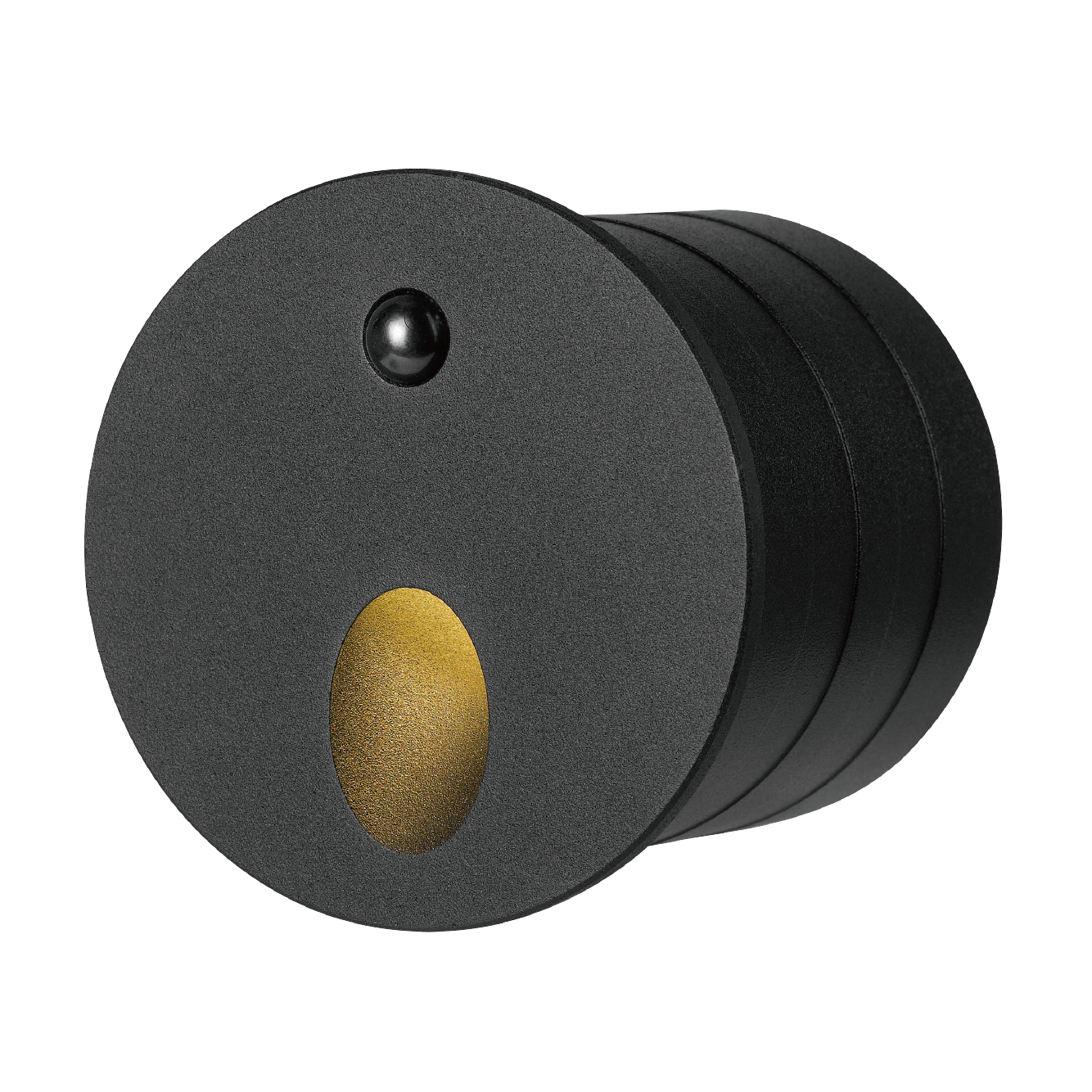

These wall luminaires have an extruded aluminum profile employing die-casting technology and a very firm structure. The surface is treated by powder coating, providing a very durable color. These lighting fixtures represent an important addition to the general atmosphere of a space providing subtle and high-quality lighting. They possess a clean and minimalistic aesthetic. By using the newest generation of high performance LED chips, they have a low heat resistance and high lighting efficiency. They employ highly accurate optics to achieve a superior lighting spot effect.

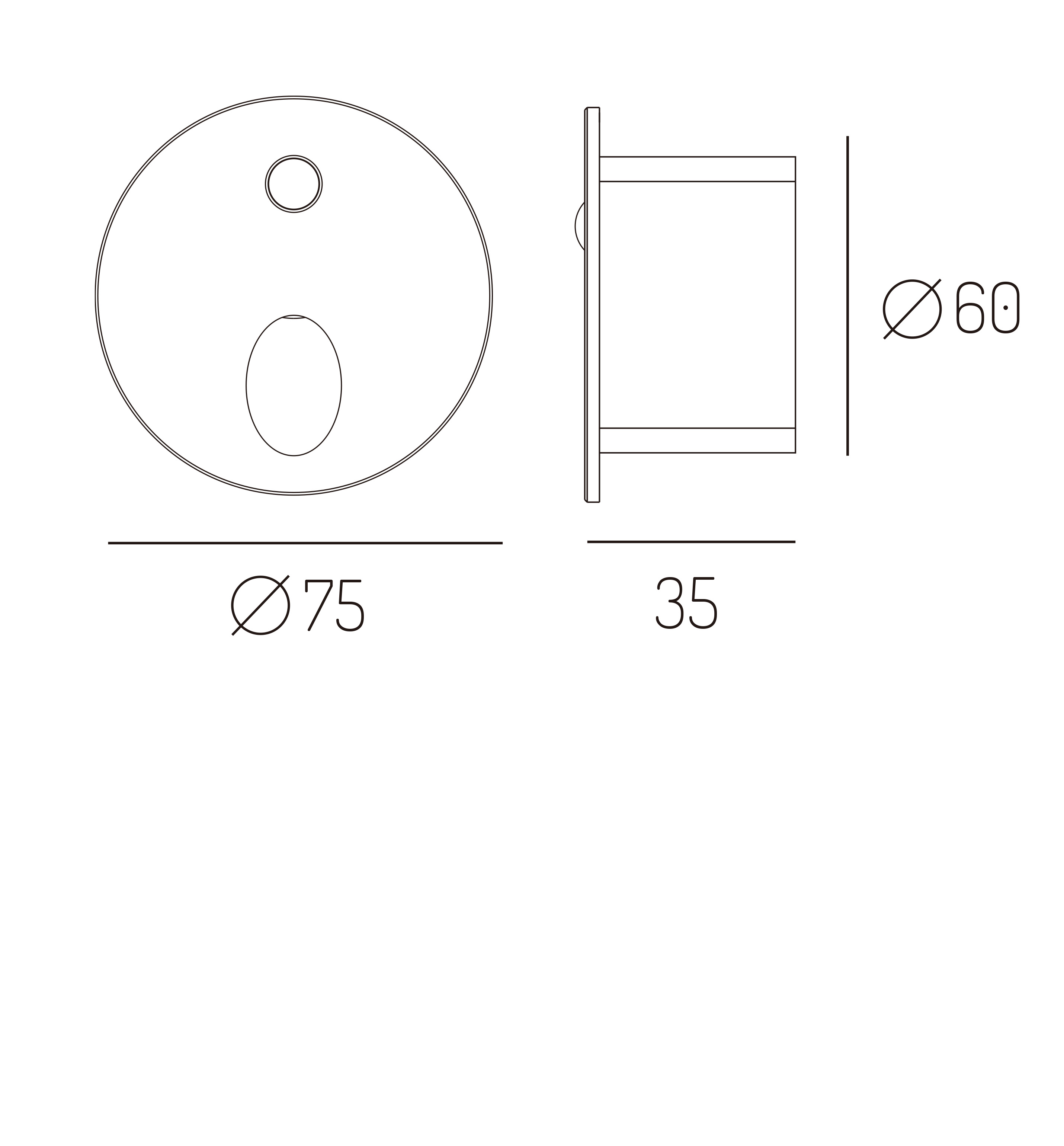

Technical Drawing
product data
  • Fixture Power
    3W
  • Driving Current
    700mA
  • Lumen Output
    15lm
  • Fixture Efficiency
    5.0lm/w
  • CRI
    90
  • Color Temperature
    2700K/3000K/4000K

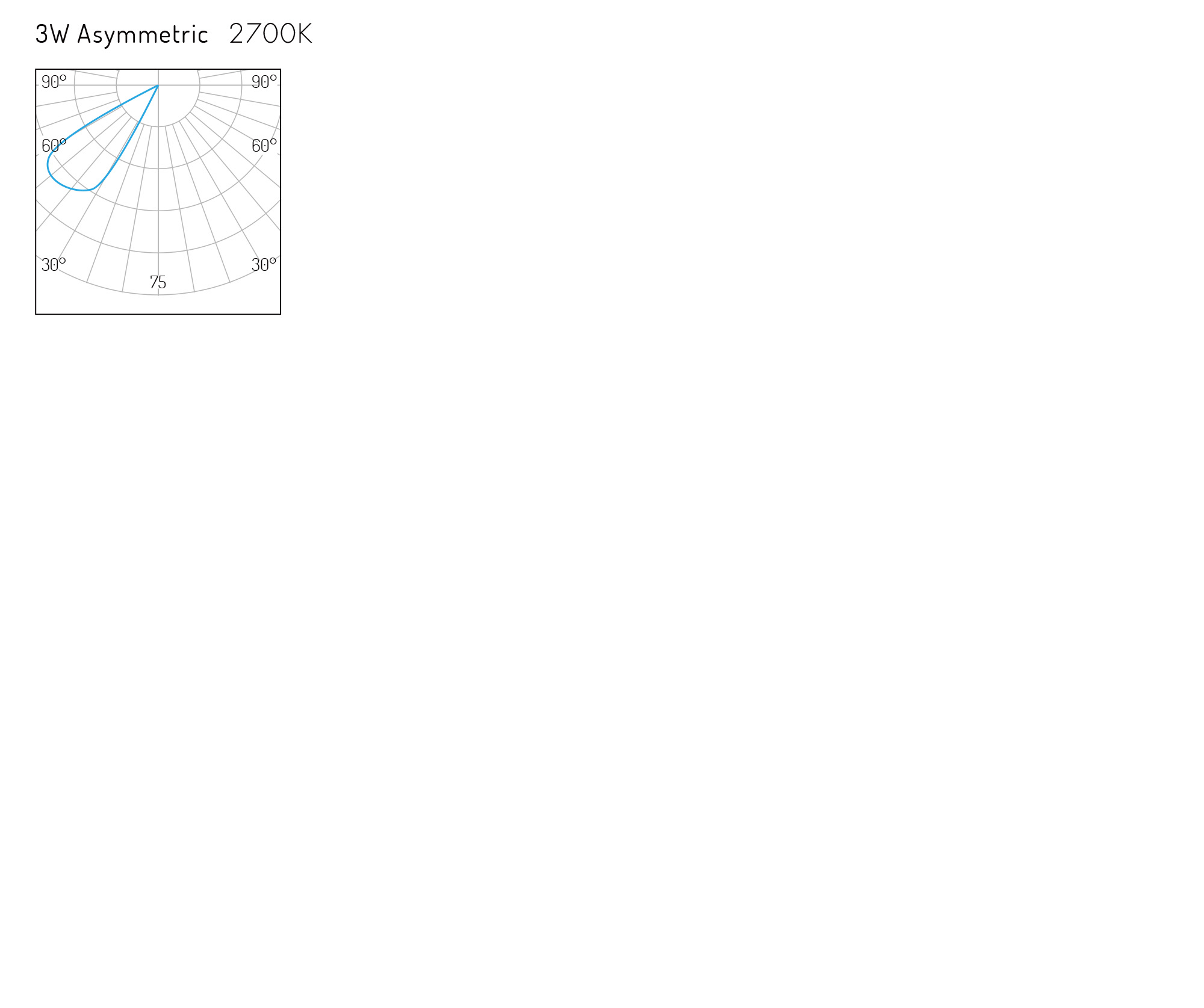

LIGHT DISTRIBUTION
  • Beam Angle
    Asymmetric
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    Ø75*H35mm
  • Hole Size
    Ø69*H65
  • Weight
    /
  • IP Rating
    IP20
  • Housing Material
    Machined Aluminium
  • Housing Color
    RAL9005
    Jet Black
    RAL9006
    White Aluminium
    RAL9016
    Traffic White
Accessories
Filter codes by
No.
All No.
Power
All Power
3W
Current
All Current
700mA
CCT
All CCT
2700K
3000K
4000K
Flux
All Flux
15lm
Beam
All Beam
Asymmetric
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
3W
700mA
2700K
15lm
Asymmetric
3W
700mA
3000K
15lm
Asymmetric
3W
700mA
4000K
15lm
Asymmetric
