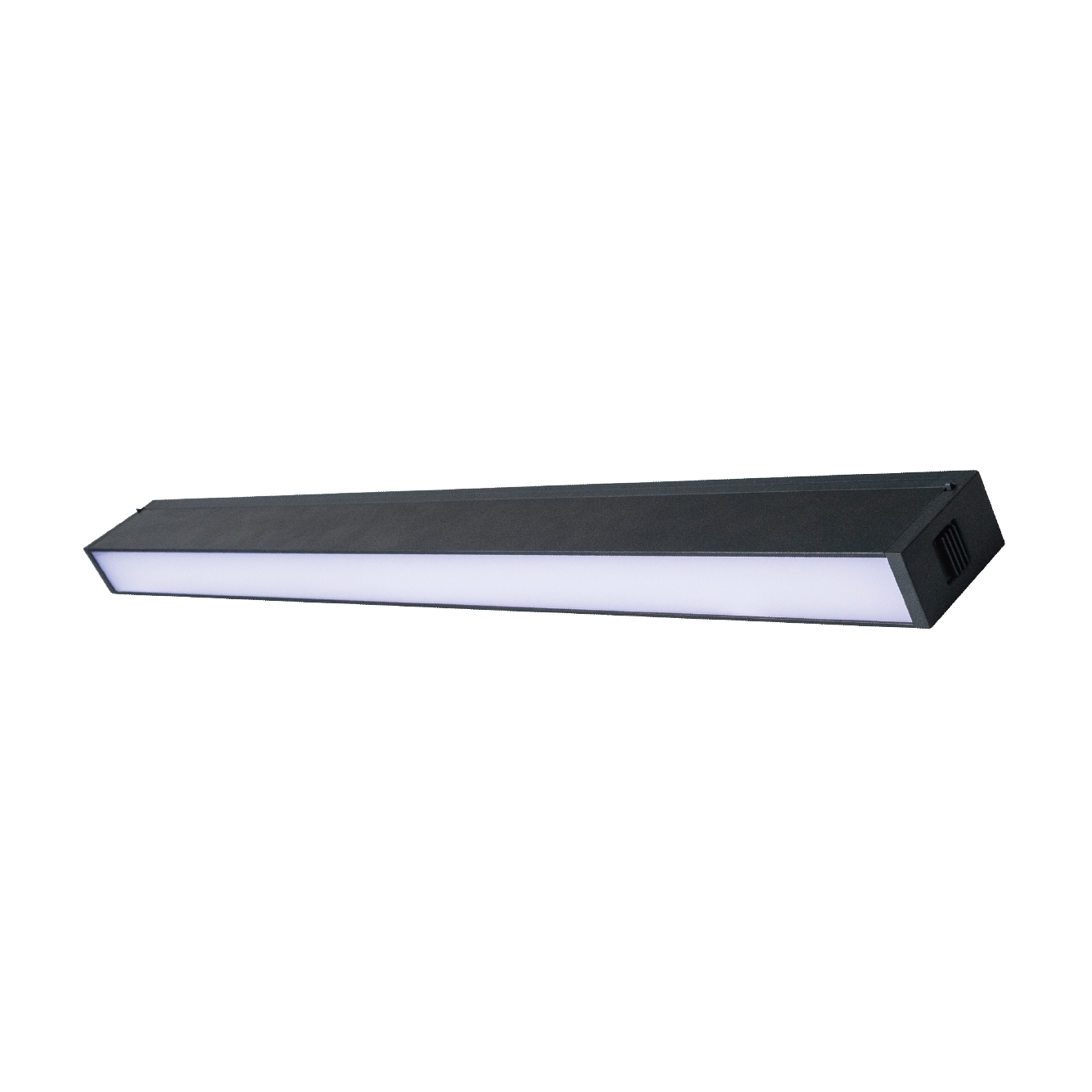

BULLONA PLUS
03.3072

LINE 970

Difference spaces require different lighting applications which shall be considered in each dimension such as adequate photometry, luminaries form factors and installation methods. Bullona Plus is an ideal solution for public spaces and office applications. Bullona Plus has an expanded track profile width of 40mm to incorporate a larger reflector array system as well as a larger emitting surface with lower luminace both are crucial parameter for standard compliance applications. Same flexibility as Bulluna system in different connection and combination options are flexibly adapted to the space set-up. Tracks and lighting insets are painted in extra color offerings, further customization for your project is also available. Bullona Plus is a larger system but not only about large.

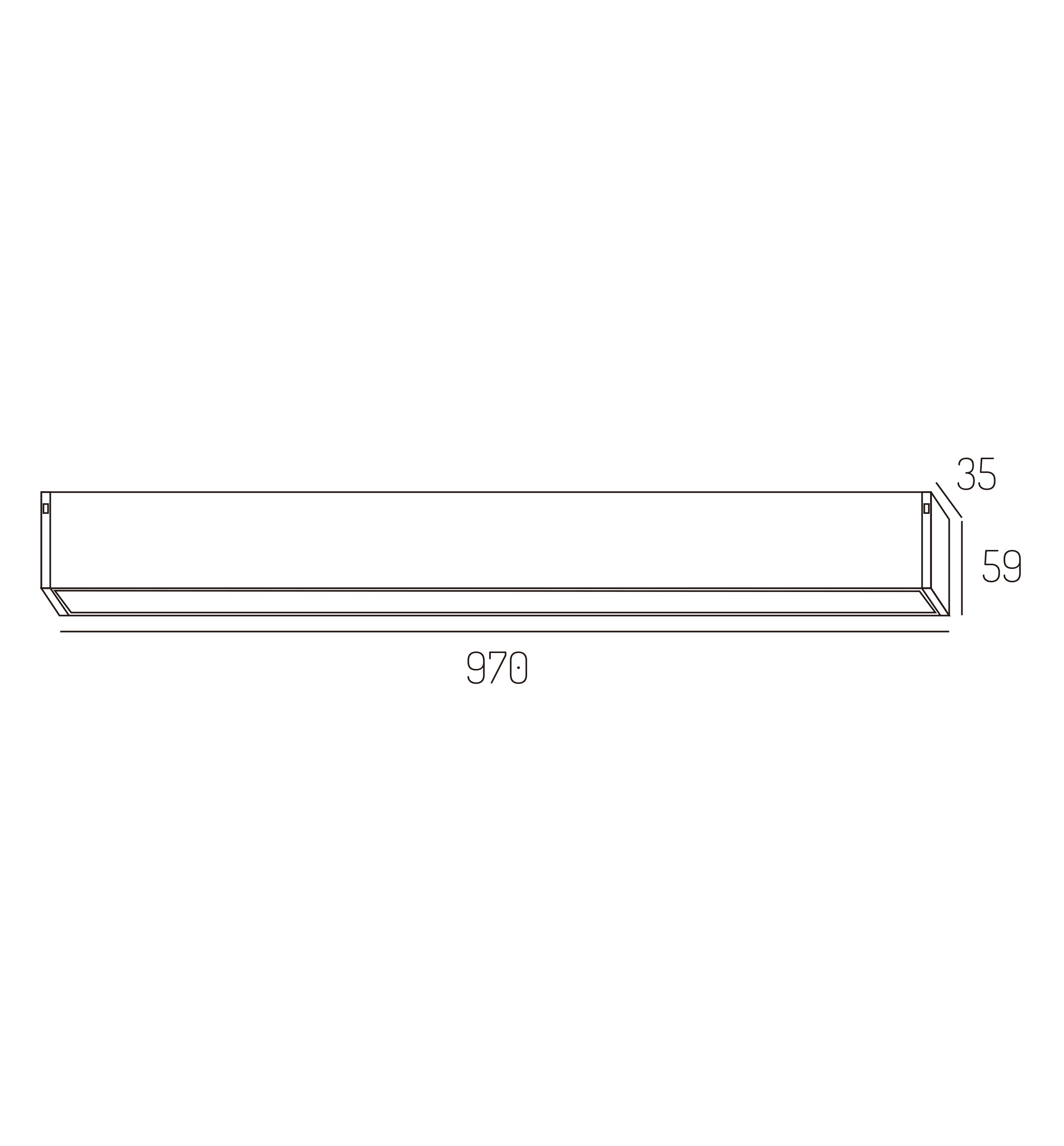

Technical Drawing
product data
  • Fixture Power
    30W
  • Driving Current
    /
  • Lumen Output
    2260lm
  • Fixture Efficiency
    75.3lm/w
  • CRI
    90
  • Color Temperature
    2700K/3000K/4000K

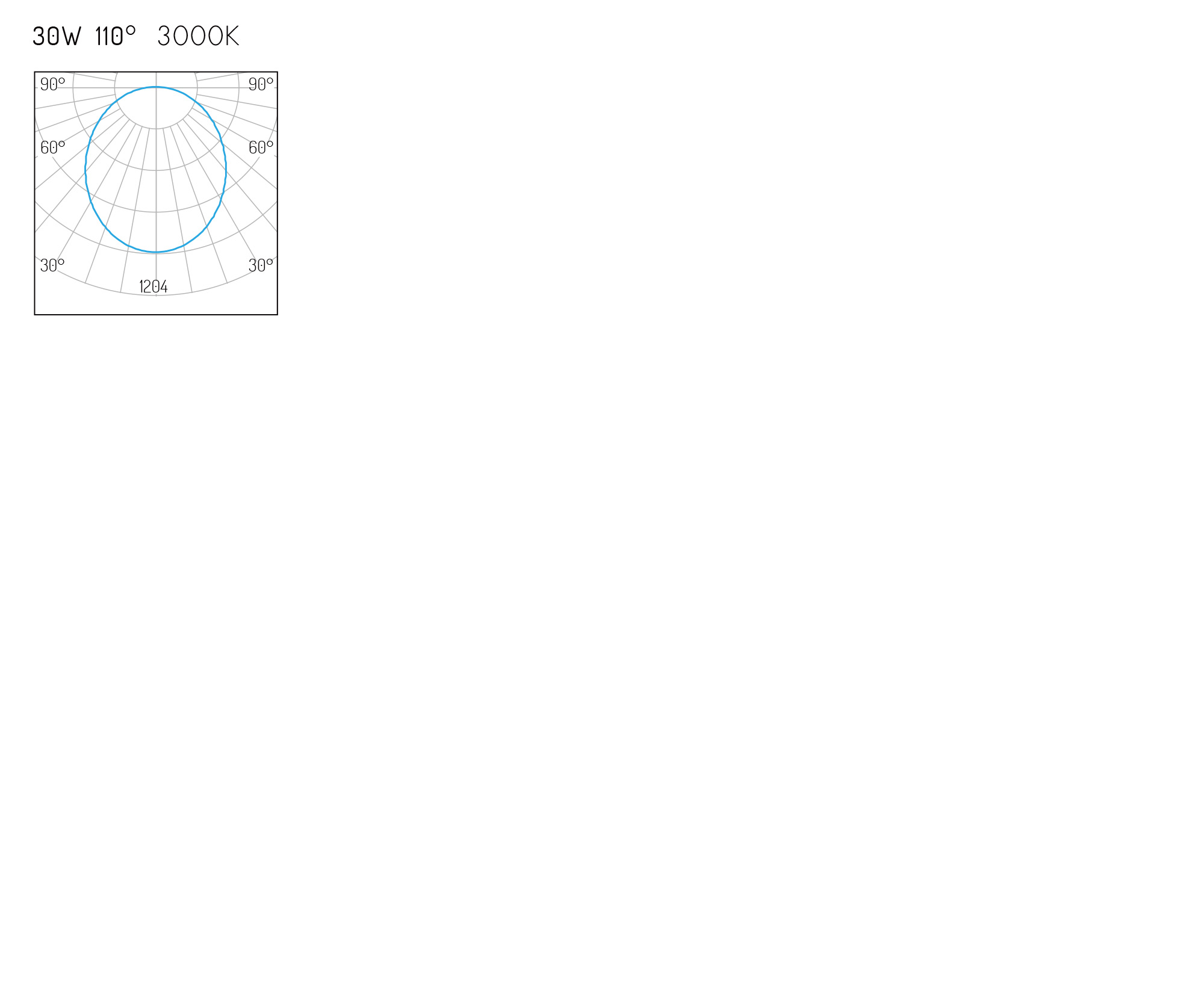

LIGHT DISTRIBUTION
  • Beam Angle
    110°
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
    0-10V Dimming(24V)
    DALI Dimming
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    L970*W3*H59mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP20
  • Housing Material
    Extruded Aluminium
  • Housing Color
    RAL9005
    Jet Black
    RAL9016
    Traffic White
Filter codes by
No.
All No.
Power
All Power
30W
Current
All Current
CCT
All CCT
2700K
3000K
4000K
Flux
All Flux
2260lm
Beam
All Beam
110°
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
L970*W35*H59mm
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
30W
2700K
2260lm
110°
L970*W35*H59mm
30W
3000K
2260lm
110°
L970*W35*H59mm
30W
4000K
2260lm
110°
L970*W35*H59mm
