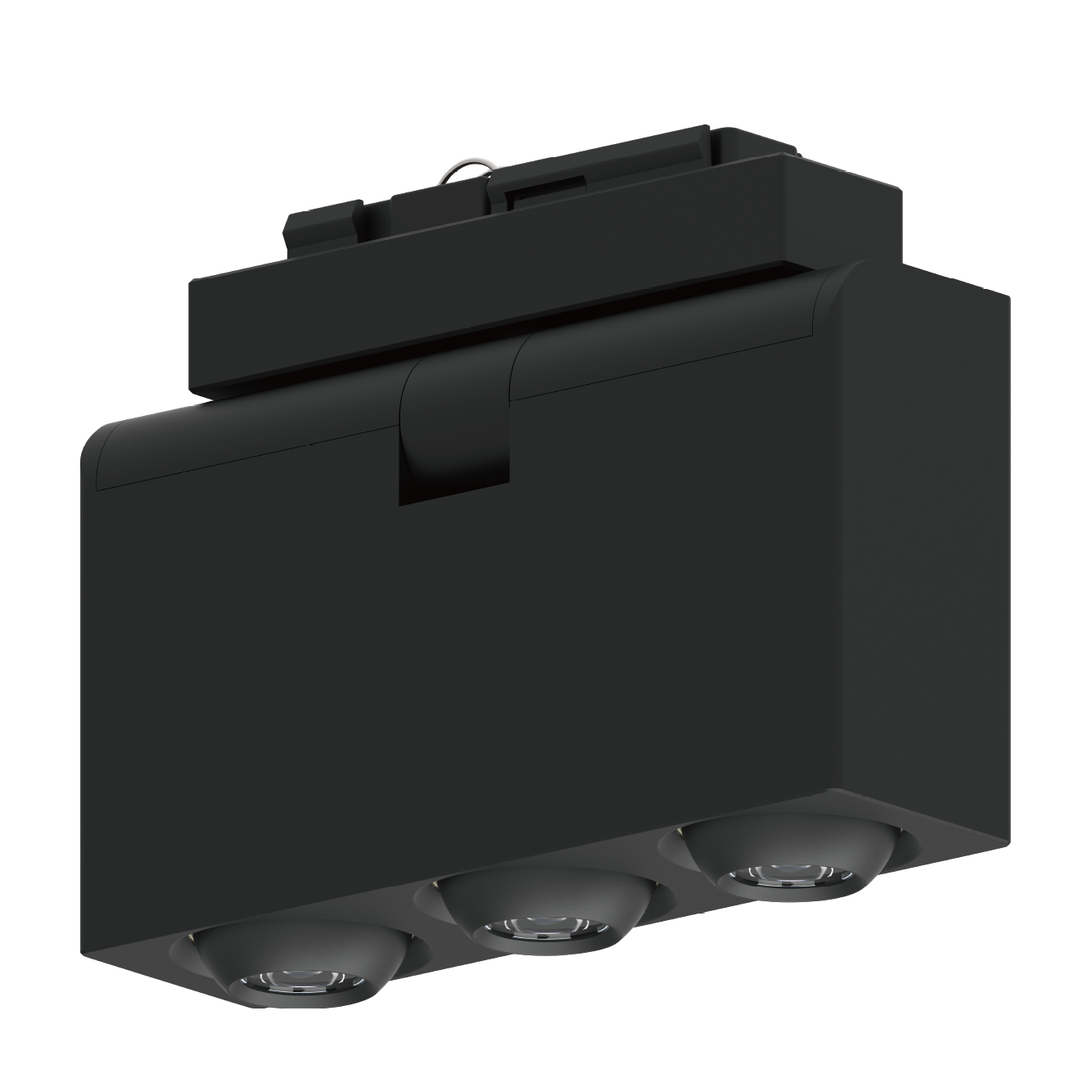

BULLONA MINI
03.1060

Linear Spot Gimbal

Bullona Mini born to shine the focal point in spaceswhile keep a low key. Light travels through the space toshine the object it reached. In some cases, we have several objects that need special attention. With traditional lighting tools, light is likely to crisscross in the space which results in glare, chaos and higher energy consumption. Bullona Mini is UOZU’s answer, down to 12 millimeters diameter covering 1 watt to 6 watts equally versatile light distributions. Innovative linear gimbal spotlight offering 3 way adjustability in a single profile. To obtain a minimalistic final effect, Bullona mini equally offers same construction profile as the standard and compact version to better integrate in the structure.

Technical Drawing
product data
  • Fixture Power
    3W
  • Driving Current
    /
  • Lumen Output
    268lm
  • Fixture Efficiency
    89.3lm/w
  • CRI
    90
  • Color Temperature
    2700K/3000K/4000K/5000K

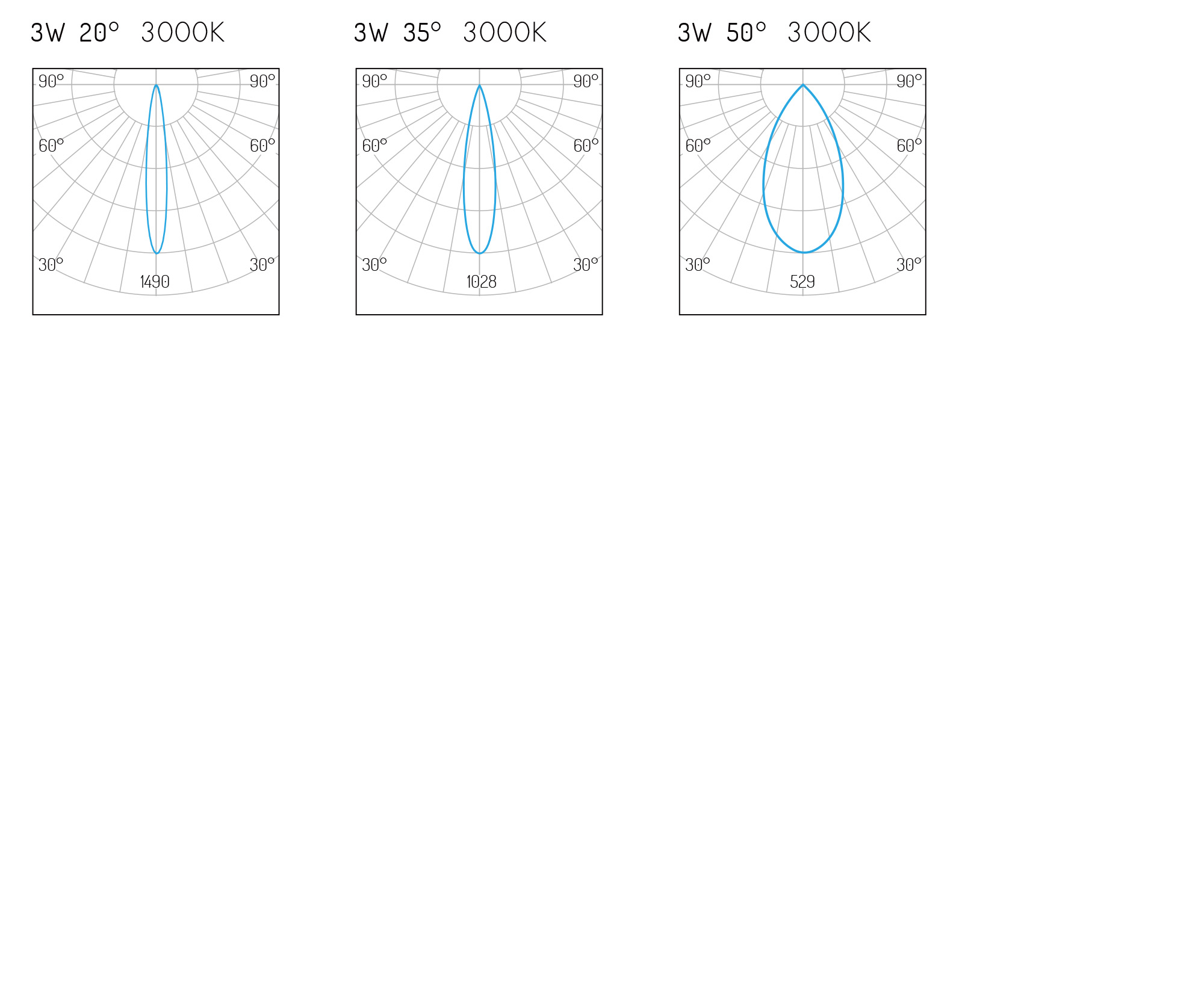

LIGHT DISTRIBUTION
  • Beam Angle
    20°/35°/50°
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
    PWM Dimming
    0-10V Dimming
    DALI Dimming
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    L70*W20*H40mm
  • Hole Size
    /
  • Weight
    /
  • IP Rating
    IP20
  • Housing Material
    Machined Aluminium
  • Housing Color
    RAL9005
    Jet Black
Filter codes by
No.
All No.
Power
All Power
3W
Current
All Current
CCT
All CCT
2700K
3000K
4000K
5000K
Flux
All Flux
268lm
Beam
All Beam
20°
35°
50°
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
L70*W20*H40mm
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
3W
2700K
268lm
20°
L70*W20*H40mm
3W
3000K
268lm
20°
L70*W20*H40mm
3W
4000K
268lm
20°
L70*W20*H40mm
3W
5000K
268lm
20°
L70*W20*H40mm
3W
2700K
268lm
35°
L70*W20*H40mm
3W
3000K
268lm
35°
L70*W20*H40mm
3W
4000K
268lm
35°
L70*W20*H40mm
3W
5000K
268lm
35°
L70*W20*H40mm
3W
2700K
268lm
50°
L70*W20*H40mm
3W
3000K
268lm
50°
L70*W20*H40mm
3W
4000K
268lm
50°
L70*W20*H40mm
3W
5000K
268lm
50°
L70*W20*H40mm
