APOLLO
01.0560

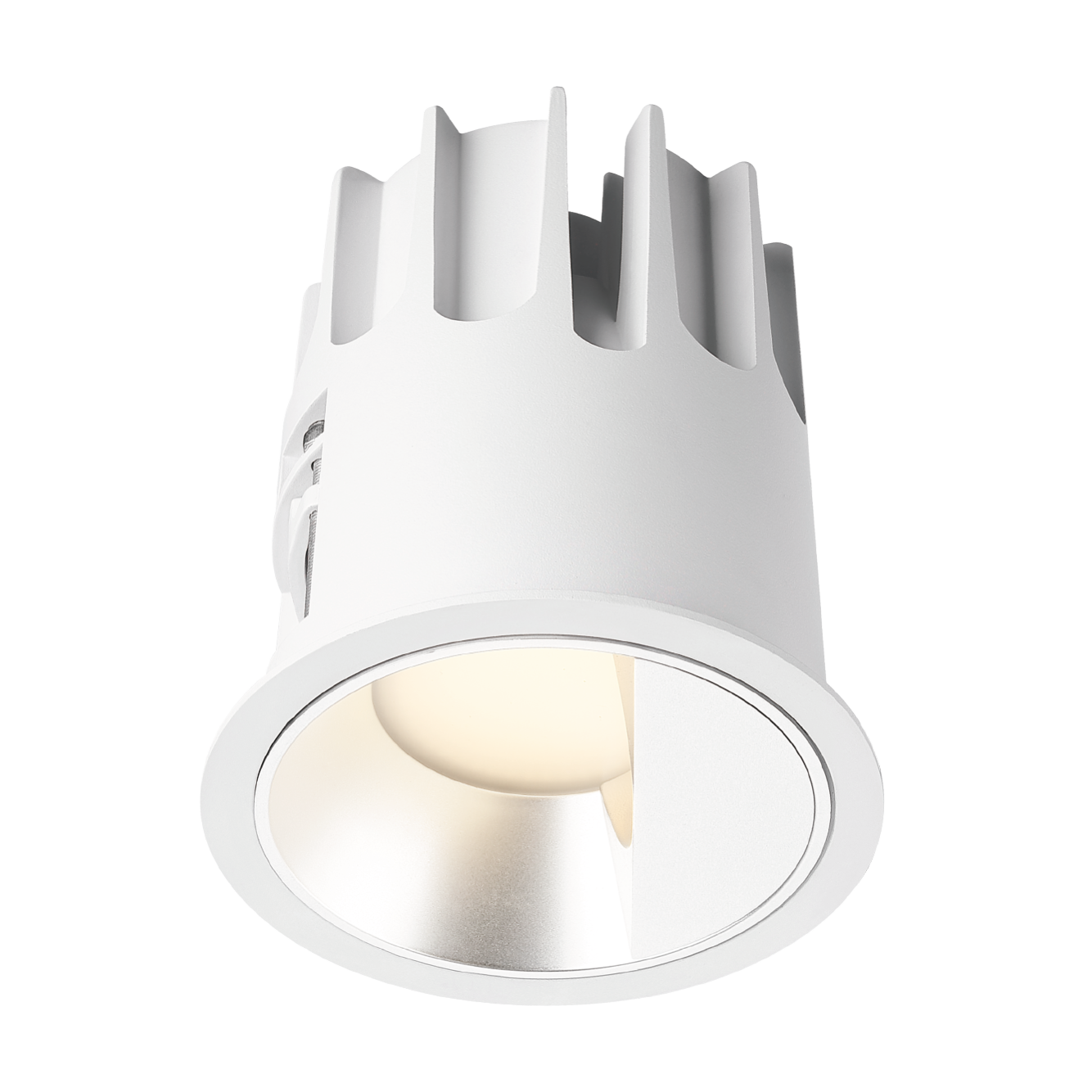

Wall Washer - Trim & Round

The Apollo wall washers have an extruded aluminum profile employing die-casting technology and a very firm structure. The surface is treated by varnishing, with a very durable color. By using the newest generation of high performance CITIZEN COB LED chips, they have a low heat resistance and high lighting efficiency. The light is distributed asymmetrically obtaining a high-quality and soft wall-washing effect. The products employ highly accurate optics to achieve a superior lighting spot effect, with anti-glare technology

Technical Drawing
product data
  • Fixture Power
    13W/15W
  • Driving Current
    300mA/350mA
  • Lumen Output
    422lm/501lm
  • Fixture Efficiency
    32.4lm/w
    33.4lm/w
  • CRI
    90
  • Color Temperature
    2700K/3000K/4000K

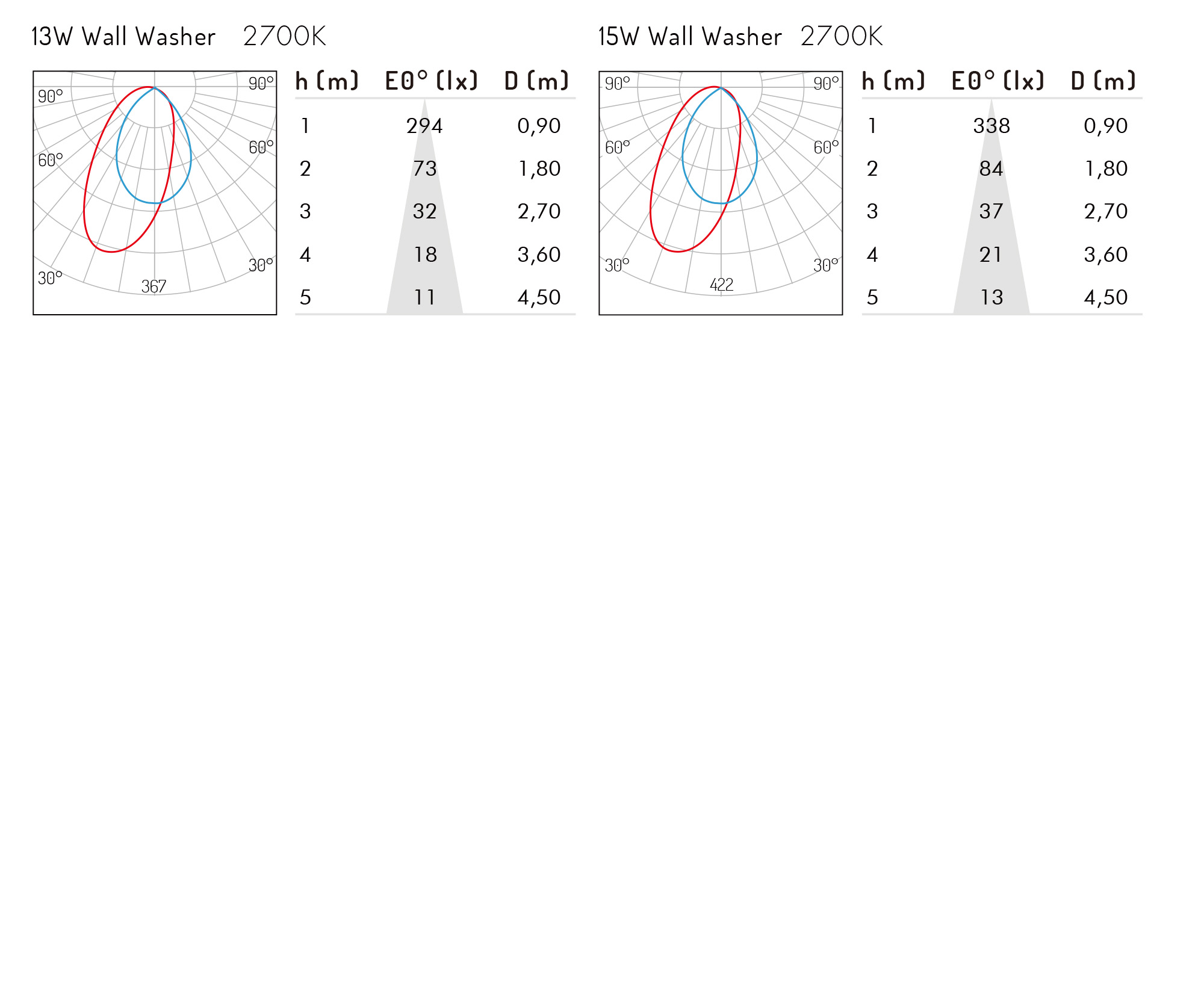

LIGHT DISTRIBUTION
  • Beam Angle
    Wall Washer
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
    Phase-cut Dimming
    0-10V Dimming
    DALI Dimming
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    Ø84*H96mm
  • Hole Size
    Ø75mm
  • Weight
    0.43kg
  • IP Rating
    IP20
  • Housing Material
    Die-cast Aluminium
  • Housing Color
    RAL9006
    White Aluminium
    RAL9016
    Traffic White
    RAL9005
    Jet Black
Filter codes by
No.
All No.
Power
All Power
13W
15W
Current
All Current
300mA
350mA
CCT
All CCT
2700K
3000K
4000K
Flux
All Flux
422lm
501lm
Beam
All Beam
Wall Washer
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
13W
300mA
2700K
422lm
Wall Washer
Specifications Installation instructions IES
13W
300mA
3000K
422lm
Wall Washer
Specifications Installation instructions IES
13W
300mA
4000K
422lm
Wall Washer
Specifications Installation instructions IES
15W
350mA
2700K
501lm
Wall Washer
Specifications Installation instructions IES
15W
350mA
3000K
501lm
Wall Washer
Specifications Installation instructions IES
15W
350mA
4000K
501lm
Wall Washer
Specifications Installation instructions IES
Reset all filters
