MERCURIO
01.0520

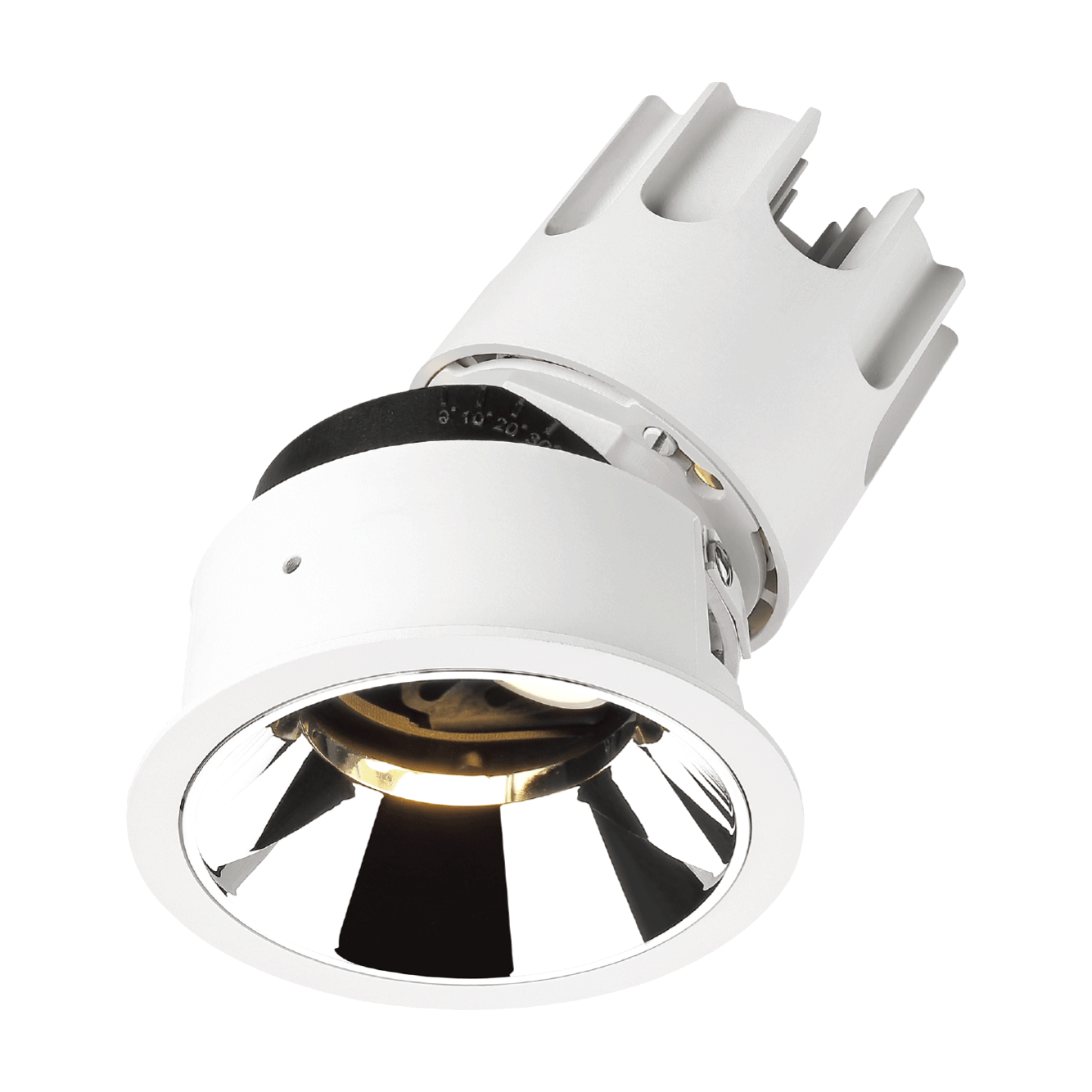

Adjustable Downlight - Trim & Round
The Mercurio family is a group of round trim downlights of varied sizes and characteristics. They have an extruded aluminum profile employing die-casting technology and a very firm structure. The surface is treated by varnishing, with a very durable color. They are adjustable and remarkably flexible. By using the newest generation of high performance CITIZEN COB LED chips, they have a low heat resistance and high lighting efficiency. They also have an excellent heat dissipation through the internal structure. The products in the family employ highly accurate optics to achieve high efficiency and superior lighting spot effect, with anti-glare technology (UGR<19). The installation is quick and convenient thanks to the additional components of the downlights: stainless-steel clips folded brackets, or both.

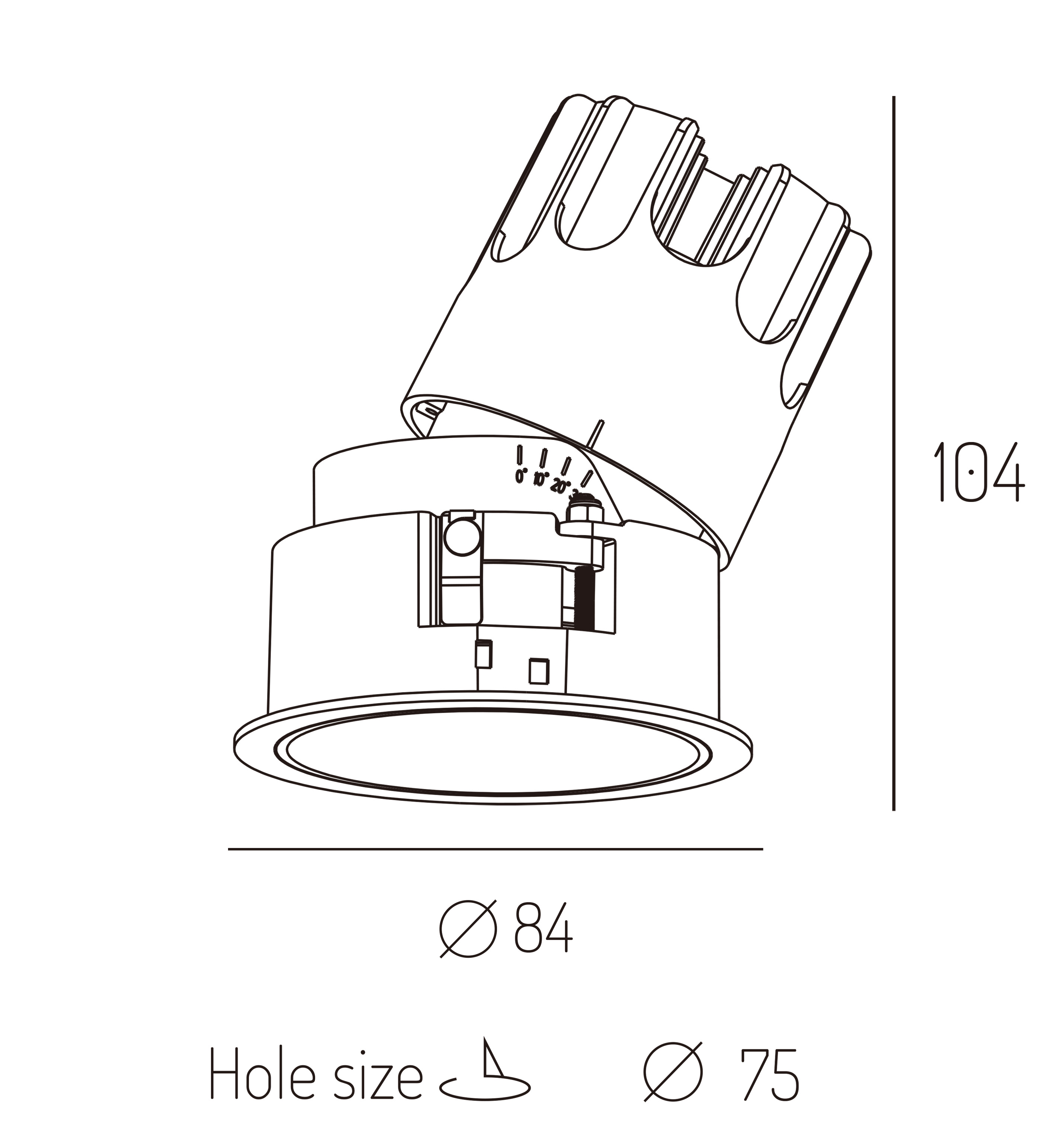

Technical Drawing
product data
  • Fixture Power
    10W/13W
  • Driving Current
    250mA/350mA
  • Lumen Output
    450lm/580lm
  • Fixture Efficiency
    40.0lm/w
    44.6lm/w
  • CRI
    90
  • Color Temperature
    2700K/3000K/4000K

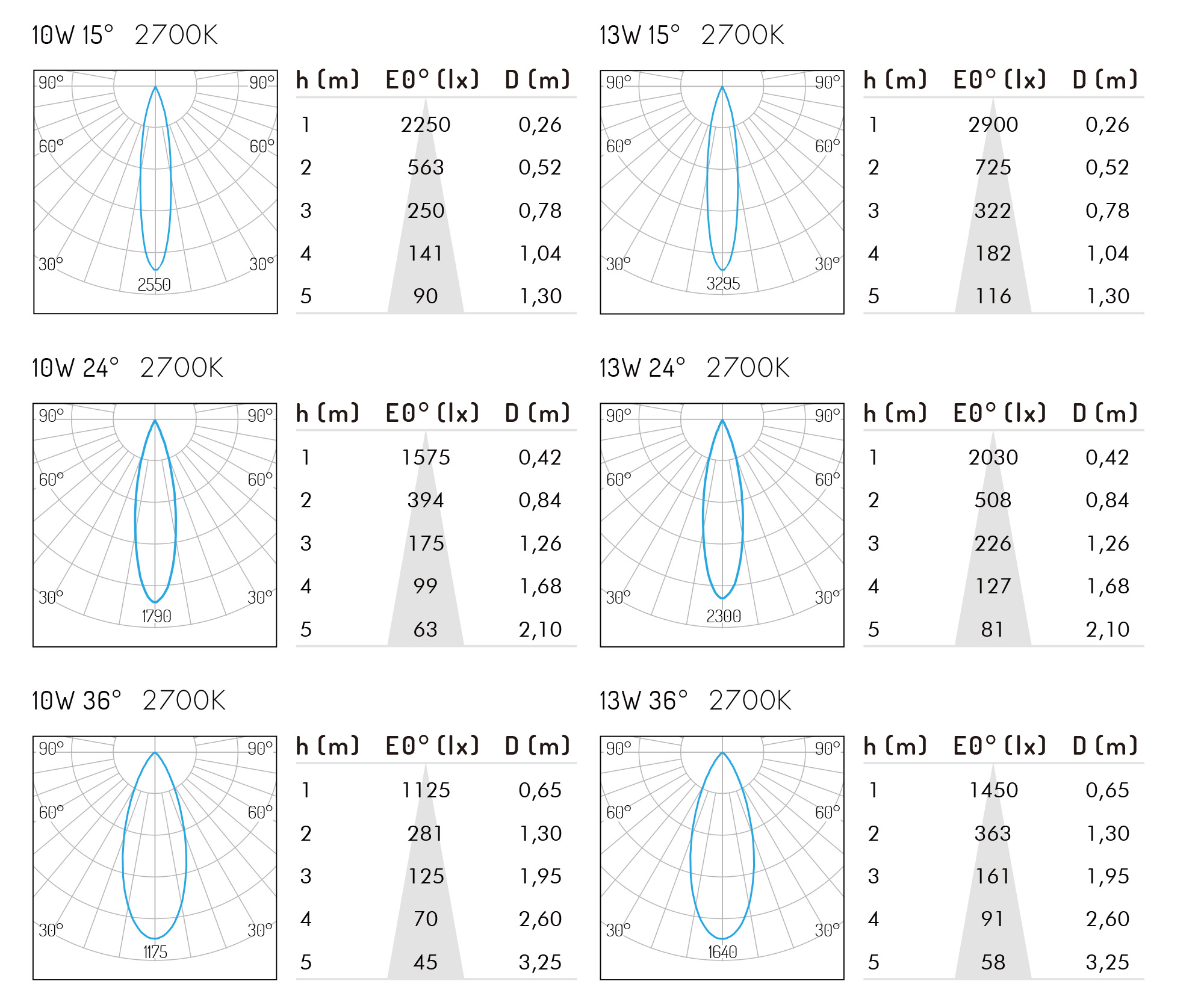

LIGHT DISTRIBUTION
  • Beam Angle
    15°/24°/36°
  • Source Type
    Citizen COB LED
  • Control Method
    Not Dimmable
    Phase-cut Dimming
    0-10V Dimming
    DALI Dimming
  • MacAdam Ellipse
    <3 SDCM
  • Product Dimensions
    Ø84*H104mm
  • Hole Size
    Ø75mm
  • Weight
    0.49kg
  • IP Rating
    IP20
  • Housing Material
    Die-cast Aluminium
  • Housing Color
    RAL9006
    White Aluminium
    RAL9016
    Traffic White
    RAL9005
    Jet Black
Reflector Colorv
Optical Accessories
Filter codes by
No.
All No.
Power
All Power
10W
13W
Current
All Current
250mA
350mA
CCT
All CCT
2700K
3000K
4000K
Flux
All Flux
450lm
580lm
Beam
All Beam
15°
24°
36°
Length
All Length
LED Qty.
All LED Qty.
Cut out
All Cut out
Size
All Size
Type
All Type
Voltage
All Voltage
No.
Power
Current
CCT
Flux
Beam
Length
LED Qty.
Cut out
Size
Type
Voltage
10W
250mA
2700K
450lm
15°
10W
250mA
3000K
450lm
15°
10W
250mA
4000K
450lm
15°
10W
250mA
2700K
450lm
24°
10W
250mA
3000K
450lm
24°
10W
250mA
4000K
450lm
24°
10W
250mA
2700K
450lm
36°
10W
250mA
3000K
450lm
36°
10W
250mA
4000K
450lm
36°
13W
350mA
2700K
580lm
15°
13W
350mA
3000K
580lm
15°
13W
350mA
4000K
580lm
15°
13W
350mA
2700K
580lm
24°
13W
350mA
3000K
580lm
24°
13W
350mA
4000K
580lm
24°
13W
350mA
2700K
580lm
36°
13W
350mA
3000K
580lm
36°
13W
350mA
4000K
580lm
36°
